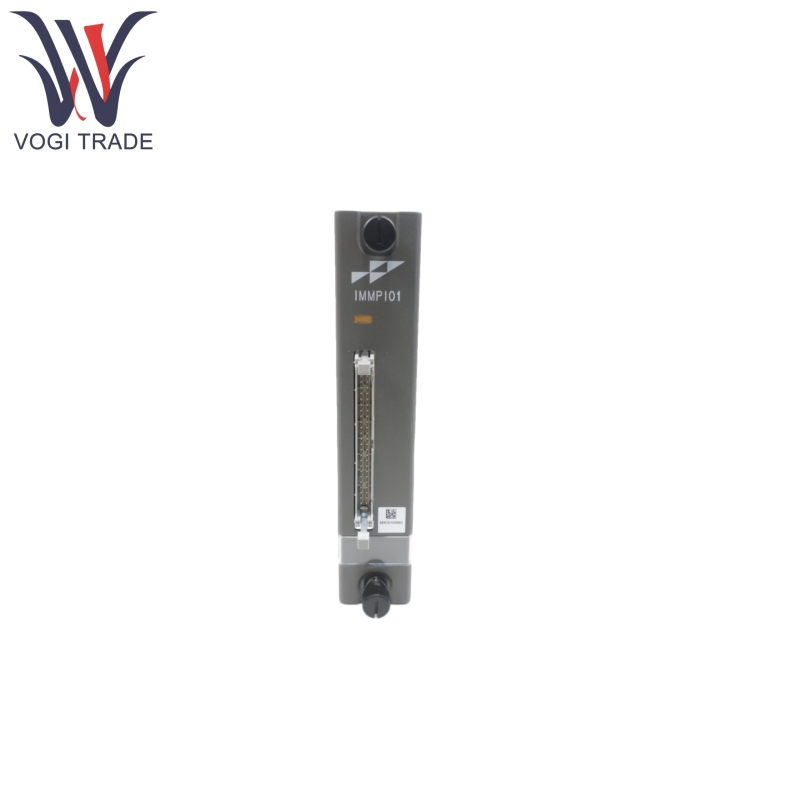

Brand: ABB Description: Multifunction Processor Interface Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB IMMPI01 is designed to connect main controller to field devices, enabling data exchange and protocol conversion. Its core function is to serve as an I/O interface hub, supporting multiple communication protocols and compatible with various brands of PLCs, sensors, actuators, and other devices. It is suitable for complex industrial environments such as petroleum, power, and chemical industries.
|
Manufacture |
ABB |
|
Model Number |
IMMPI01 |
|
Ordering Number |
IMMPI01 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
34*18*6cm |
|
Weight |
0.4kg |
Product Features
ABB IMMPI01 supports popular industrial protocols like Modbus, Profibus DP, and HART, making it easy to integrate into third-party devices.
ABB IMMPI01 is available for RS-232-C/SCSI interface, low data transmission delay, used for those applications with high demands on real-time.
ABB IMMPI01 is resistant to vibration, shock, and extreme temperatures, meeting the long-term operational requirements of industrial environments. The configuration interface is intuitive and supports plug-and-play functionality, reducing the complexity of debugging.

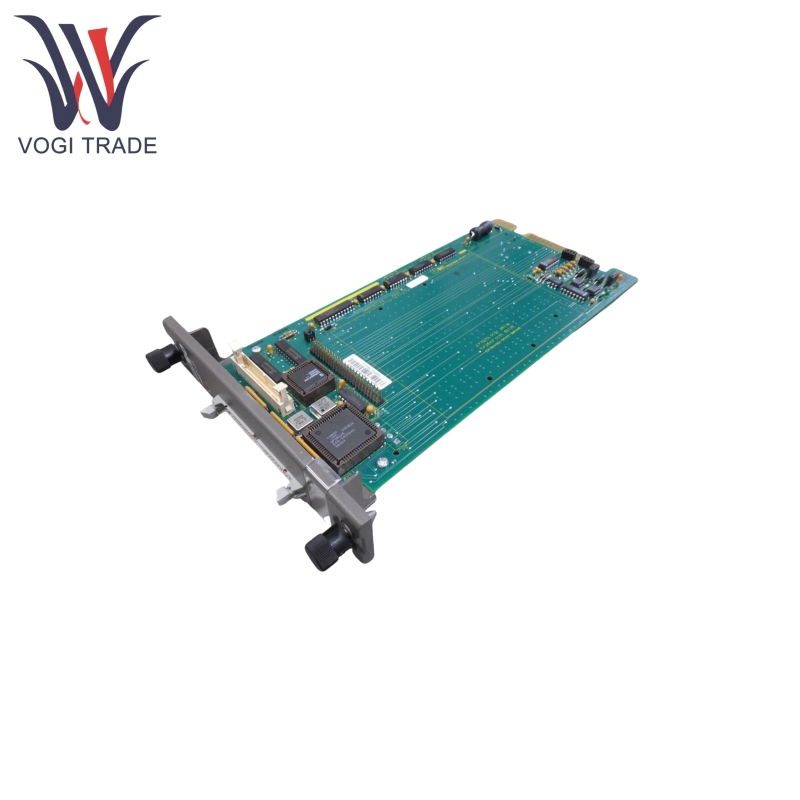

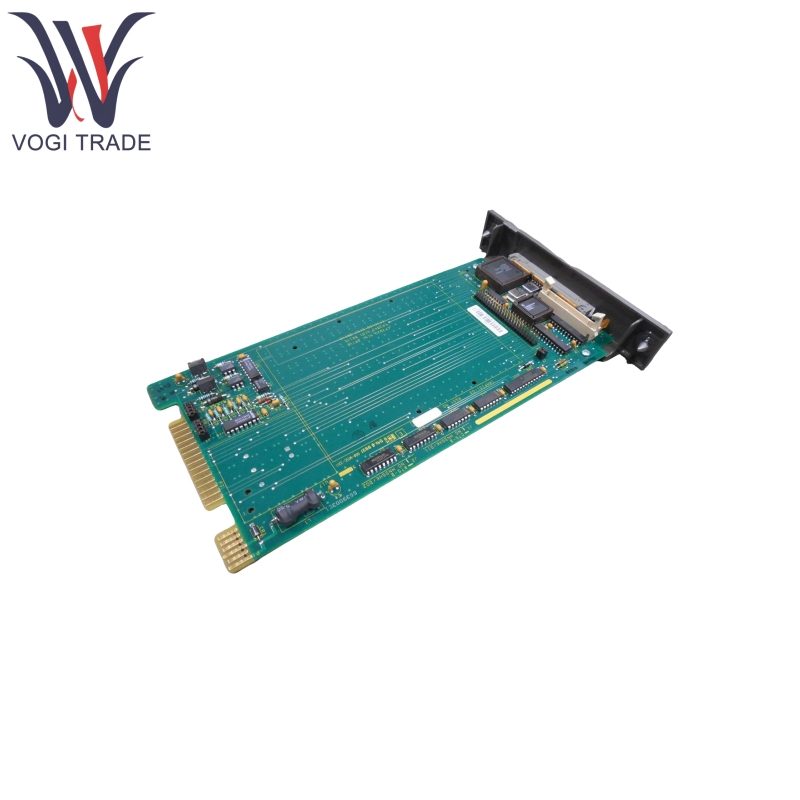

The three card edge connectors (P1, P3, P6) are used for power supply, terminal unit, and INICT03 module connections, respectively.
Product Using Principle
ABB IMMPI01 can collect signals from field devices and transmit them to the module via RS-232 or SCSI interfaces.
It can convert raw signals into a format recognizable by the Infi 90 DCS system, or vice versa.
The processed data is sent to the INICT03 module via the P6 connector to enable communication with the main controller.
The P3 connector connects to the NTMP01 terminal unit for signal isolation or expansion.
Product Compatible Equipment
ABB System:
ABB IMMPI01 can be seamlessly integrated with Bailey Infi 90 DCS core components (such as INICT03 modules, NTMP01 terminal units).
Third-party devices:
ABB IMMPI01 supports connection to PLCs, HMIs, or drives from brands such as Siemens and Rockwell via Modbus or Profibus DP.
Expansion modules:
ABB IMMPI01 can be expanded with analog/digital I/O modules (such as the IMASM01) to enhance system functionality.
