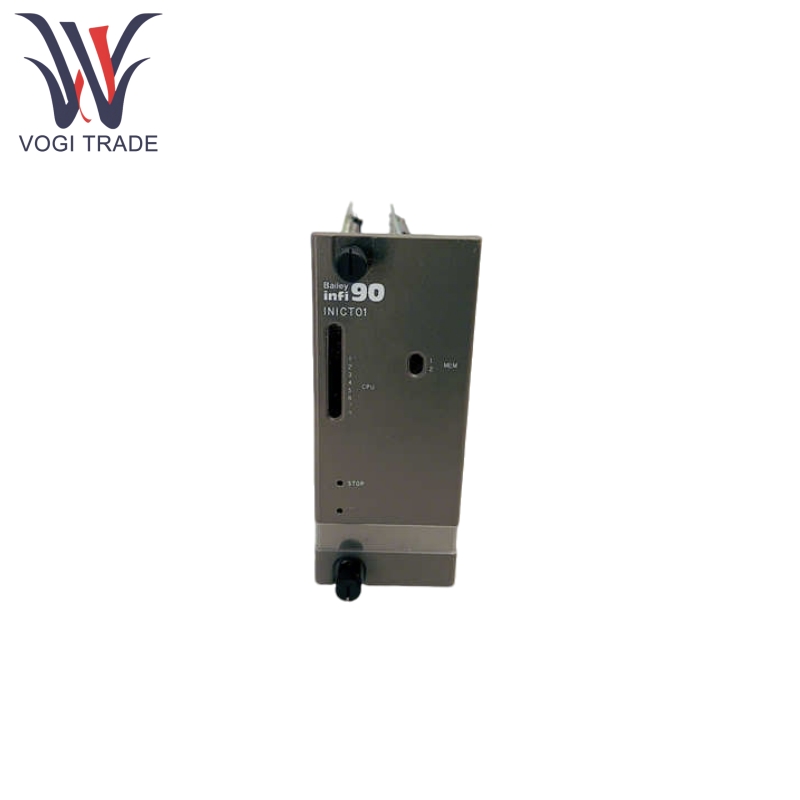

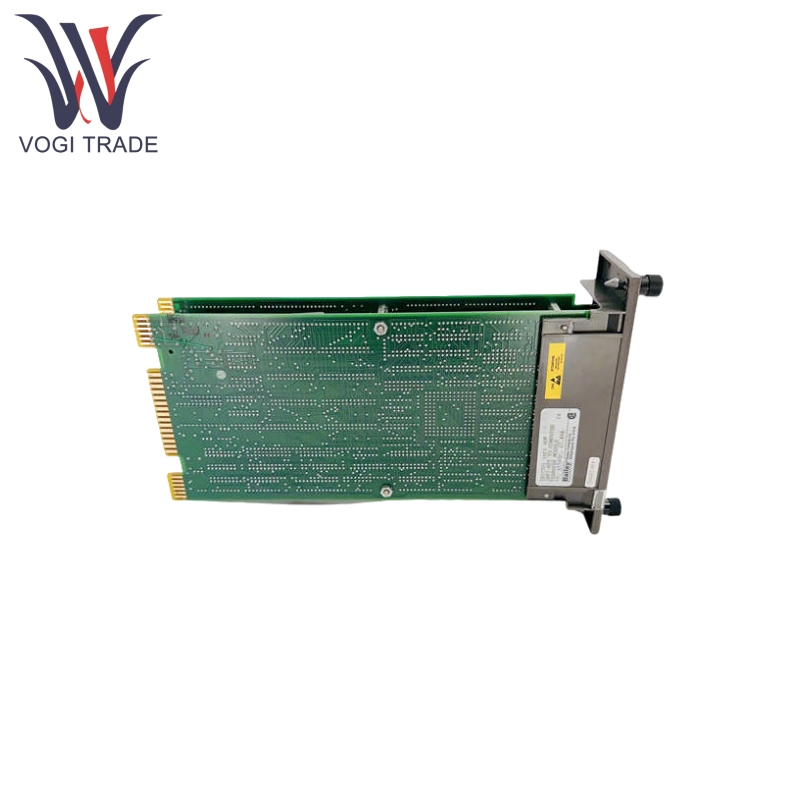

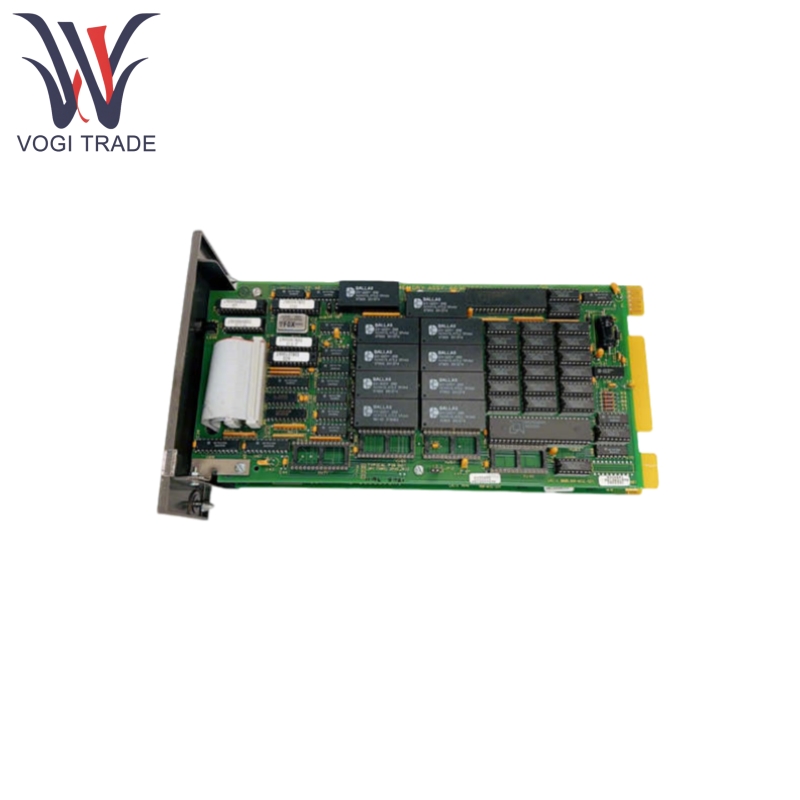

Brand: ABB Description: Computer Transfer Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB INICT01 can convert the proprietary protocol of the INFI-Net network into a computer-recognizable RS-232 protocol, supporting two-way data interaction, also can transmit field device data to the monitoring terminal in real time and send control commands back to the INFI-Net network to achieve closed-loop control.
|
Manufacture |
ABB |
|
Model Number |
INICT01 |
|
Ordering Number |
INICT01 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
12*12*4cm |
|
Weight |
0.4kg |
Product Features
ABB INICT01 input/output channels feature 500V AC isolation, effectively resisting surges and electromagnetic interference in industrial environments.
ABB INICT01 incorporates overvoltage/overcurrent protection circuits and supports dual power supply redundancy input (24V DC ±10%), ensuring continuous operation in critical scenarios.
ABB INICT01 features DIP switch settings, with the CPU board equipped with three sets of DIP switches, allowing direct configuration of communication parameters such as baud rate (50-19200 bps), parity bit, and data bit length without software intervention.
ABB INICT01 has 256KB ROM for firmware storage, 512KB RAM for real-time data processing, and 80KB NVRAM to preserve configuration information that is not lost during power outages.
ABB INICT01 has dual RS-232 ports supporting full-duplex communication, enabling simultaneous connection to a host computer and a redundant controller, with a baud rate range of 50-19200 bps.
ABB INICT01 supports Infi 90 and Modbus RTU protocols, and can be expanded to support Profibus, EtherNet/IP, and other protocols via a gateway.
ABB INICT01 displays eight status conditions, including power, communication, and error, via independent LEDs, and can be used with the front panel stop button for quick fault localization.
ABB INICT01 supports serial port output of runtime logs, including communication error codes, data throughput, and other diagnostic information.
Product Using Principle
ABB INICT01 parses the Infi 90 protocol via a dedicated interface chip to extract process variables, setpoints, and other data frames.
It can encapsulate raw data into RS-232-compatible ASCII or binary formats, supporting Modbus RTU, custom protocols, and other output formats.
Control commands are transmitted in reverse via the same path, supporting batch data writing and single-command triggering.
It can use ABB AC31GRAF programming software for module parameter settings, communication link debugging, and data mapping definitions.
It provides virtual serial port drivers for Windows/Linux, supporting industrial communication middleware such as OPC UA and OPC DA.
Product Parameter
The following detail is for ABB INICT01 Computer Transfer Module.
|
Parameter Category |
Specific Specifications |
|
Power Requirement |
24V DC (±10%), Power Consumption ≤ 500mW Auxiliary Power: +5V DC @ 4.2A, +15V DC @ 40mA, -15V DC @ 20mA |
|
Communication Performance |
Data Transmission Rate: 50-19200bps, Latency ≤ 10ms, Supports Asynchronous Communication Mode with 9 Data Bits + 1 Stop Bit |
|
Environmental Adaptability |
Operating Temperature: -20°C ~ 60°C Storage Temperature: -40°C ~ 85°C Humidity: 5% ~ 95% (Non-condensing) Protection Class: IP20 |
|
I/O Characteristics |
Digital Input: 24V DC Photoelectric Isolation Analog Output: 4-20mA (±0.1% FS) Relay Output: 250V AC / 5A |
