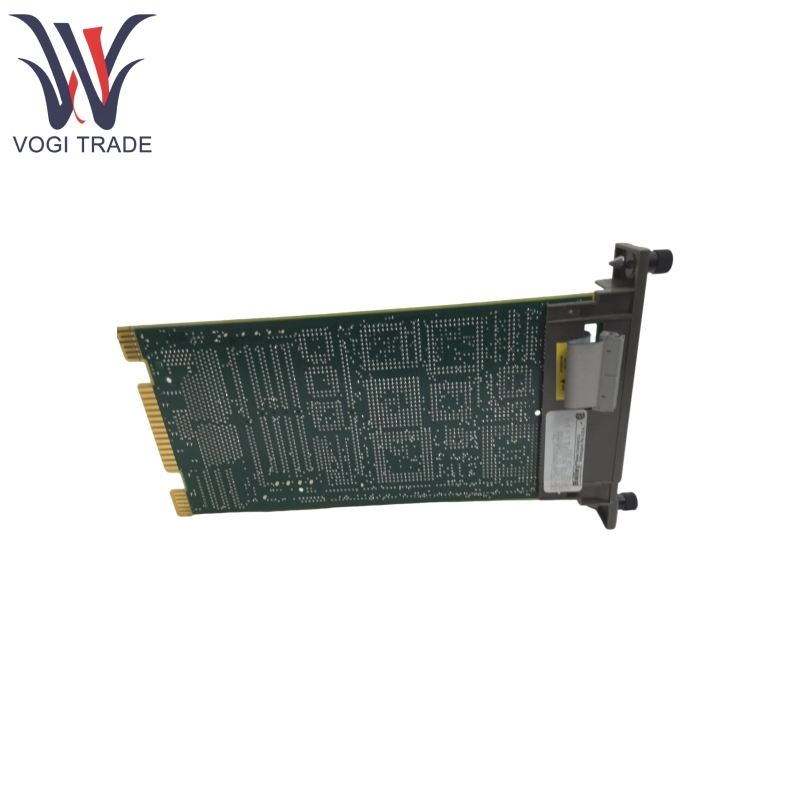

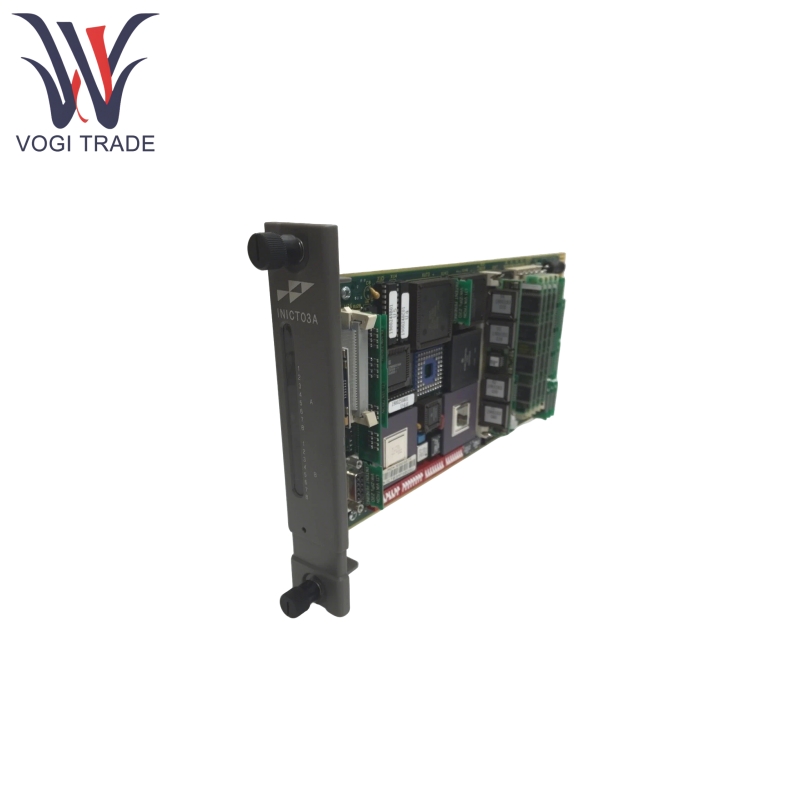

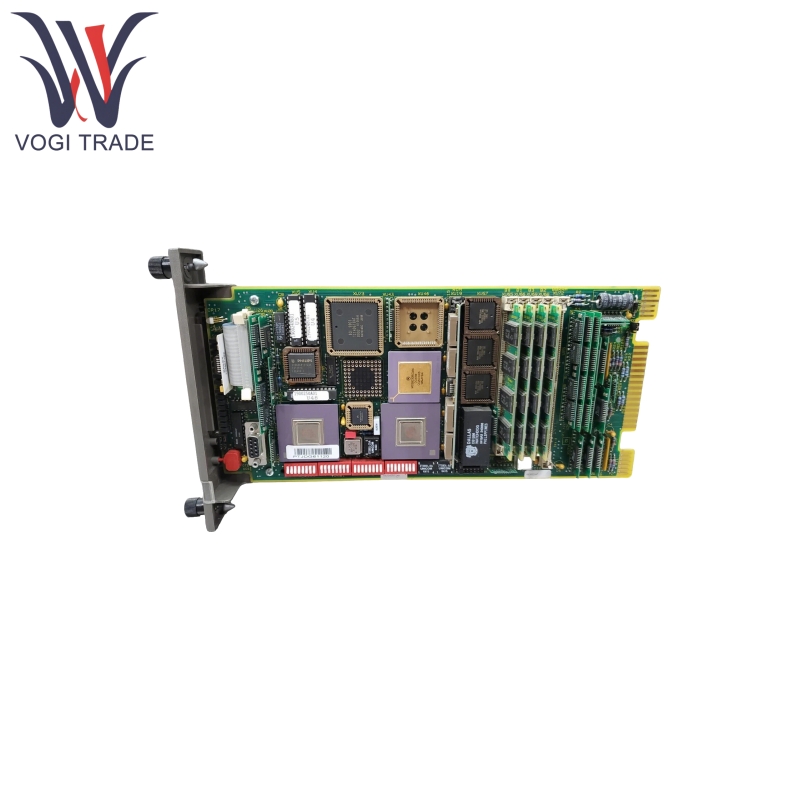

Brand: ABB Description: Computer Transfer Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB INICT03A core function is to establish a high-speed data bridge between industrial networks and computer systems, enabling real-time data interaction and system monitoring. Its design goal is to enhance the compatibility and flexibility of industrial control systems, particularly in complex scenarios requiring multi-device collaboration.
|
Manufacture |
ABB |
|
Model Number |
INICT03A |
|
Ordering Number |
INICT03A |
|
Catalog |
Bailey INFI 90 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
36*28*14cm |
|
Weight |
0.8kg |
Product Features
ABB INICT03A supports industrial protocols such as Modbus RTU, CANopen, DeviceNet, and RS-232/485, enabling direct connection to PLCs, HMIs, or third-party devices, thereby eliminating the need for protocol conversion.
ABB INICT03A features an RS-232 baud rate, which is user-selectable, with a maximum of 19.2 kbaud, meeting the communication needs of low-speed devices. It achieves a data rate of up to 4 MB/sec, making it suitable for high-speed data acquisition.
ABB INICT03A supports dual power input, requiring an external redundant module to prevent system failure caused by a single point of failure.
ABB INICT03A memory configuration includes 512 KB ROM (for firmware storage) + 2 MB RAM (for runtime cache), capable of processing 30,000 tag definitions simultaneously, meeting the demands of large-scale data monitoring.
ABB INICT03A has a data transmission latency of less than 10 ms, making it suitable for scenarios requiring rapid decision-making. It can connect to multiple Infi-Net loops simultaneously to achieve cross-subnet data aggregation.
ABB INICT03A can be quickly integrated into existing systems via an RJ45 interface and works seamlessly with Infi 90 series modules without complex configuration.
Product Using Principle
The workflow of ABB INICT03A can be divided into three stages, data acquisition, protocol conversion, and command execution.
Data Acquisition:
Real-time data from field devices is received via the Infi-Net bus, with the data format adhering to the Infi 90 protocol.
Protocol Conversion:
The built-in processor converts the Infi-Net protocol into a universal protocol recognizable by computers and transmits it to the host computer via an RS-232 or SCSI interface.
Additionally, the module can reverse-convert control commands sent by the computer into Infi-Net commands and transmit them to the actuator.
Command Execution:
The data interaction process is managed by the INIS 01 module to ensure the stability of the communication link. If the primary link fails, the redundant design automatically switches to the backup channel.
Product Application
In the chemical industry, ABB INICT03A can collect real-time temperature and pressure data from reaction kettles and transmit it to the SCADA system via INICT03A to achieve dynamic adjustment of process parameters.
ABB INICT03A can connect the turbine control system and engineer station of a thermal power plant to support remote start/stop and load distribution operations with a response time of <50ms.
In automotive production lines, ABB INICT03A can transmit robot controller status data to the MES system, enabling equipment health prediction and preventive maintenance.
As a bridge module, ABB INICT03A helps enterprises integrate traditional DCS systems into modern industrial IoT platforms, avoiding hardware replacement costs.
