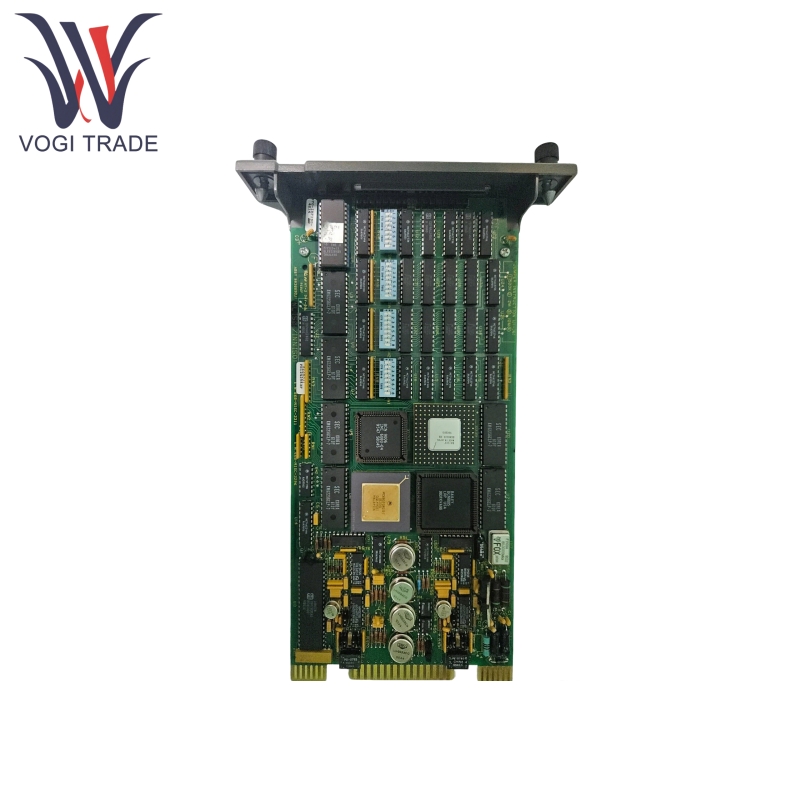

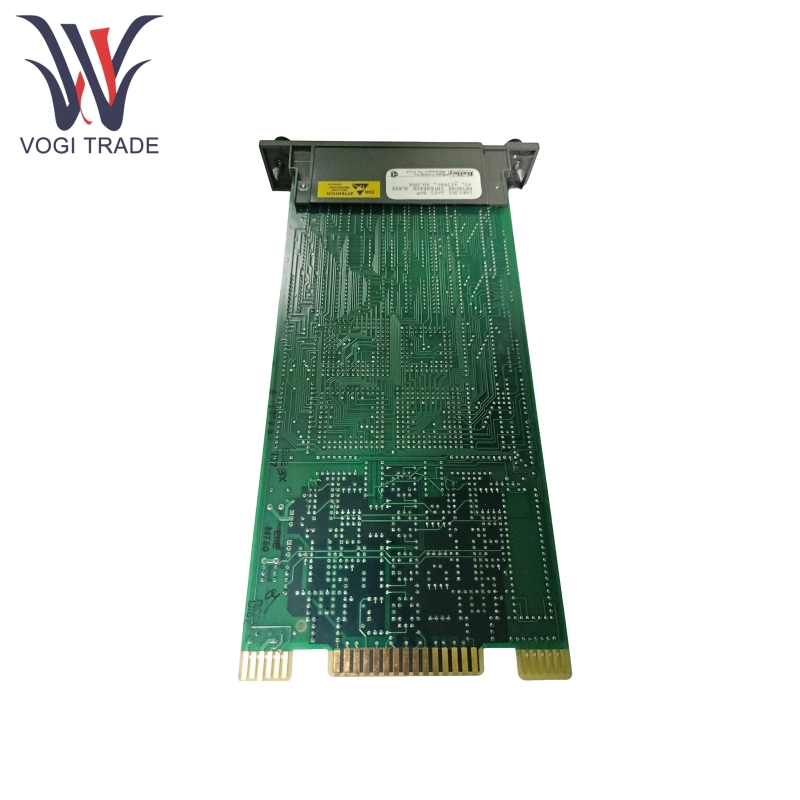

Brand: ABB Description: Network Interface Slave Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB INNIS01 is primarily used to achieve seamless connectivity between process control units and the INFI-NET communication system. Together with the INNP11 network processing module, it forms the core interface, enabling the PCU to connect to the INFI-NET high-speed data ring network and support real-time data interaction with other nodes on the loop.
|
Manufacture |
ABB |
|
Model Number |
INNIS01 |
|
Ordering Number |
INNIS01 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
32*18*4cm |
|
Weight |
0.6kg |
Product Features
ABB INNIS01 supports INFI-NET unidirectional high-speed serial communication with selectable speeds of 10 Mbps or 2 Mbps to meet real-time data transmission requirements.
In the event of a main module failure, the backup module automatically takes over communication, ensuring uninterrupted system operation.
ABB INNIS01 incorporates cyclic redundancy check and checksum mechanisms to ensure data integrity.
ABB INNIS01 supports online module replacement without downtime, significantly reducing maintenance costs and system downtime.
ABB INNIS01 is compatible with industrial protocols such as Modbus TCP/IP, IEC 61850, and DNP 3, enabling integration with third-party devices.
ABB INNIS01 is compatible with the full range of ABB control systems and supports real-time synchronization across the entire plant when used in conjunction with the INTKM01 clock module.

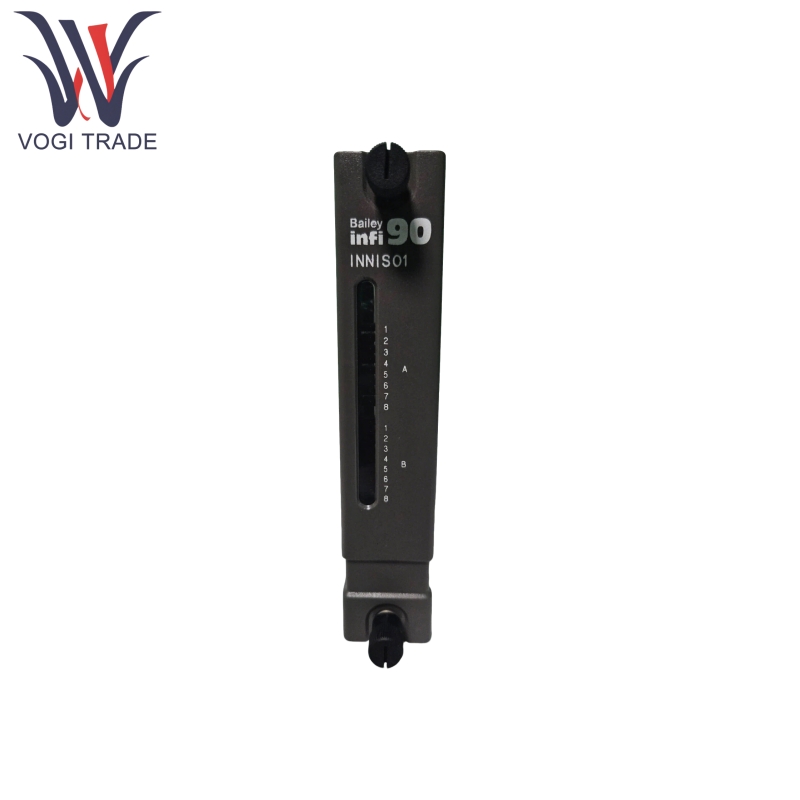

The front panel features 16 status indicator lights that display communication status, error codes, and event counts in real time.
ABB INNIS01 communicates with control modules via an I/O expansion bus, supporting remote configuration and fault diagnosis.
Product Using Principle
PCU control commands are transmitted to INNIS01 via the I/O expansion bus, encapsulated into INFI-NET format by the microprocessor communication circuit, and sent to the ring network via coaxial cable.
When receiving data, ABB INNIS01 parses the ring network signals, converts them into a format recognizable by the PCU, and feeds them back to the control module via the control channel.
ABB INNIS01 works in conjunction with the INTKM01 clock module to establish a time synchronization chain through the NTST01 terminal unit, providing μs-level high-precision timestamps for all plant equipment, suitable for scenarios such as event sequence recording.
Two INNIS01 modules and two INNP11 modules form a redundant pair. The primary module periodically sends a “heartbeat signal,” while the standby module monitors in real-time. If the heartbeat is interrupted, the standby module takes over within 50 ms.
Product Application
ABB INNIS01 connects the excitation controller to the operator station, enabling real-time monitoring and fault diagnosis of the generator set.
In smart grids, ABB INNIS01 supports grid connection control and data acquisition for distributed energy sources (photovoltaic, wind power).
In process industries such as petrochemicals and pharmaceuticals, ABB INNIS01 serves as the communication hub for DCS systems, connecting field instruments, PLCs, and upper-level computers.
In automotive production lines, ABB INNIS01 coordinates robots, servo systems, and vision inspection equipment to achieve flexible manufacturing.
When used with the IMSET01/IMSED01 digital input modules, ABB INNIS01 collects switch signals with a 1 ms resolution and generates time-stamped event logs via a time synchronization chain, which are used for fault tracing and compliance audits.
