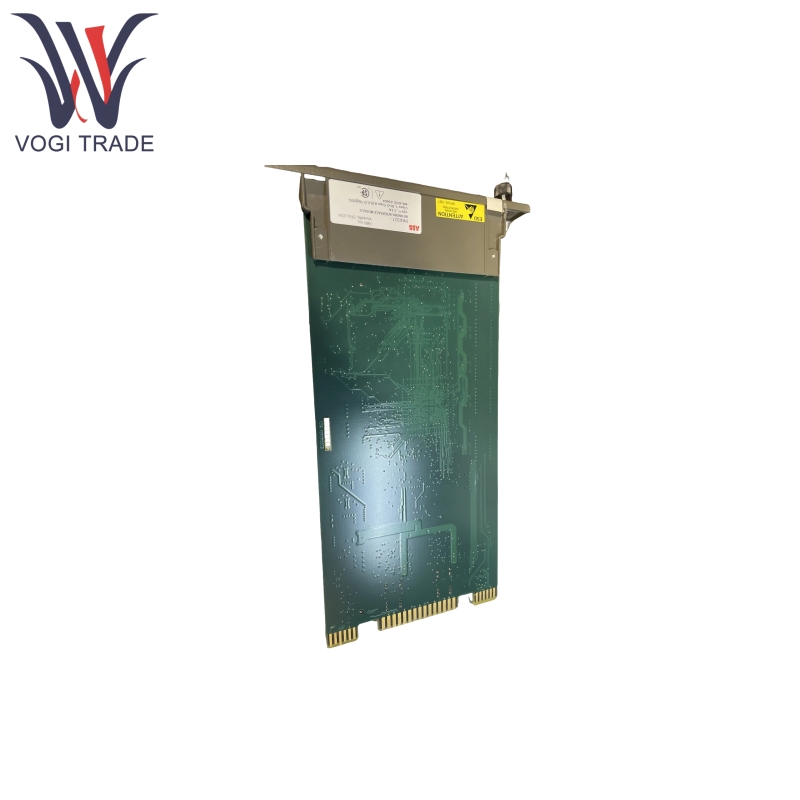

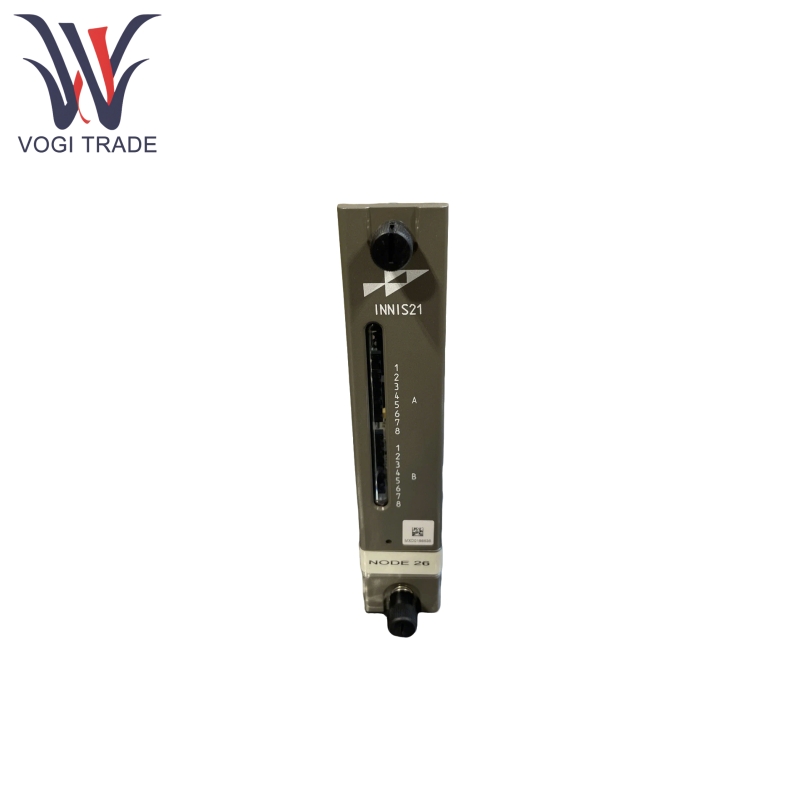

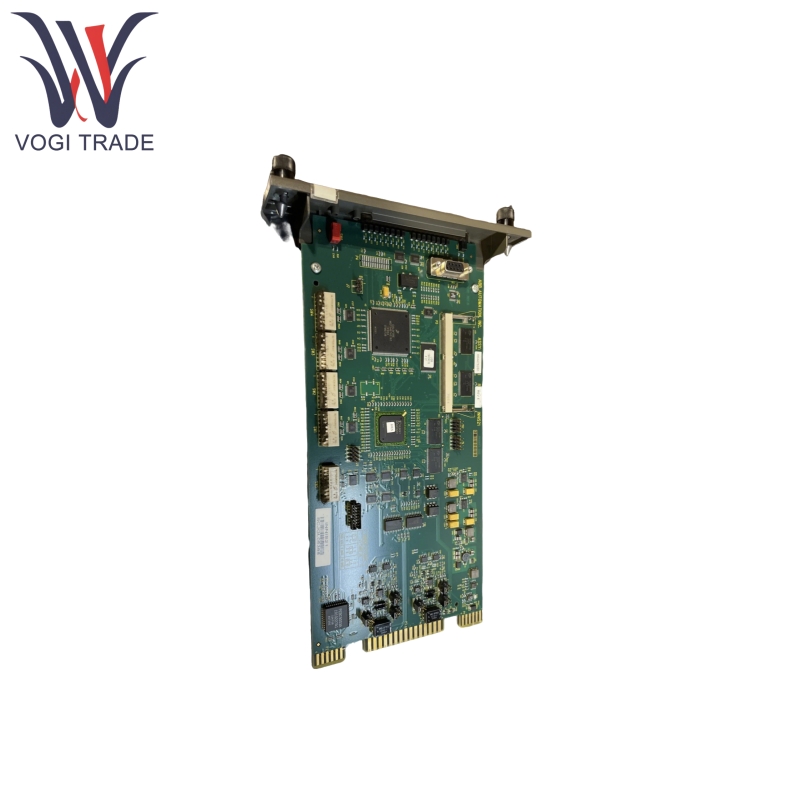

Brand: ABB Description: Network Interface Slave Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB INNIS21 core function is to serve as an intelligent communication bridge, seamlessly connecting field devices to the Cnet communication network to enable data exchange and real-time control within distributed control systems. This module, featuring a microprocessor architecture and modular design, supports protocol conversion, data routing, and device collaboration in complex industrial environments, making it particularly suitable for large-scale industrial projects requiring high reliability and scalability.
|
Manufacture |
ABB |
|
Model Number |
INNIS21 |
|
Ordering Number |
INNIS21 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
34*18*6cm |
|
Weight |
0.4kg |
Product Features
ABB INNIS21 features a dedicated communication processor that supports three communication rates, 10Mbps, 2Mbps, and 0.5Mbps, enabling real-time processing of high-frequency data interactions in industrial environments. Through the Profit Loop algorithm, system stability is improved by 30% compared to traditional PID control, making it particularly suitable for scenarios with extremely high control precision requirements, such as chemical and power industries.
ABB INNIS21 supports hot-swappable modules, enabling maintenance without downtime, significantly reducing the risk of production interruptions. It also provides redundant communication interfaces to ensure uninterrupted data transmission even in the event of a single-link failure.
ABB INNIS21 is equipped with Ethernet, RS485, and Profibus DP interfaces, natively supporting mainstream protocols such as Modbus, Profibus, and DeviceNet, enabling seamless integration with third-party devices.
ABB INNIS21 supports various types of expansion modules, including
Digital I/O modules: High-density input/output nodes suitable for discrete device control.
Analog I/O modules: 12-bit resolution, supporting the acquisition of continuous variables such as temperature and pressure.
Special-function modules: Such as counters and pulse output modules, meeting motion control requirements.
Product Using Principle
ABB INNIS21 serves as the front-end interface for the Cnet network, connecting to the Cnet bus via a microprocessor communication circuit and collaborating with the IN NPM 22 module through a dedicated I/O expansion bus. Its core function is to convert field device protocols into a format recognizable by the Cnet network, enabling cross-device data interaction.
ABB INNIS21 receives sensor signals, performs analog-to-digital conversion, and parses protocols, achieves real-time mapping of Modbus/Profibus to Cnet protocols via its built-in processor, control commands are sent to actuators via expansion modules to form a closed-loop control system.
Product Application
ABB INNIS21 can connect the reactor temperature sensor to the control valve to achieve precise temperature and flow interlocking control.
It can integrate the turbine monitoring system to monitor parameters such as vibration and displacement in real time, ensuring the safe operation of the unit.
It can coordinate robotic arms, conveyor lines, and visual inspection equipment to achieve flexible production.
It can synchronize multi-axis motion control through high-speed data processing to improve packaging accuracy and efficiency.
It can connect to distributed energy sources to enable real-time power generation monitoring and load scheduling.
It can optimize pump and valve control logic to reduce energy consumption and enhance system reliability.
