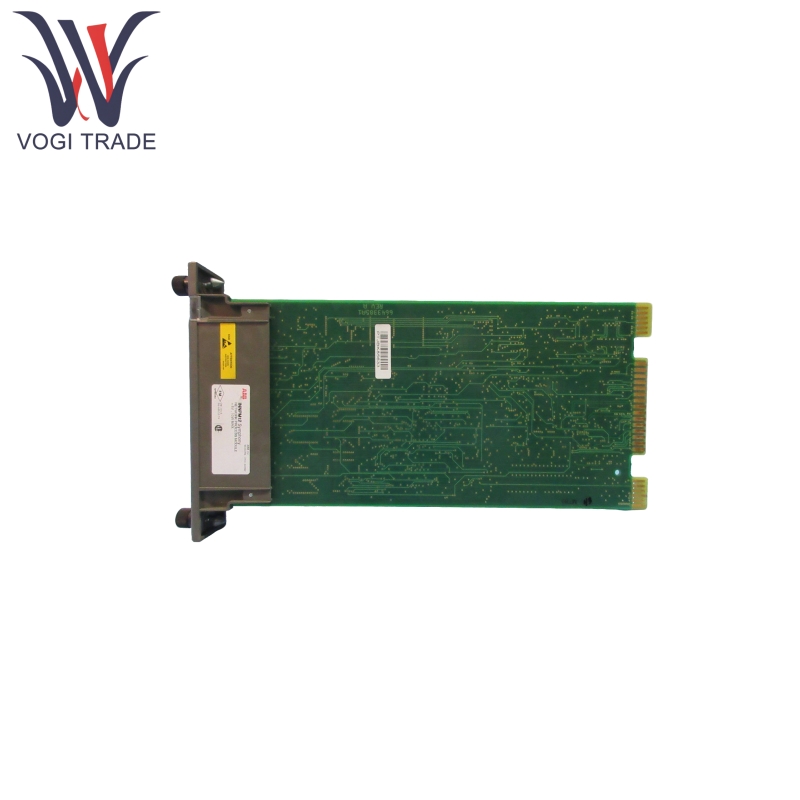

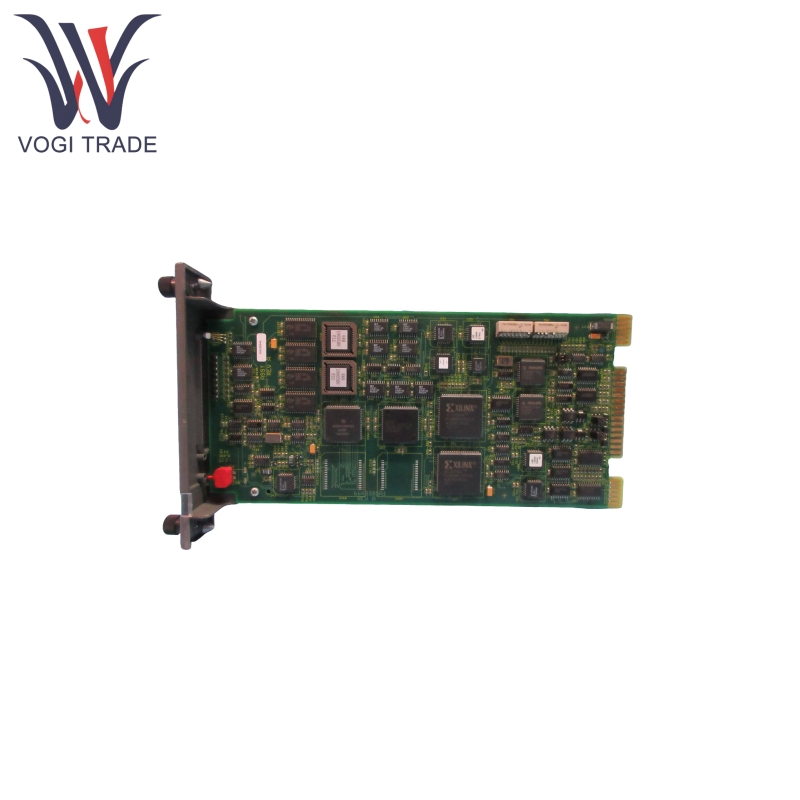

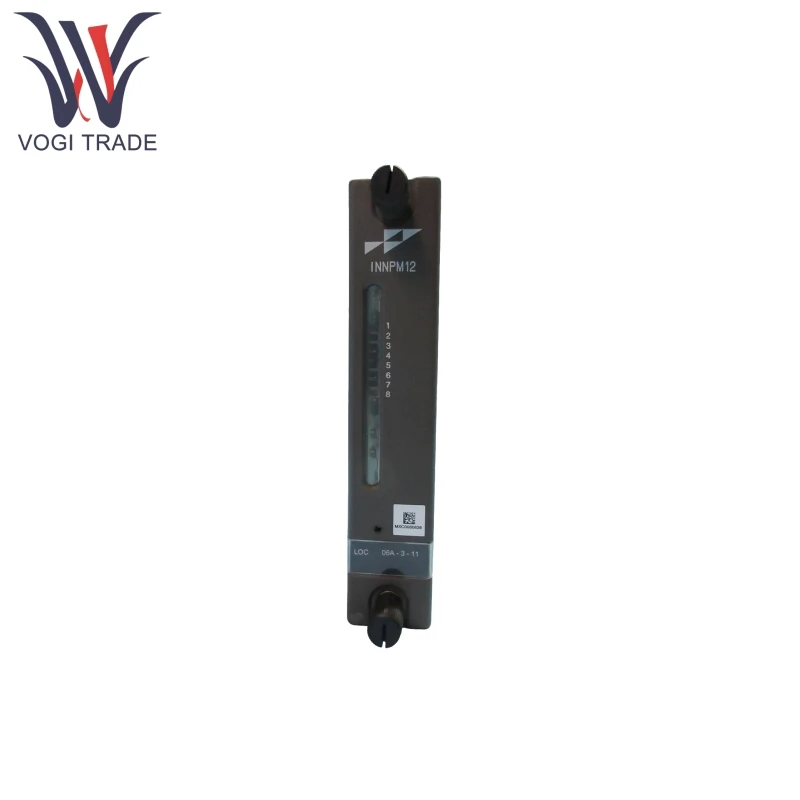

Brand: ABB Description: Network Processor Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB INNPM12 works in conjunction with the INNIS01 network interface module to act as a gateway between Cnet and Controlway. Its core function is to hold the Harmony Control Unit database and handle communications between the rack controllers on Controlway and the INNIS01 module. It is a key component for connecting the Harmony Control Unit to the Cnet network.
|
Manufacture |
ABB |
|
Model Number |
INNPM12 |
|
Ordering Number |
INNPM12 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
22*18*10cm |
|
Weight |
0.4kg |
Product Features
ABB INNPM12 serves as a bridge between Cnet and Controlway, enabling data interaction between the Harmony control unit and the Cnet network. It supports the transmission of on-site input values, status, and configuration parameters, as well as the reception and feedback of control commands.
ABB INNPM12 supports high-reliability design and must be used in conjunction with redundant INNIS01 modules (a full redundant configuration consists of 2 INNIS01 + 2 INNPM12 modules). The secondary INNPM12 module continuously monitors the primary module via a direct ribbon cable. In the event of a primary module failure, it automatically switches to the secondary module to ensure uninterrupted communication.
ABB INNPM12 maintains the database of the Harmony control unit, coordinating information exchange between the controller and the network interface module to ensure data integrity.
Product Using Principle
ABB INNPM12 one side connects to the INNIS01 network interface module, which connects to the Cnet high-speed control network.
ABB INNPM12 the other side is connected to the Controlway bus, enabling communication with the Harmony rack controller and input/output (I/O) devices.
ABB INNPM12 functions as an intermediate gateway, transmitting field data collected by the controller via Cnet to the HSI or computer, while receiving control commands from the HSI and relaying them to the controller, thereby completing the closed-loop process of process monitoring and control.
Product Application
ABB INNPM12 can be used in industrial process control scenarios, such as chemical engineering, power generation, and manufacturing, where data interaction between control units and the central network needs to be achieved.
ABB INNPM12 can be used in critical processes that require high reliability and redundant design to ensure that no data is lost or control is lost in the event of communication interruption.
ABB INNPM12 needs to be implemented through Cnet to achieve plant-wide time synchronization and centralized data monitoring in large control systems.
