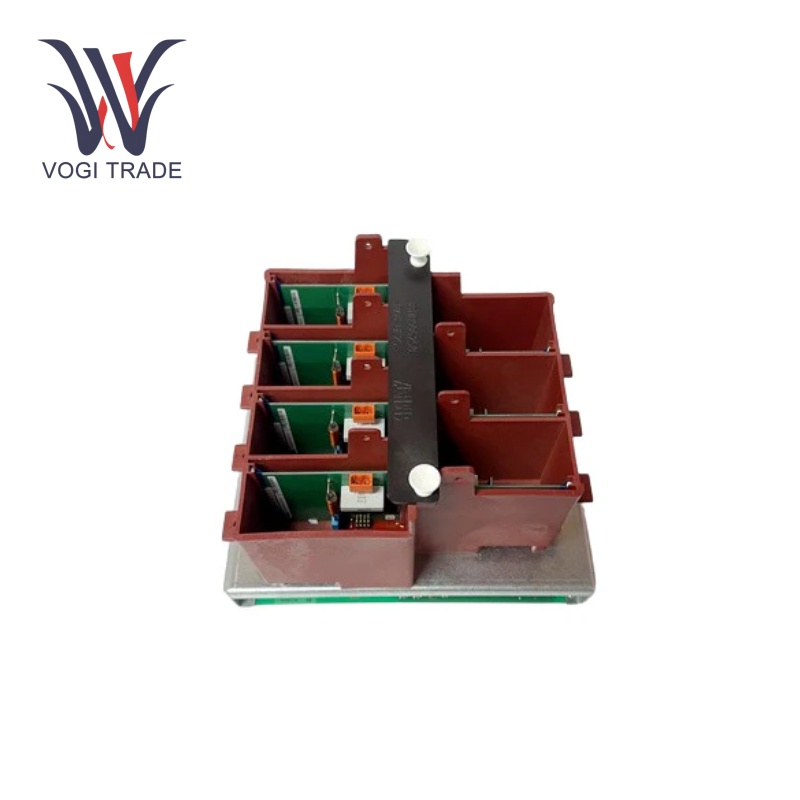

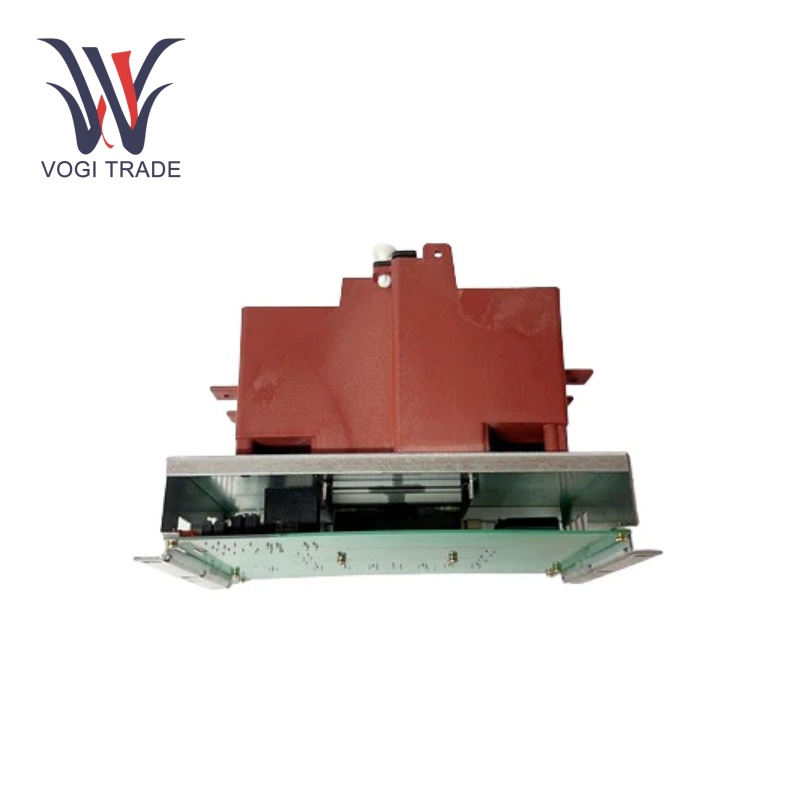

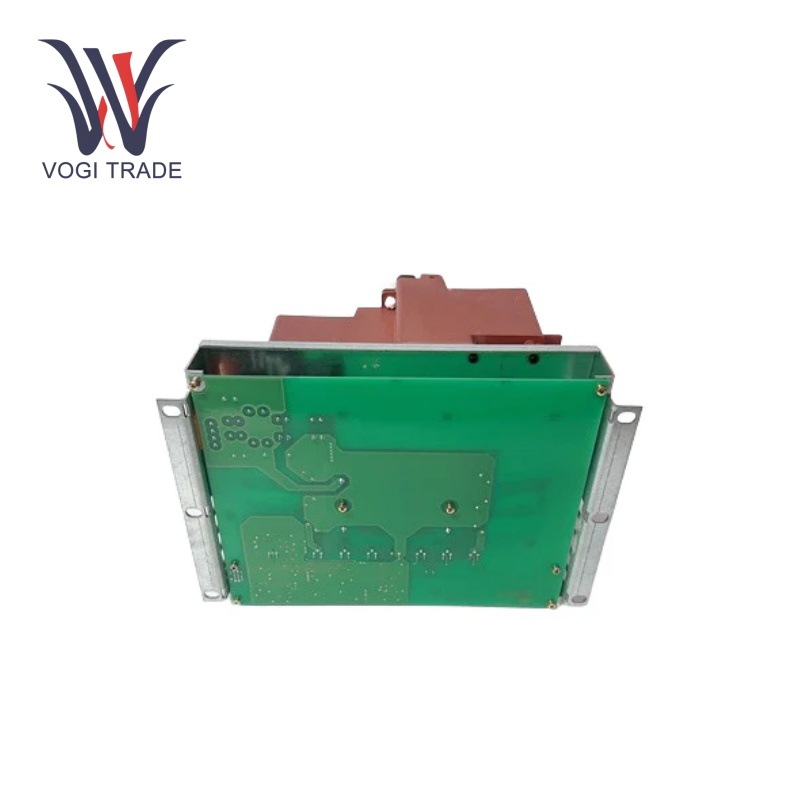

ABB KUC711AE101

Operational Parameters

Input Voltage: 24V DC ±20%

Output Voltage: 24V DC

Maximum Input Current: 5A

Maximum Output Current: 0.5A

Control Precision: ±0.1%

Response Time: Less than 1 millisecond

Operating Temperature Range: -25°C to 55°C

Storage Temperature Range: -40°C to 85°C

Protection Rating: IP67

Communication Protocols: Supports Modbus TCP, Modbus RTU

Product Features

Redundant Communication:Configurable Redundant Communication Allows high speed data exchange in ABB’s Symphony Plus Distributed Control System for reliability in critical industrial environments.

Excitation system control:Controls excitation voltage for rotating equipment, stability and efficiency optimization.

Protective Devices and Diagnostics:ABB KUC711AE101 can monitors fault, takes precautions to protect equipment. Includes real time diagnostics for system health.

Digital Signal Processing:ABB KUC711AE101 employs cutting edge digital signal processing and control algorithms to achieve effective and reliable excitation control, ensuring generators and other equipment operate stably.

Multiple Modes of Control:Flexible excitation control modes supporting the voltage and current control, enabling customization towards specific application requirements.

Protection Features:ABB KUC711AE101 And many protection features that help avoid damage to equipment and ensure safety of the system, such as overcurrent, overvoltage and undervoltage protection.

Programmable Logic:Multiple programming language support allows users to create their own control logic, providing more versatility to the system.

Installation

Preparation: Make sure the installation location is clean, dry, and is not subject to extreme vibration. Ensure the power supply is according to the unit.

To mount:ABB KUC711AE101 can be attached to DIN rail or flat surface with supplied mountings. Please make sure it is fixed strongly so it does not shift when you operate it.

Normally:this wiring-wise means power supply to wire.Where possible use suitably rated cable glands and maintain the required environmental integrity.

Settings: After turning the unit on, use the supplied ABB interface or software to configure the necessary settings. All parameters must be set as per the corresponding application.

Test: After installing the unit, make sure to test that the unit is working properly, and that all the connections are secure.

Application range

Power Generation Plants: Greener burning generator excitation systems to keep steady state voltage and frequency outputs, reducing any grid instabilities.

Industrial Automation:ABB KUC711AE101 Used in distributed control systems for accurate control and monitoring of industrial processes.

Energy Sector: Used in facilities such as hydroelectric, thermal and wind farms, ensures efficient and reliable power production.

Infrastructure management: Used in automated control and monitoring of water treatment and wastewater management systems.

Troubleshooting

Regular Diagnostics: Use the controller's integrated diagnostic features to track system status and detect possible issues before they worsen.

Regular Firmware Updates: Always update the controller firmware for latest feature and security updates.

Ease Check: Inspect all electrical connections and communication interfaces periodically to ensure they are secure and in good condition.

Environmental Consideration: Keep the operating environment within specified temperature and humidity limits to avoid overheating or moisture related issues
