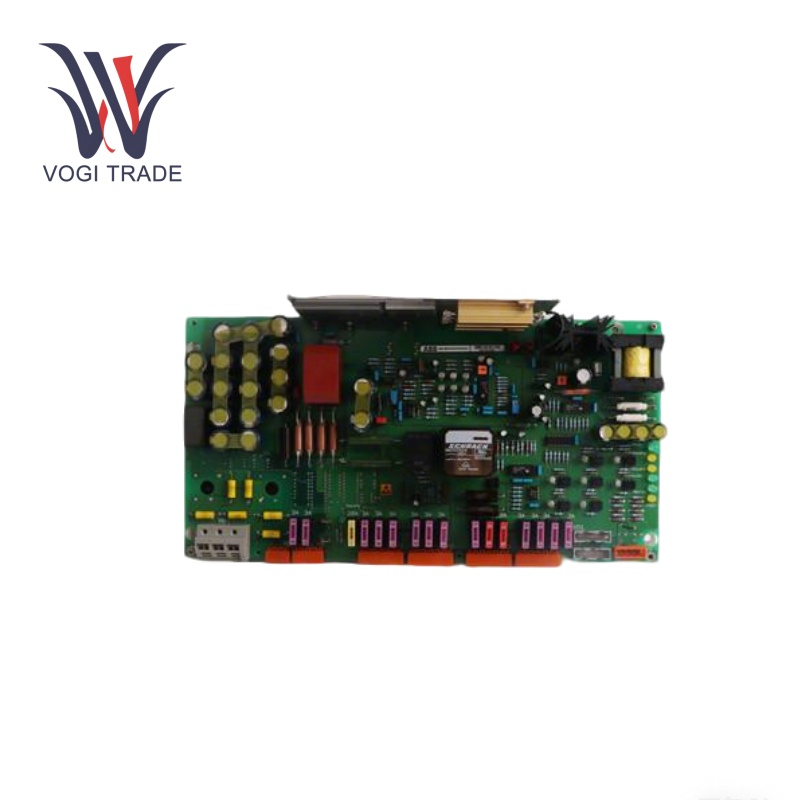

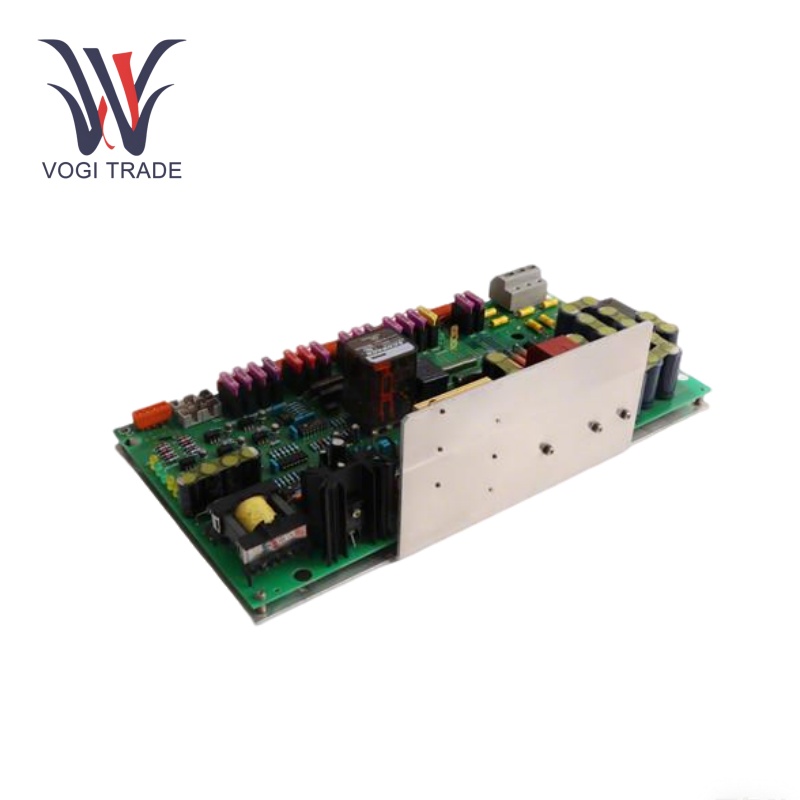

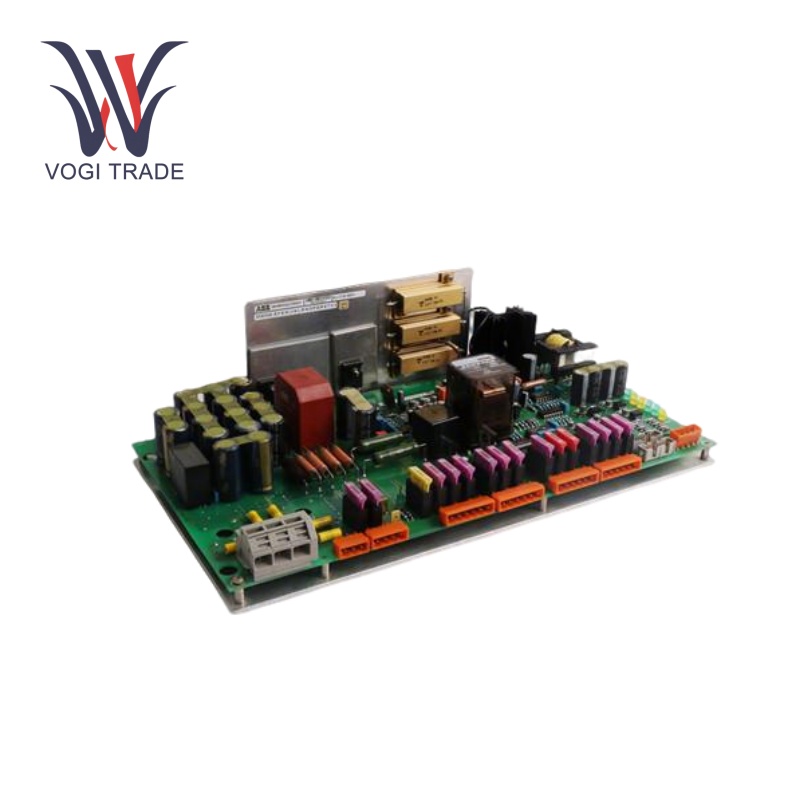

ABB KUC720AE01

Operational Parameters

Input Voltage Range: 85 to 264 VAC

Input Current: 500 mA

Output Voltage: 24 VDC

Output Power: 360 W

Operating Temperature Range: 0°C to 55°C

Storage Temperature Range: -40°C to 85°C

Humidity: 5% to 95% RH, non-condensing

Product Features

Precision Control:ABB KUC720AE01 supports very high precision, which is critical for ensuring the quality of performance at the most relevant places in the chain.

User Friendly Interface:ABB KUC720AE01 features a user-friendly interface that is easy to configure and monitor without requiring excessive training.

Industrial Grade Build: Designed for harsh conditions, it has a rugged exterior resistant to dust, water, and impact.

Scalability: The ABB KUC720AE01 can be scaled, so it can be expanded and integrated with other modules or systems when required.

Diagnostic Capabilities: Robust diagnostic capabilities allow for faster problem detection and resolution, helping to reduce downtime.

Improved Connectivity: Enables seamless integration and communication between multiple control units, sensors, and other devices using different industry-standard communication protocols.

Functional Expansion: The ABB KUC720AE01 addition of more features to a system of automation to meet the specific design requirements and enhance its capabilities.

Industrial Use: Designed to work in harsh industrial environment so that the control system delivers stability and reliability.

Installation

Installation: Attach the ABB KUC720AE01 to a DIN rail or on any flat surface with the mounting brackets provided. This needs to be securely mounted so it doesn't move around under operation.

Wiring: Connect the power supply, input/output signals, and communication cables according to the wiring diagram provided in the user manual. Use appropriate cable glands to maintain environmental protection.

Configuration:This is the process of powering on the ABB unit and configuring the settings using the interface or software offered by ABB Always configure all parameters according to your particular application needs.

Testing: After installation, perform a thorough test to verify that the unit is functioning correctly and that all connections are secure.

Application range

Manufacturing: It is used to control motors and other equipment in the production process, ensuring that things run smoothly and accurately.

Process Automation: Allows for tighter control in industries like chemicals and pharmaceuticals, improving product quality and consistency

Energy Sector: Organizes the management of electricity generation and flows across power plants and renewable energy systems to ensure reliable and efficient power generation.

Power Distribution: Maintain system reliability by driving forward stable and efficient power distribution for a range of industrial applications.

Troubleshooting

No Power:Check Power SupplyMake sure that the power supply is properly connected and within the allowed voltage range.

Inspect Fuses:Test for blown fuses and replace as necessary.

Verify Settings:Check Cables Check all communication cables; ensure that they are not damaged.

Check the settings: Ensure that the settings for communication are correct.

External Conditions: Keep the device away from extreme temperatures and humidity levels more than its specifications.

Firmware update: Check for and apply any firmware updates from ABB.
