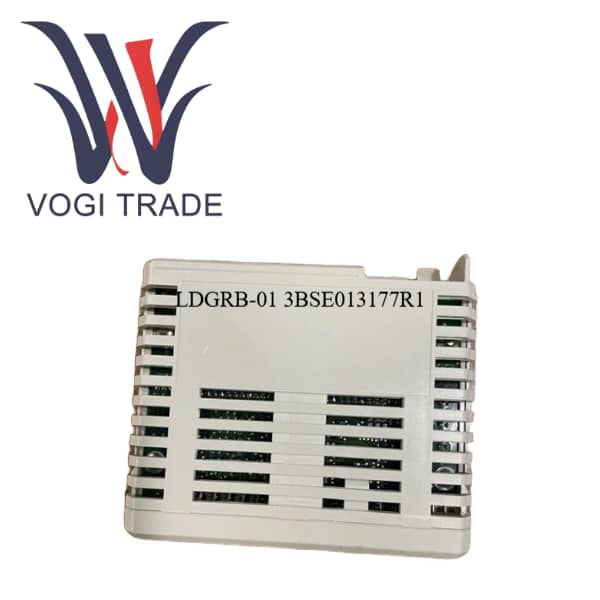

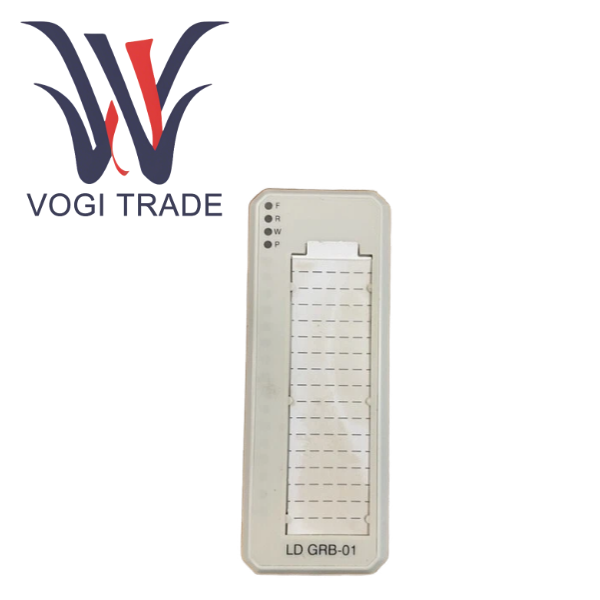

Brand: ABB Description: remote I/O systems Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Xiamen ABB LDGRB-01 3BSE013177R1 is a Redundant Communication Base in the ABB S800 series of remote I/O systems. 3BSE013177R1 is a key hardware component for building highly available, distributed I/O solutions.
|
Manufacture |
ABB |
|
Model Number |
LGDRB-01 |
|
Ordering Number |
3BSE013177R1 |
|
Catalog |
ABB |
|
Country Of Origin |
Sweden |
|
HS CODE |
8409991000 |
|
Dimension |
35*20*40CM |
|
Packing Dimension |
37*22*42CM |
|
Weight |
12kg |
Product Overview
LDGRB-01 is a Redundant Communication Base in the ABB S800 series of remote I/O systems. 3BSE013177R1 is a key hardware component for building highly available, distributed I/O solutions. This base itself does not provide I/O channels. Instead, it serves as an installation platform for I/O modules and is responsible for communicating with local I/O modules via ModuleBus. At the same time, it conducts high-speed and redundant data exchange with AC 800M controllers via RCU-Link optical fibers or twisted-pair cables.
Product Specifications and Parameters
Compatible with I/O modules all I/O modules of the ABB S800 series
Communication interface dual RCU-Link interface
Redundancy support including communication redundancy and power supply redundancy.
Module capacity Can accommodate 8 S800 I/O module.
Diagnostic function integrated LED indicator light, for showing power supply, communication, module status, etc.
Operating temperature 0°C to +60°C.
Product Functional Features
High availability and dual independent communication channels ensure that I/O data communication will not be interrupted in the event of a single point of failure.
Flexible physical connection, supporting both optical fiber and twisted-pair connection methods.
Hot plugging supports the plugging and unplugging of I/O modules while the system is running while powered on.
The powerful diagnostic capability can report the status and fault information of each I/O channel to the AC 800M controller.
Comparison of Similar Products
The non-redundant base, LDGRB-01, enhances redundant communication capabilities. 3BSE013177R1 is more costly but also more reliable.
Other manufacturers' redundant I/O bases, ABB's S800 system deeply integrated with its 800xA/AC 800M platform, have advantages in configuration, diagnosis and lifecycle management.
Applicable industry scope
Suitable for continuous process industries with extremely high requirements for system availability:
Petrochemical industry
Large-scale thermal/nuclear power plants
Metallurgy
Papermaking
