Brand: ABB Description:Signal Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen ABB MPRC 086406-502 ABB STANDARD SIGNAL INTER BOARD
|
Manufacture |
ABB |
|
Model Number |
MPRC 086406-502 |
|
Catalog |
VFD Spares |
|
Country Of Origin |
Switzerland |
|
HS CODE |
85389091 |
|
Dimension |
16cm*16cm*12cm |
|
Packing Dimension |
18cm*18cm*14cm |
|
Weight |
0.8kg |
Product Introduction

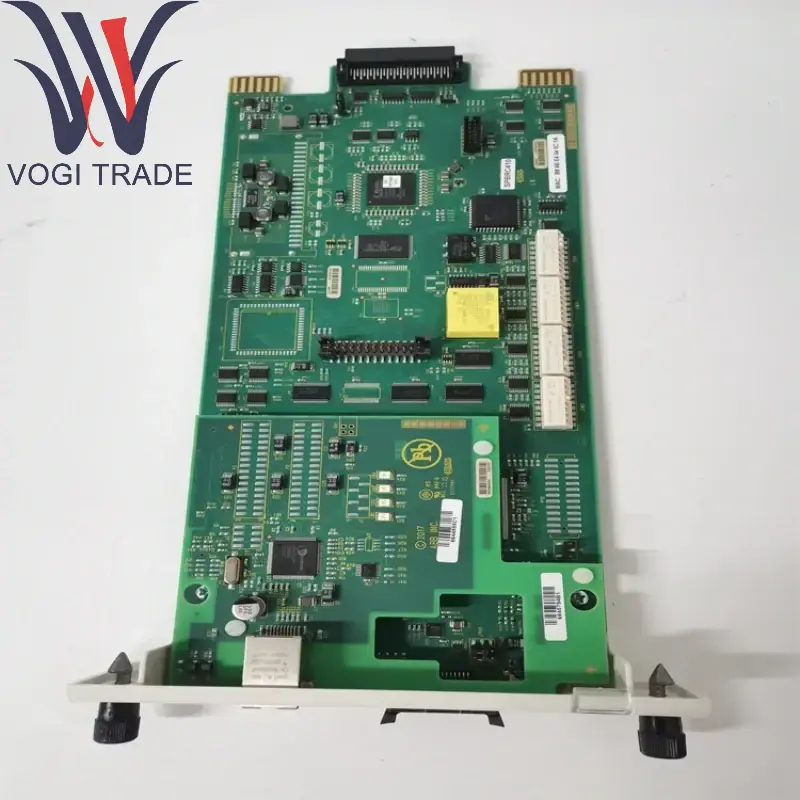

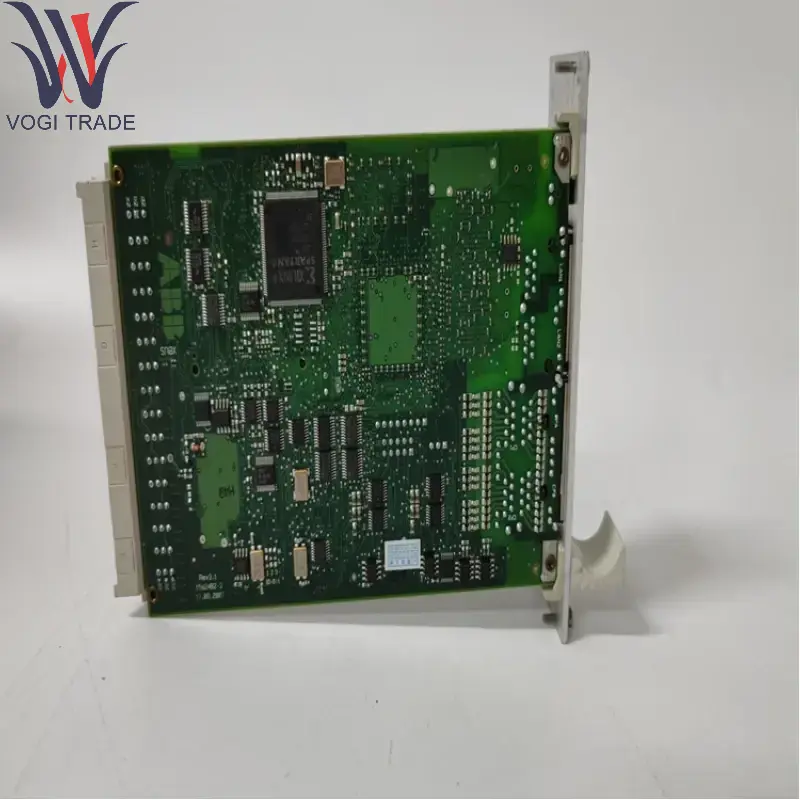

ABB MPRC 086406-502 signal board is a supporting component of ABB motor protection relay, used to enhance signal acquisition, processing or communication functions. It connects to the main equipment through a standardized interface, provides flexible configuration options, and is suitable for complex industrial environments.
Product Description
Functional Features
Signal processing: ABB MPRC 086406-502 supports analog/digital signal input and output.
Compatibility: Seamlessly integrates with ABB MPR series protection relays to expand its I/O capabilities.
Modular design: Pluggable structure for easy installation and maintenance.
High reliability: Industrial-grade components, adaptable to a wide temperature range (-20°C to +60°C) and harsh environments.
Technical parameters
Power supply voltage: typically 24VDC.
Communication interface: ABB MPRC 086406-502 supports RS-485, Modbus and other protocols.
Protection level: IP20.
Product Details
Appearance: Compact design, metal or plastic housing, with LED status indicator.
Wiring method: Screw terminal or spring clamp terminal, supporting wire size 0.5-2.5mm².
Certification standard: Complies with international safety certifications such as CE and UL.
Application area
Industrial motor protection
Used to monitor motor current, voltage, temperature and other parameters to trigger protection actions.
Process automation
ABB MPRC 086406-502 connects sensors and actuators in petroleum, chemical industry and water treatment to achieve closed-loop control.
Energy management
Integrated into the power distribution system to collect energy consumption data in real time.
OEM equipment
Provide customized signal interface solutions for mechanical equipment manufacturers.
Precautions
Power off before installation to avoid electrostatic damage.
Configuration parameters need to be set through ABB dedicated software.
Specific functions may vary depending on the firmware version. It is recommended to refer to the official manual.
