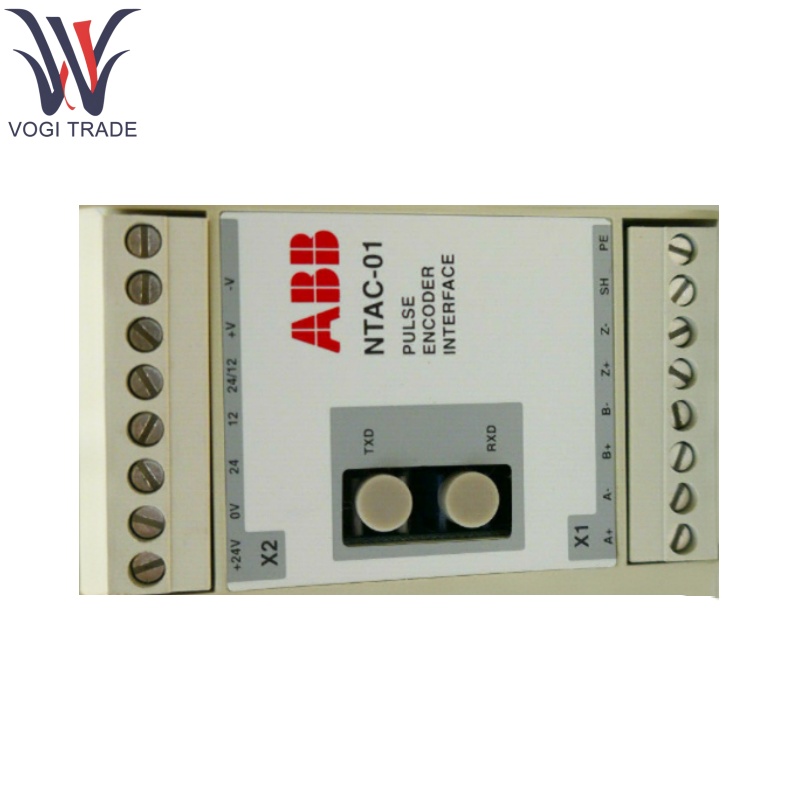

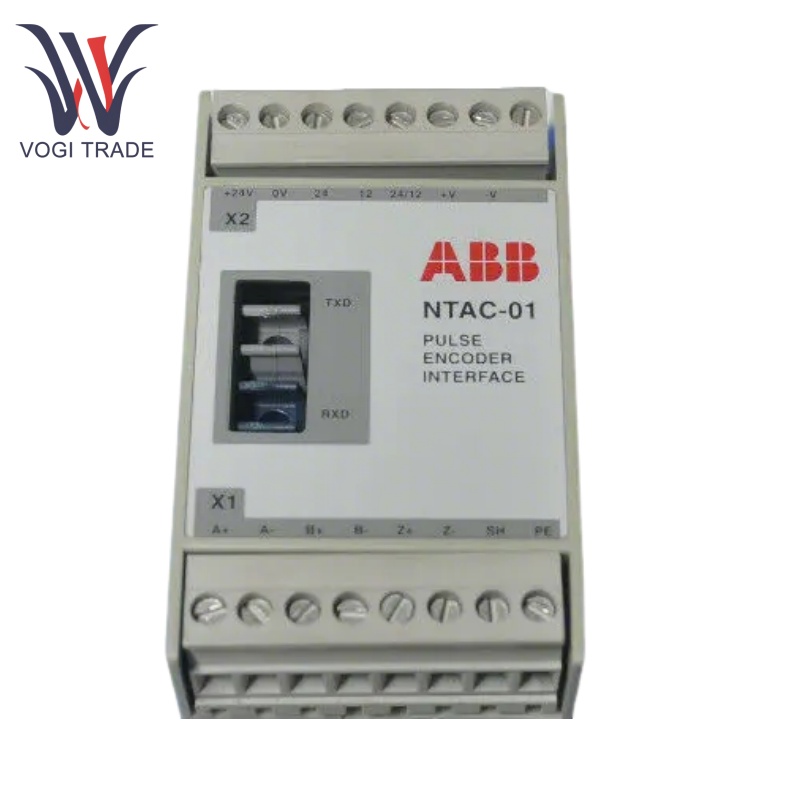

Brand: ABB Description:Pulse Encoder Interface Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: ShenZhen ABB NTAC-01 focuses on energy efficiency with intelligent control logic that adapts to reduce the cycling of loads attached, which will reduce wear and tear on equipment and lower the costs of ownership.
|
Manufacture |
ABB |
|
Model Number |
NTAC-01 |
|
Ordering Number |
58911844 |
|
Catalog |
VFD Spares |
|
Country Of Origin |
Sweden |
| HS CODE |
8543709990 |
|
Dimension |
10cm*8cm*0.5cm |
|
Packing Dimension |
12cm*10cm*2.5cm |
|
Weight |
0.5kg |
Technical Parameter
Input Types: Thermocouples (J, K, T, N, R, S).
Outputs: 2 SPDT relays.
Control Modes: ON/OFF, PID.
Power Supply: 24–240 V AC.
Display: LED or LCD with backlight.
Accuracy: ±0.3% FS (RTD), ±1°C.
Operating Temperature: -10°C to +55°C .
Mounting: DIN rail.
Protection Rating: IP20.
Functional Characteristics
Pulse Encoding: ABB NTAC-01 encodes encoder pulses into digital signals that the drive can use to control motor speed and position, facilitating precise motor control.
Fault Monitoring：ABB NTAC-01 supervises the encoder signal for faults and signals them to the drive through an LED, enabling comprehensive scanning and causal analysis of the systems in operation.
Easy to use: ABB NTAC-01 is easy to add and set a work unit on an interface; the whole working environment is easy to adapt with, and you will find less complexity in operations and testing.
Fault Diagnosis
Visual Fault Indication: The built - in LED visually indicates the fault status of the encoder signal. If the LED lights, it indicates a follow-up fault of the encoder signal, such as wrong connection, signal interruption, voltage logic levels abnormal, etc.
Check Connection and Configuration: First check the encoder with the NTAC right out whether the wiring is correct, not loose, short - circuit. Next, verify that ABB NTAC-01 configuration parameters correspond to the encoder type and drive being used. However, in case the issue doesn't get resolved, you might need to reach out to ABB technical support for further diagnosis and repairs.
Application Areas
Conveyor Systems: It is used to control the speed of conveyor belts for stable operation and accurate transportation of material in the conveyor system.
Packaging Machines：In packaging machines, ABB NTAC-01 also implements positioning of mechanical components to execute accurate operations for the packaging such as precise product placement and sealing.
Textile Machines: It is used to regulate the speed and position of textile machines, which is beneficial to improve the quality and production efficiency of textile production that involves ensuring the consistency of yarn winding and the precision of fabric weaving.
Printing Machines: ABB NTAC-01 is employed in printing machines to control print rollers and paper feeding velocity and position; this is especially important for registration accuracy and print quality.
