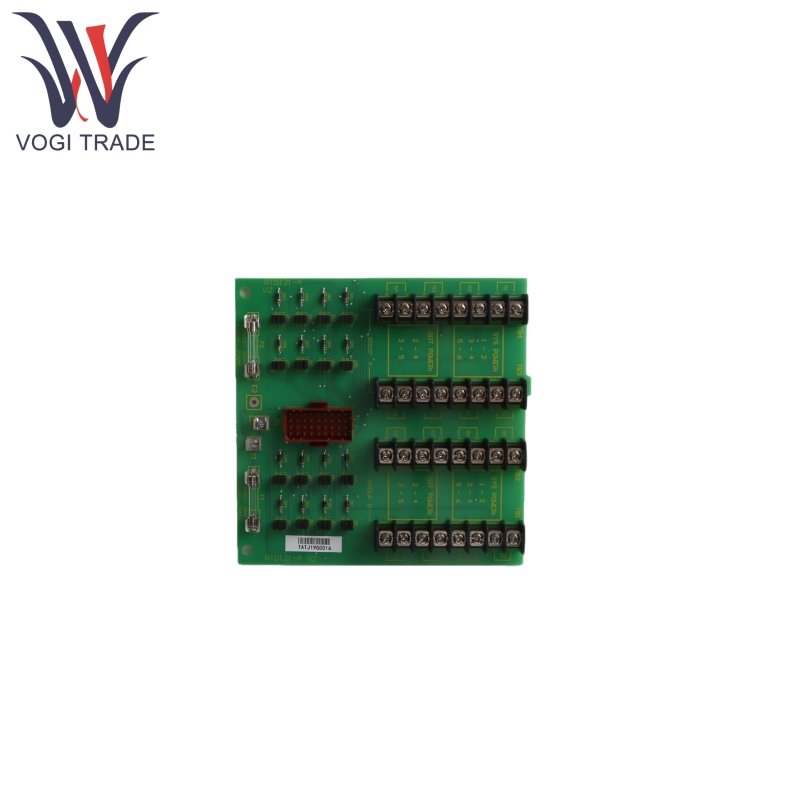

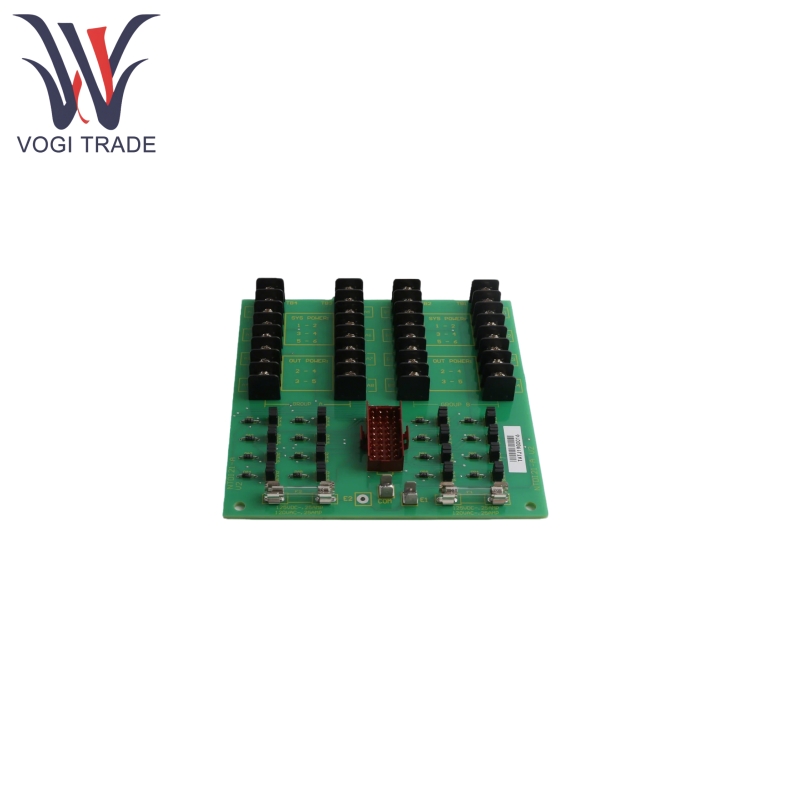

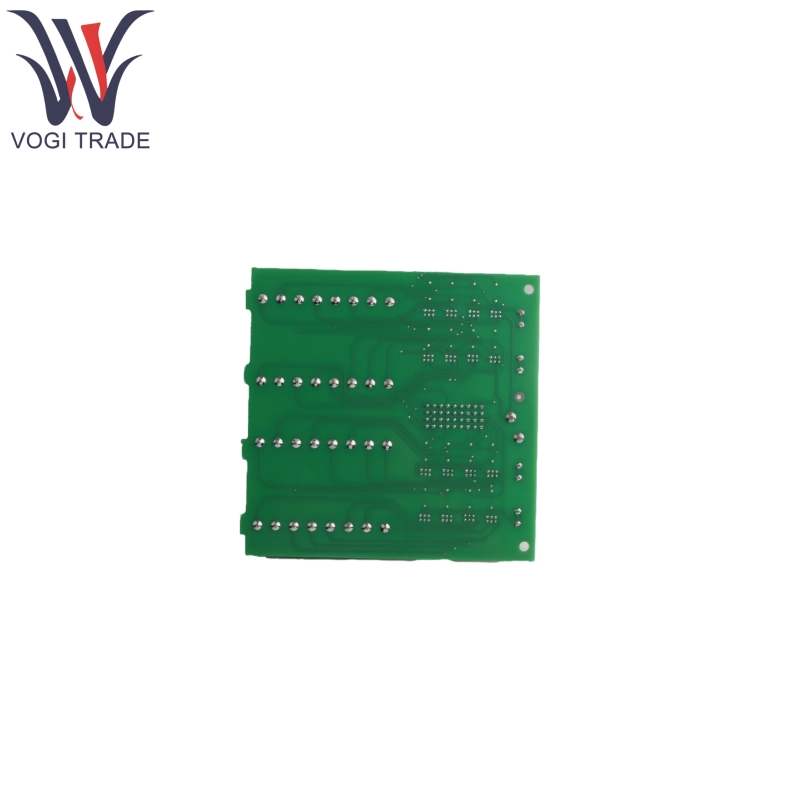

Brand: ABB Description: Terminal Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB NTDI21-A core function is to connect the digital signals of field devices to the DCS system, enabling signal conditioning, isolation, and reliable transmission. The terminal board features a modular design and supports DIN rail mounting, making it suitable for industrial environments with high reliability requirements.
|
Manufacture |
ABB |
|
Model Number |
NTDI21-A |
|
Ordering Number |
NTDI21-A |
|
Catalog |
Bailey INFI 90 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
10*10*6cm |
|
Weight |
0.6kg |
Product Features
ABB NTDI21-A supports two groups of 16 digital input channels, with each group consisting of 8 independently isolated channels. Among these, 12 channels are fully isolated, while the remaining 2 pairs share a common positive line.
ABB NTDI21-A features 16 built-in LED status indicators that display the real-time status of input signals, facilitating quick fault diagnosis.
ABB NTDI21-A features 2500 Vrms electrical isolation, effectively preventing external interference and ground potential differences.
ABB NTDI21-A integrates 5 kV surge protection, capable of withstanding transient overvoltage surges.
ABB NTDI21-A features a removable terminal board design, supporting hot-swap replacement, enabling maintenance of faulty terminals without shutdown.
ABB NTDI21-A mechanical locking mechanism ensures secure connection between the module and DIN rail, preventing accidental disconnection.
ABB NTDI21-A supports the PROFIBUS DP/PA communication protocol, enabling seamless integration into control systems such as ABB 800xA. It is compatible with various input signal types, including dry contacts, transistor outputs, and TTL levels.
Product Using Principle
The digital signals from the field devices are connected to ABB NTDI21-A via screw terminals, with each group of 8 channels transmitted to the DCS controller via independent circuits. The input signals are optically isolated and then converted by the onboard circuitry into logic levels recognizable by the controller.
Each channel corresponds to an LED indicator light. A steady green light indicates the signal is closed (ON), while a darkened light indicates it is open (OFF). When a signal abnormality occurs, the indicator light flashes or darkens, aiding in quickly locating the fault point.
ABB NTDI21-A can be connected to the I/O expansion bus via the P3 connector to transmit digital signals to the controller. It also supports the PROFIBUS DP protocol, enabling communication with other fieldbus devices.
Product Parameter
The following detail is for ABB NTDI21-A Terminal Board.
|
Parameter |
Specification |
|
Rated Voltage |
250 V AC/DC |
|
Rated Current |
10 A per channel (continuous load) |
|
Input Signal Type |
Dry contact, 24 V DC level (compatible with NPN/PNP type sensors) |
|
Isolation Rating |
2500 Vrms (between channels and to ground) |
|
Surge Protection |
5 kV (compliant with IEC 61000-4-5 standard) |
|
Operating Temperature |
-20°C to +60°C |
|
Protection Class |
IP20 (for indoor use, dust-proof) |
