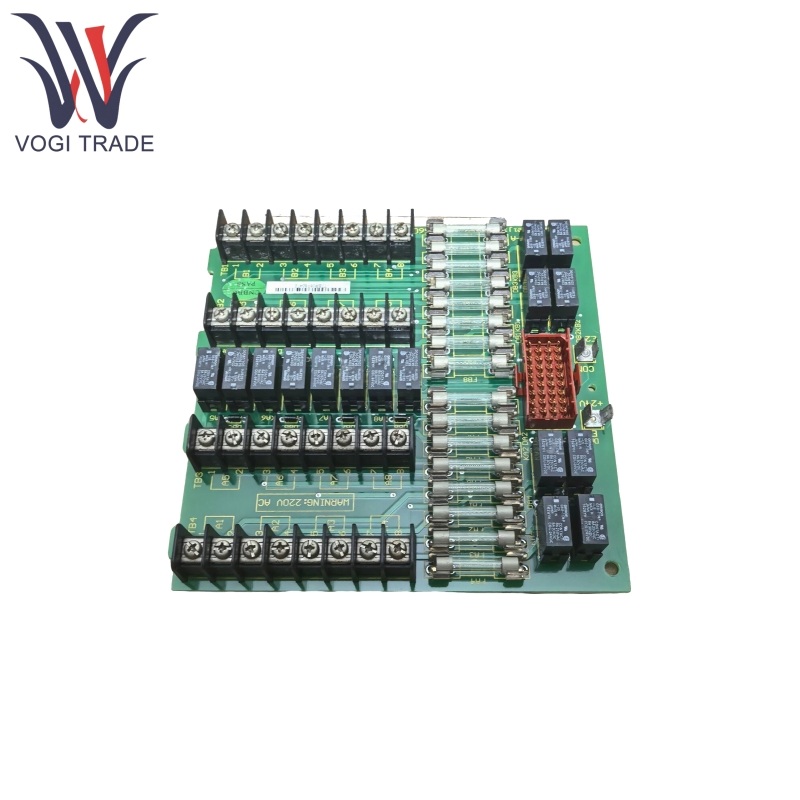

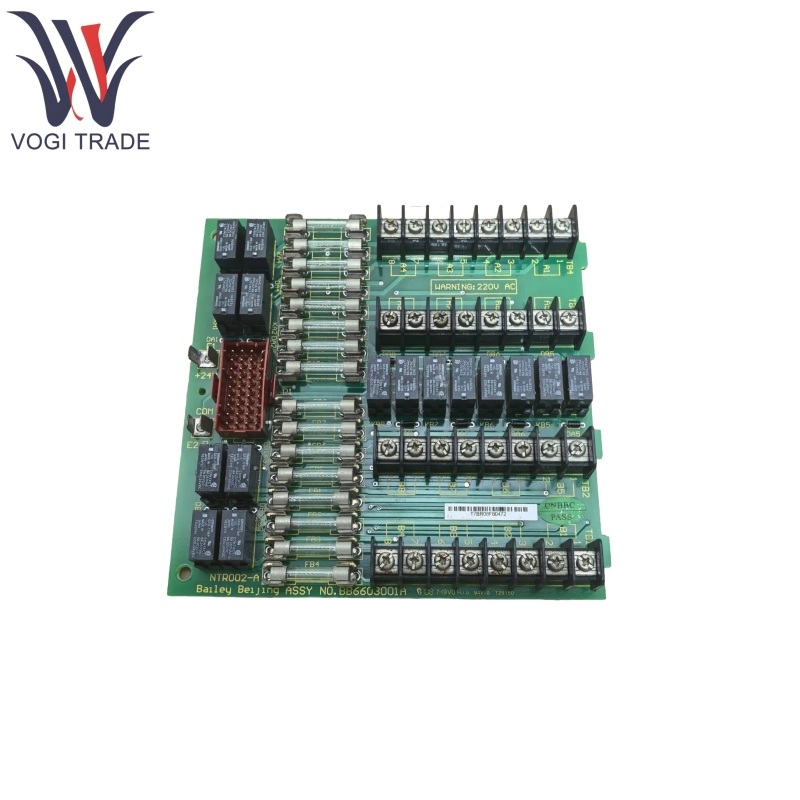

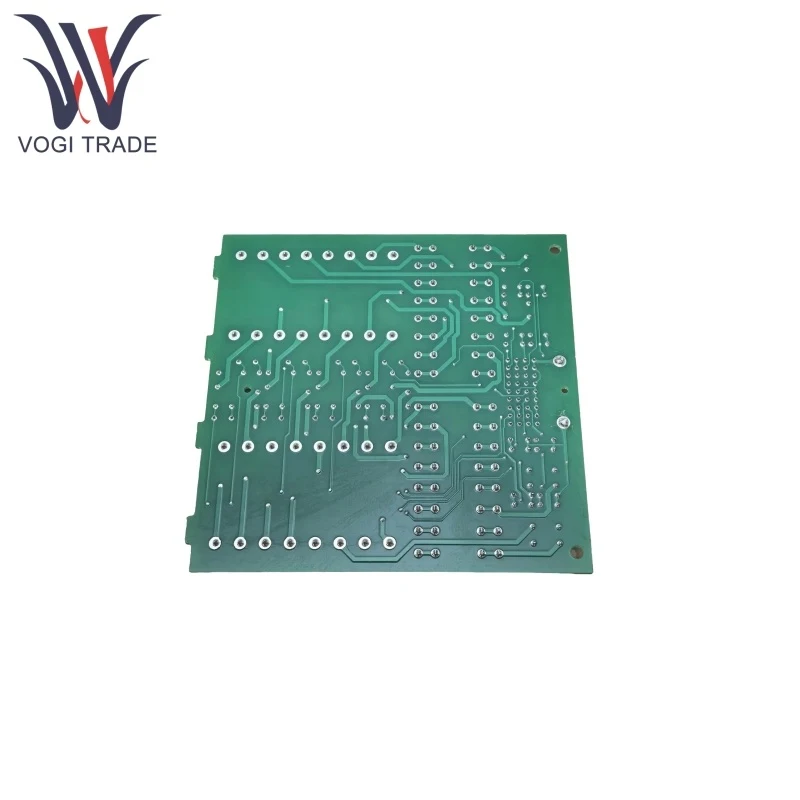

Brand: ABB Description: Terminal Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB NTR002-A BB6603001A is specifically designed for temperature measurement in industrial automation environments and utilization with various temperature sensors for signal conditioning, digital processing and automation systems connection. Its modular design ensures installation flexibility and high reliability, making it suitable for harsh industrial environments.
|
Manufacture |
ABB |
|
Model Number |
NTR002-A |
|
Ordering Number |
BB6603001A |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
28*12*10cm |
|
Weight |
0.8kg |
Product Features
ABB NTR002-A BB6603001A can be used with both RTD (resistance temperature detectors) and thermocouples, one of the most practical sensors that can be used to measure temperature, and has a wide range of measurement from -200°C to 1800°C, making it suitable for a variety of applications.
ABB NTR002-A BB6603001A is a 16-bit resolution product with ±0.1°C (typical value) accuracy.
ABB NTR002-A BB6603001A incorporates a built-in linearization algorithm to automatically compensate for sensor nonlinearity errors, ensuring measurement accuracy.
ABB NTR002-A BB6603001A converts analog temperature signals into digital data via a standardized interface, enabling direct integration with ABB control systems or third-party PLCs, and supports real-time data transmission and remote configuration.
ABB NTR002-A BB6603001A features sensor disconnection and short-circuit detection, with fault status feedback via LED indicator lights or communication protocols.
ABB NTR002-A BB6603001A has an electrical isolation design (2500V DC) to prevent signal interference and overvoltage damage.
The operating temperature range is -20°C to +70°C, suitable for high-temperature and low-temperature industrial environments. The protection rating is IP20, with an optional dust-proof housing available to enhance protection performance.
Product Using Principle
The analog signals generated by the sensors are connected to the module via a terminal board. After being amplified and filtered by the front-end conditioning circuit, ABB NTR002-A BB6603001A can be converted into digital values by the ADC.
The built-in microprocessor performs linearization correction, cold-end compensation (for thermocouples), and fault diagnosis on the raw data, generating standardized temperature values.
The processed data is transmitted via a communication interface to the main controller for real-time monitoring, control logic execution, or upload to an SCADA system.
ABB NTR002-A BB6603001A can be parameterized using ABB's ABB Ability™ System 800xA engineering software and supports remote calibration to ensure long-term measurement accuracy.
Product Application
ABB NTR002-A can be used for temperature monitoring of reactors, pipelines, and furnaces in industries such as chemicals, oil and gas, and power, providing precise feedback for closed-loop control systems.
ABB NTR002-A can sense the temperatures of turbines and boilers in thermal power plants to save energy and avoid overheating breakdown.
ABB NTR002-A offers monitoring temperature of bioreactors in wastewater treatment plants, so that microbial activity and treatment efficiency can be maintained.
ABB NTR002-A monitors the temperature of sterilization equipment and incubators in cleanroom environments compliant with GMP standards, meeting regulatory compliance requirements.
