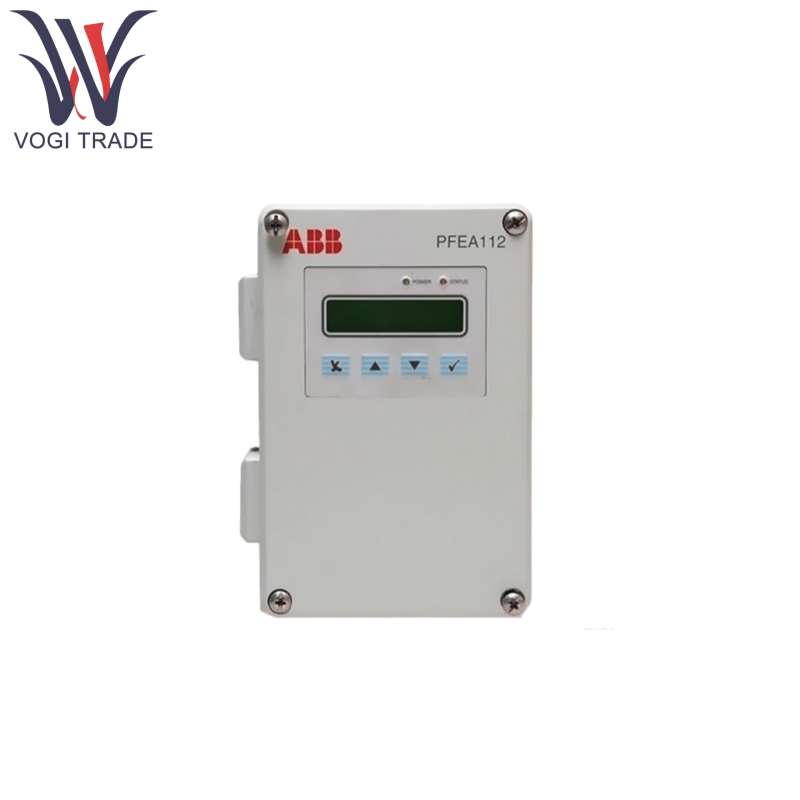

Brand: ABB Description: Tension Electronics Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB PFEA112-65 3BSE050091R65 adopts a 32-bit RISC processor architecture combined with a modular design to achieve closed-loop tension control of continuous materials such as coils and wires. Its core function is to collect tension data in real time through sensors and output control signals based on preset algorithms to ensure that the material maintains stable tension during processing, thereby avoiding quality defects or equipment failures caused by tension fluctuations.
|
Manufacture |
ABB |
|
Model Number |
PFEA112-65 |
|
Ordering Number |
3BSE050091R65 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8451900000 |
|
Dimension |
18*10*4cm |
|
Weight |
1kg |
Product Features
ABB PFEA112-65 3BSE050091R65 features a 16-bit high-precision ADC, with a tension measurement resolution of 0.01 kN and control accuracy up to ±0.1% FS (full scale), making it ideal for applications involving tension-sensitive materials, such as lithium-ion battery electrode coating and optical film slitting.
ABB PFEA112-65 3BSE050091R65 supports various algorithms, including PID control and Direct Torque Control (DTC), allowing flexible parameter configuration based on material properties (modulus of elasticity, thickness) and process requirements.
ABB PFEA112-65 3BSE050091R65 comes standard with Modbus RTU, Profibus DP, and Ethernet/IP interfaces, enabling seamless communication with upper-level computers, PLCs, and drives for full system coordination control.
ABB PFEA112-65 3BSE050091R65 housing has an IP65 protection rating, ensuring stable operation in a wide temperature range from -20°C to +60°C. It also features overload protection, short-circuit protection, and surge suppression, making it suitable for harsh industrial environments with dust or oil contamination.
ABB PFEA112-65 3BSE050091R65 supports up to two load cell inputs, compatible with both rotating and fixed tension sensors, and can expand analog input/output channels (e.g., 4-20mA, 0-10V signals) via expansion modules to meet complex process requirements.
Product Using Principle
ABB PFEA112-65 3BSE050091R65 can collect material tension signals in real time through strain gauge tension sensors installed on guide rolls or floating rolls, converting them into mV-level voltage signals for input to the module.
It has a built-in ADC to convert analog signals into digital signals, using a Kalman filter algorithm to eliminate noise interference.
The processor calculates the control quantity based on the deviation between the preset target tension value and the measured value, using PID or DTC algorithms.
It can control signals via PWM or analog output to the drive, adjusting motor speed or brake torque to achieve dynamic tension balance.
It supports a local HMI interface (optional) and remote parameter configuration, enabling real-time display of tension curves, alarm logs, and providing pre-alarm functionality (tension limit warning).
Product Parameter
Here is ABB PFEA112-65 3BSE050091R65 Connection Unit for Analog Board detail.
|
Parameter Item |
Specification Value |
|
Power Supply Voltage |
24VDC (±15%) |
|
Power Consumption |
≤15W |
|
Input Signal Type |
Load cell (mV/V), analog (0-10V/4-20mA) |
|
Output Signal Type |
PWM pulse, analog (0-10V), digital (relay) |
|
Communication Protocol |
Modbus, Profibus, Ethernet/IP |
|
Operating Temperature Range |
-20℃ to +60℃ |
|
Storage Temperature Range |
-40℃ to +70℃ |
