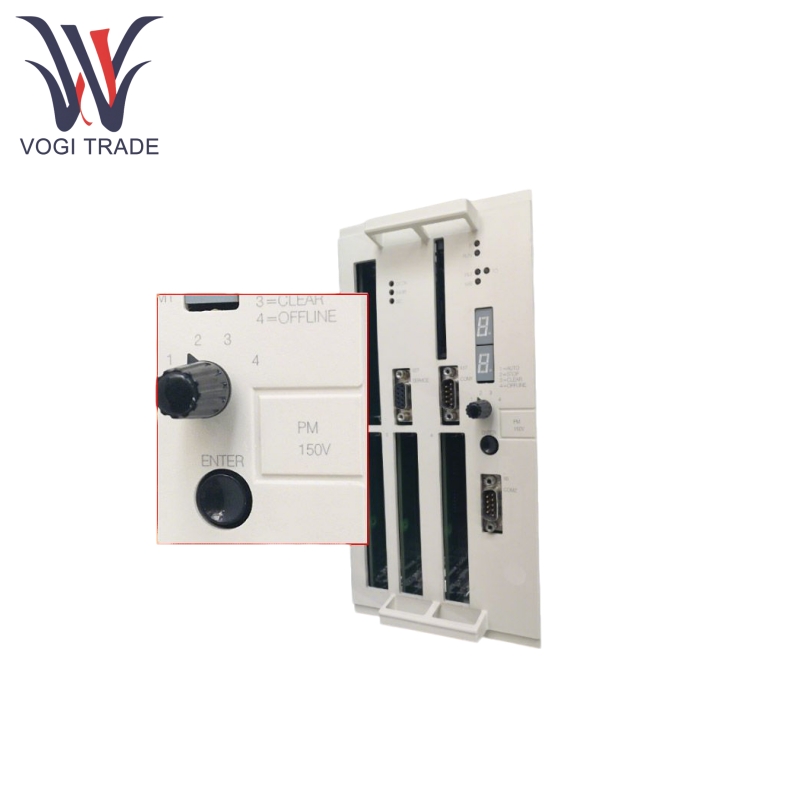

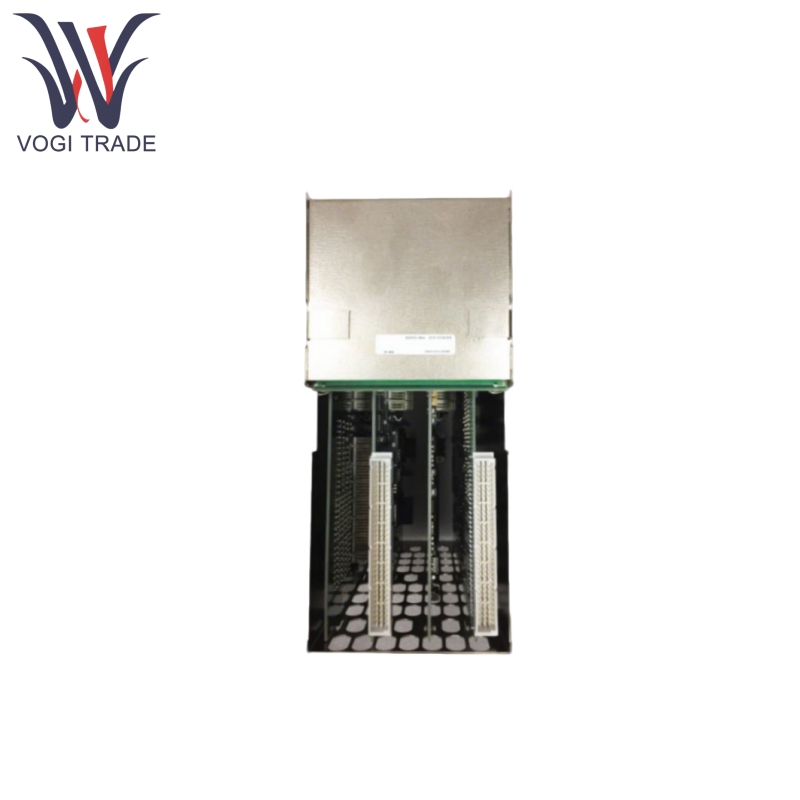

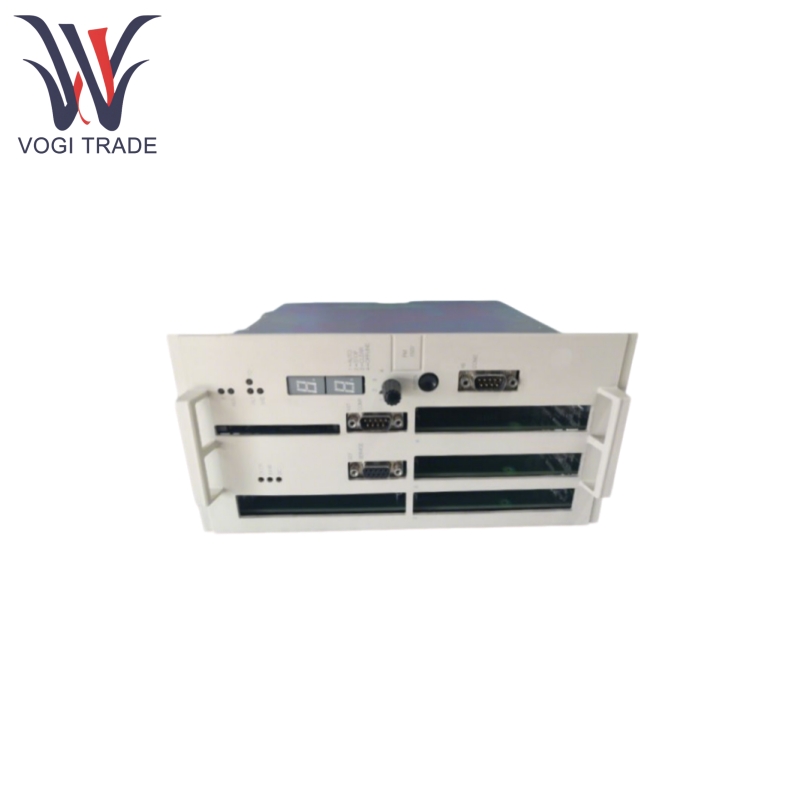

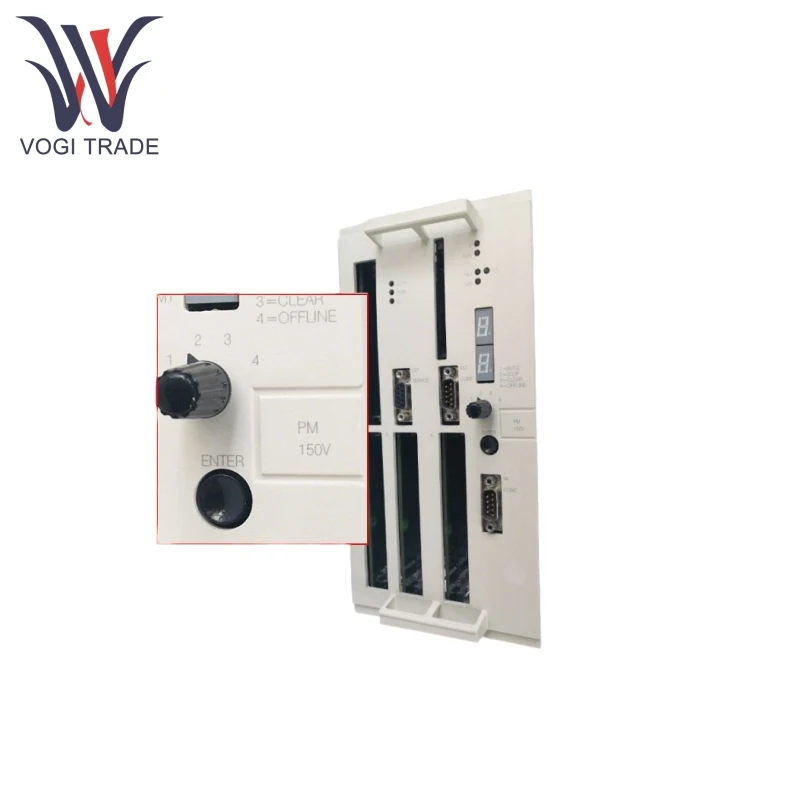

Brand: ABB Description: Processor Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB PM150V08 3BSE009598R1 is specifically designed for industrial automation control systems to perform complex control logic, data processing, and communication tasks. Based on the Motorola MC68020 processor architecture, it supports Mod 300 or Master software and is compatible with the Advant OCS (Open Control System) platform, enabling real-time monitoring and precise control of industrial equipment.
|
Manufacture |
ABB |
|
Model NumberX |
PM150V08 |
|
Ordering Number |
3BSE009598R1 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8471800000 |
|
Dimension |
24*20*10cm |
|
Weight |
2.5kg |
Product Features
ABB PM150V08 3BSE009598R1 uses a Motorola MC68020 processor, supports multi-tasking parallel processing, and can simultaneously perform tasks such as logic control, data acquisition, and communication management, with a response time of < 2 ms.
ABB PM150V08 3BSE009598R1 has a built-in real-time operating system (RTOS) to ensure the real-time and stability of control tasks, making it suitable for scenarios with strict response speed requirements.
ABB PM150V08 3BSE009598R1 supports multiple protocols including RS-232, RS-485, PROFIBUS DP, and EtherCAT, enabling connectivity with sensors, actuators, HMIs (human-machine interfaces), and other control systems.
ABB PM150V08 3BSE009598R1 supports expandable memory (8MB base capacity) and functional modules, offering flexible adaptation to automation requirements of varying scales.
ABB PM150V08 3BSE009598R1 features built-in error correction circuits (ECC) and fault self-diagnosis functionality, reducing maintenance costs. It is compatible with industrial standards such as HART and Foundation Fieldbus (FF), facilitating integration with third-party devices.
Product Using Principle
ABB PM150V08 3BSE009598R1 can collect sensor signals through I/O interfaces, process them via the processor, and output control commands to actuators.
It can communicate with remote I/O modules, PLCs, and SCADA systems through PROFIBUS DP or EtherCAT for distributed control responsibilities.
Its program is kept in memory and the processor executes this looped program after powering up (scan cycle in configurable).
Online programming and debugging are supported, which means the control strategy can be changed in real-time without stopping production.
Some configurations support dual-processor redundancy to ensure high availability for critical systems.
Product Parameter
The following detail is for ABB PM150V08 3BSE009598R1 Processor Module.
|
Parameter Category |
Specific Indicators |
|
Processor |
Motorola MC68020, 25 MHz clock speed |
|
Memory |
8 MB RAM (expandable) |
|
Power Supply Voltage |
24~48 VDC, rated current 8 A, power 192 W |
|
Communication Interfaces |
RS-232, RS-485, PROFIBUS DP, EtherCAT |
|
Operating Temperature |
-10°C to 60°C (some models support -20°C to 55°C) |
|
Protection Class |
IP20 (standard) or IP65 (extended models) |
|
Control Accuracy |
Position accuracy ±0.01°, speed accuracy ±0.01% (in specific application scenarios) |
|
Programming Support |
Supports IEC 61131-3 standard languages such as Lad |
