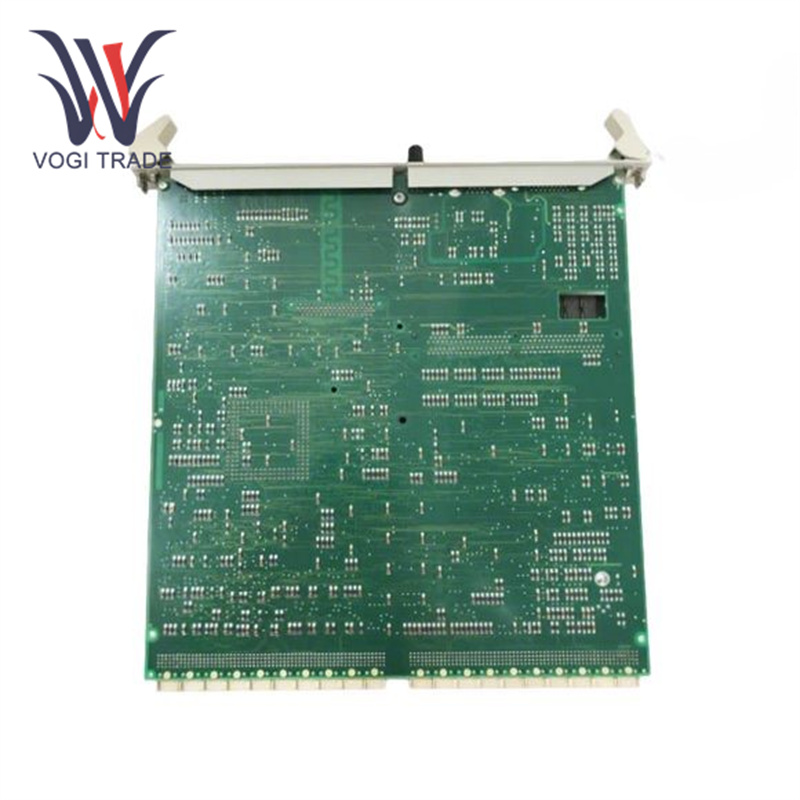

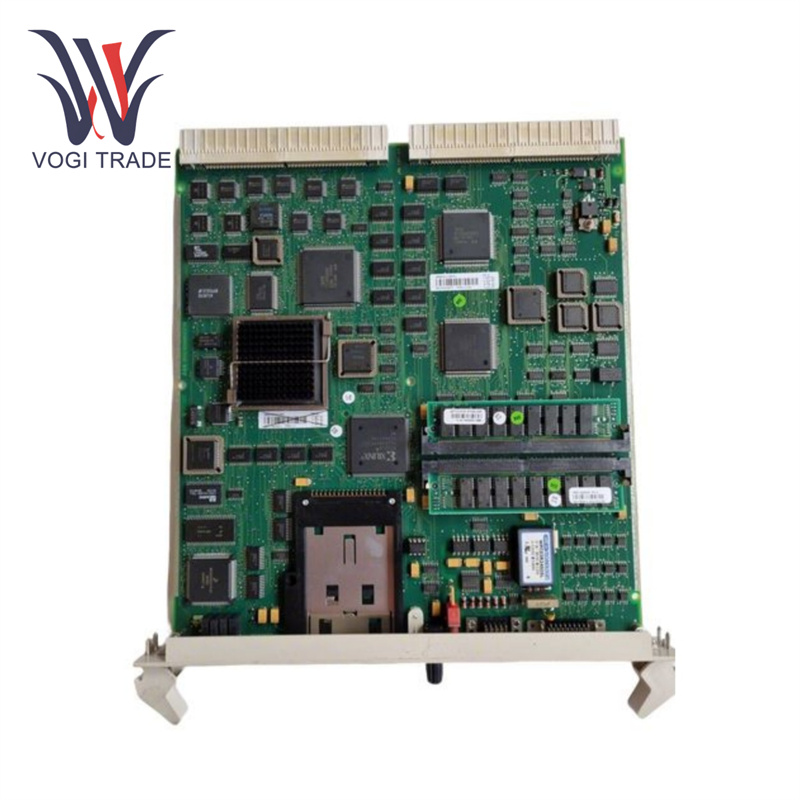

Brand: ABB Description: Processor Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 25 Payment Term: T/T Shipping Port: ShenZhen ABB PM511V16 is a processor module with excellent performance and powerful functions. Its powerful processing capability, rich communication interfaces and flexible programmability.
|
Manufacture |
ABB |
|
Model Number |
PM511V16 |
|
Ordering Number |
3BSE011181R1 |
|
Catalog |
Advant OCS |
|
Country Of Origin |
Sweden |
|
HS CODE |
8537109199 |
|
Dimension |
27.45*27*2.7CM |
|
Packing Dimension |
30*30*5CM |
|
Weight |
0.8Kg |
Operating parameters
Data processing: ABB PM511V16 has a 32-bit RISC processor, which means it can process additional data quickly. The module includes memory features such as 16 MB capacity6 and 8 Mbyte dynamic RAM with ECC; a large amount of program instructions and data can be stored, allowing the control system to work efficiently.
Power supply and frequency: 24 V DC, input frequency range of 1 Hz to 5 kHz, can adapt to the common power supply environment in the factory.
Communication interface: ABB PM511V16 has multiple communication interfaces, two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4). COM3 is an RS-232C port with modem control signals, while COM4 is isolated and used for configuration tools. In addition, it is compatible with different communication protocols such as Modbus, OPC and Profibus24 to smoothly connect and exchange data with other devices.
Product Features
High-performance processing and control: ABB PM511V16 is equipped with a powerful processor that can quickly and accurately process complex control algorithms and data processing tasks. It provides multi-tasking and parallel operation, thereby improving the efficiency and flexibility of the system.
Digital and analog I/O modules: ABB PM511V16 is equipped with 16 digital inputs and 16 digital outputs, as well as expandable support for analog I/O modules. It can be easily connected with a variety of sensors and actuators, thereby facilitating the monitoring and control of complex industrial processes.
Programmability: It has an easy-to-use programming interface that complies with the IEC 61131-3 standard and supports popular programming languages such as ladder diagram, function block diagram, structured text, etc. Users can drag and drop UI elements to customize automation solutions to meet specific application needs.
CPU redundancy: The controller supports redundancy of multiple CPUs, which means that if one CPU fails, the rest can take over. In addition, it has passed EMC certification to ensure that it can work stably in an industrial environment with strong anti-interference ability.
Diagnostic and monitoring functions: ABB PM511V16 includes alarm/event list, group alarm, status list and system fault list. In order to reduce the system load and facilitate the operator to identify problems, it can also filter events, alarms, system alarms and system status.
Application range
Industrial automation: ABB PM511V16 is commonly used in industrial automation systems, such as PLC (Programmable Logic Controller) systems, which are used to control and manage complex automation processes in production lines, factories, and production processes.
Chemical industry: Used for process monitoring and control in the chemical industry, including monitoring and regulating chemical reactions, material handling and production processes.
Transportation: Used for traffic control systems, including signal control, traffic signal systems and vehicle automation systems.
Building automation: Used in building automation systems to control and optimize various equipment and systems in buildings, including HVAC systems, lighting systems and access control systems.
Food and pharmaceutical industries: Used for hygienic process connections in the food and pharmaceutical industries, with special attention to hygiene standards.
