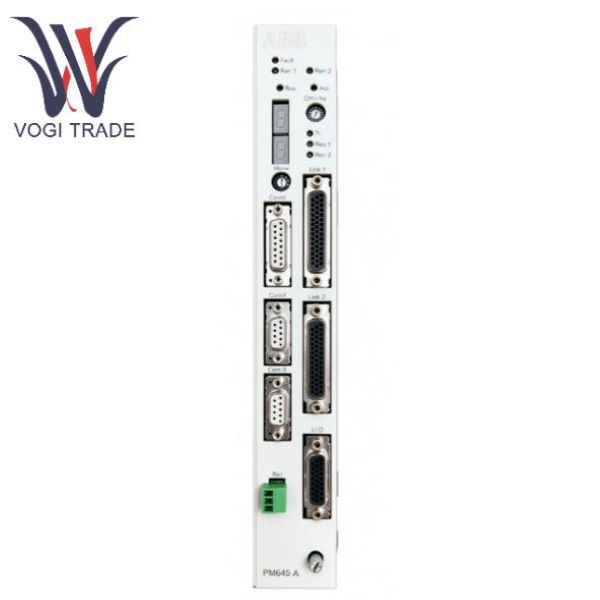

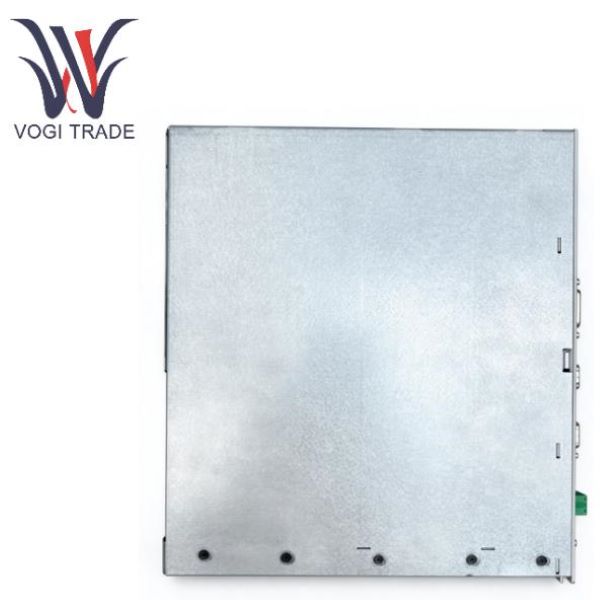

ABB PM645A 3BSE010536R1

The ABB PM645A 3BSE010536R1 is a processor module for the AC160 system, compatible with the 800xA platform. It has now been discontinued and is mostly used for replacing spare parts of existing systems. Supports IEC61131-3 programming, features Profibus DP master station, Ethernet communication, hardware dual-machine redundancy and non-interference switching capabilities, and comes with on-board self-diagnosis. It has strong anti-interference ability, stable operation timing, and is widely used in process control and interlocking circuits in industries such as thermal power, chemical engineering, and metallurgy. This module belongs to the conventional DCS controller and cannot be used in high-level SIS safety circuits. When in use, pay attention to the firmware version matching and the bus grounding specification.

Product Advantages

1. Real-time control operation

Execute the IEC 61131-3 standard procedures (ST, LD, FBD, etc.) to complete PID loop regulation, logical interlocking, sequential control, process mathematical operations, and deterministic periodic scanning.

2. Bus master station management

Native Profibus DP master station, responsible for the bus scheduling, data reading and writing, and polling management of distributed I/O, frequency converters, and field instruments.

3. Data interaction and forwarding

Connect to 800xA control network and Ethernet, support Modbus TCP/RTU, transmit process parameters and alarms to the upper computer, and issue set values and instructions.

4. Redundant voting function

Equipped with a built-in hardware voting circuit, it supports dual-CPU redundancy and is equipped with a high-speed synchronous link to achieve primary and backup synchronization and disturbance-free switching, eliminating single-point failures.

5. Self-diagnosis and status reporting

On-board hardware diagnosis, indicator lights indicate faults (power, program, bus, redundant status), fault codes are uploaded to the upper level for convenient location of channel, bus, and program anomalies.

6. Program and data storage

On-board Flash saves control programs and parameter formulas. RAM is used for real-time data operation and supports offline installation of programs as well as online monitoring

Installation and Maintenance

1. Power supply requirements: DC24V power supply, voltage range 19.2~30V DC. The power supply must be stabilized and isolated to avoid surges and voltage drops. It is recommended to use a UPS redundant power supply to prevent power failure and program loss ABB Group

2. Key points of redundancy configuration: Redundancy must use the same model and firmware version PM645A, which is dedicated to high-speed synchronous link cables. Inconsistent versions of the primary and backup firmware can lead to synchronization failure and abnormal switching.

3. Bus wiring specification: Profibus DP must use shielded twisted-pair cables, with single-end grounding. The bus terminal resistance should be configured in accordance with the specification to avoid multiple grounding points sharing ground, interference causing station loss, and flash disconnection.

4. Program and Firmware: Back up the program and parameters before downloading. The firmware version needs to match the 800xA version. Cross-version upgrades are prone to communication anomalies.

5. Environment and heat dissipation: The cabinet should be well-ventilated, with an operating temperature range of 0 to 55℃. Over-temperature, condensation, and corrosive gases are strictly prohibited. Do not modify the key interlock logic online at will. Regularly clean the dust. Dust accumulation can cause poor contact, overheating and system freeze.

6. Static electricity protection: Before plugging or unplugging the module, take ESD anti-static measures and wear an anti-static wristband. Do not touch the gold fingers on the backplane to prevent oxidation and static electricity from damaging the chip.

7. Spare parts replacement: After replacing the CPU, it is necessary to reinstall the program, verify the IP address, bus parameters, and redundant parameters. After replacement, redundancy switching tests and interlock simulation tests must be conducted. Only after confirming that everything is normal can it be put into operation.

8. Isolation and distinction: This CPU is a conventional DCS controller, not an SIS safety instrument controller. High-level SIL safety circuits cannot use it to undertake safety functions
