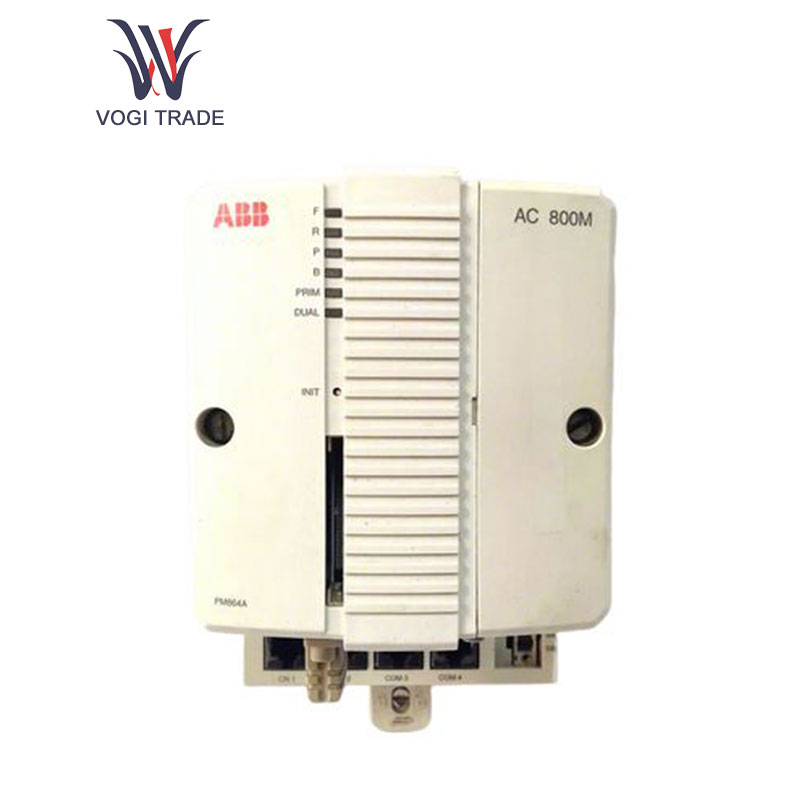

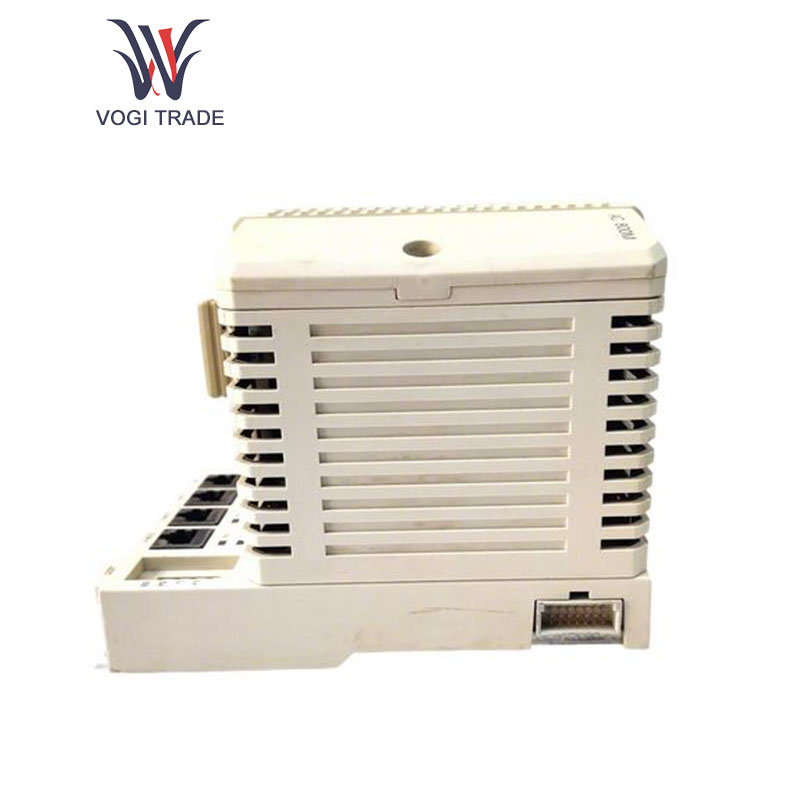

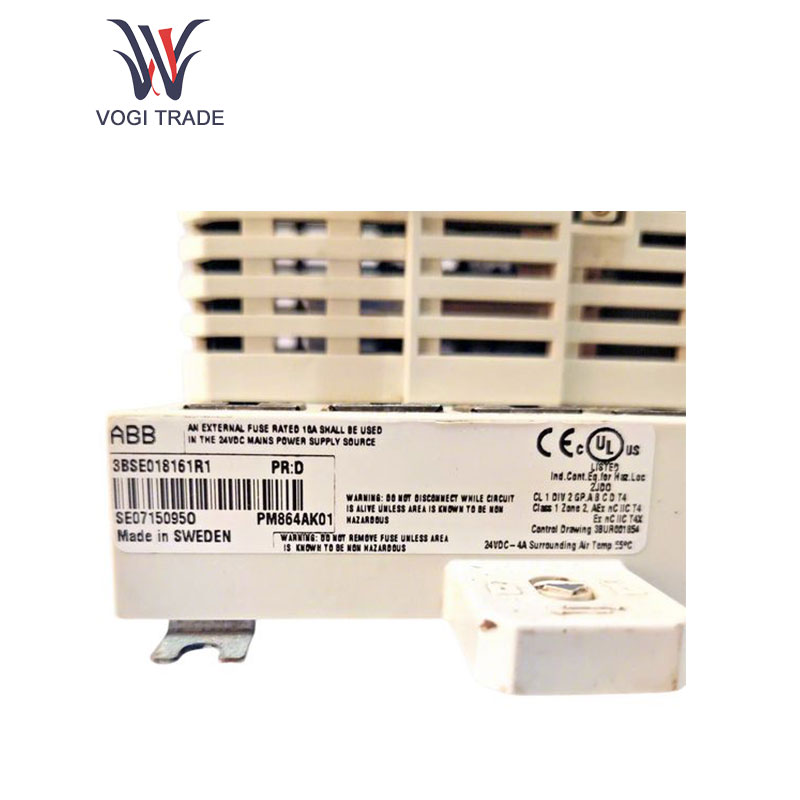

Brand:ABB Description:Processor Unit Condition:New Certificate:COO TEST REPORT WARRANTY LETTER Warranty:1 year Inventory Qty:11 Payment term:T/T Shipping Port:ShenZhen ABB PM864AK01 3BSE018161R1 is a powerful and reliable industrial controller. It integrates multiple advanced functions, has excellent control capabilities, rich communication interfaces, powerful programmability and reliable redundant design, as well as convenient installation and maintenance features.
|
Manufacture |
ABB |
|
Model Number: |
PM864AK01 |
|
Ordering Number |
3BSE018161R1 |
|
Catalog |
800xA |
|
Country Of Origin |
Sweden |
|
HS CODE: |
8480719090 |
|
Dimension |
13.5*18.6*12 CM |
|
Packing Dimension |
15*20*15 CM |
|
Weight |
1.2kg |
Technical parameters
Processor: 96 MHz dual-core ARM Cortex-R4 CPU
Memory: 32MB RAM + 2MB Flash storage
Communication interface: 2×RJ45 Ethernet, 2×RS-232C serial port, CEX bus, Module Bus
I/O support: Up to 96 non-redundant S800 I/O modules
Power supply: 24V DC, typical power consumption 6.9W
Environmental adaptability: Working temperature -40°C to 70°C, IP30 protection, anti-electromagnetic interference
Functional features
1. High-performance real-time control: ABB PM864AK01 3BSE018161R1 adopts dual-core architecture and real-time operating system, which can simultaneously process multi-task control logic and data acquisition, ensure millisecond-level response accuracy, and meet the stability requirements of demanding industrial processes
2. Redundant fault tolerance and expansion capability: Supports CPU redundant hot standby, and active/standby switching without disturbance; seamlessly integrates ABB S800 I/O modules and PROFIBUS, Modbus and other communication modules through CEX bus and ModuleBus to achieve flexible system expansion
3. Industrial-grade reliable design: Built-in self-diagnosis mechanism monitors hardware status in real time, combined with memory backup battery to prevent data loss, adapts to harsh environments such as dust and temperature difference, and ensures high availability of ABB PM864AK01 3BSE018161R1 in continuous production
4. Open programming and maintenance: Compatible with IEC 61131-3 standards (LD/FBD/ST and other languages), and efficiently developed through Control Builder software; ABB PM864AK01 3BSE018161R1 supports module hot swapping and LED status indication, significantly reducing maintenance downtime
Application scenarios
Process industry: chemical plant reactor pressure/temperature closed-loop control, refinery distillation tower flow regulation;
Power system: thermal power plant boiler combustion control, substation protection logic management;
Manufacturing and water treatment: automobile production line robot collaboration, sewage treatment plant pump station linkage;
Building automation: intelligent scheduling of HVAC systems in large venues
