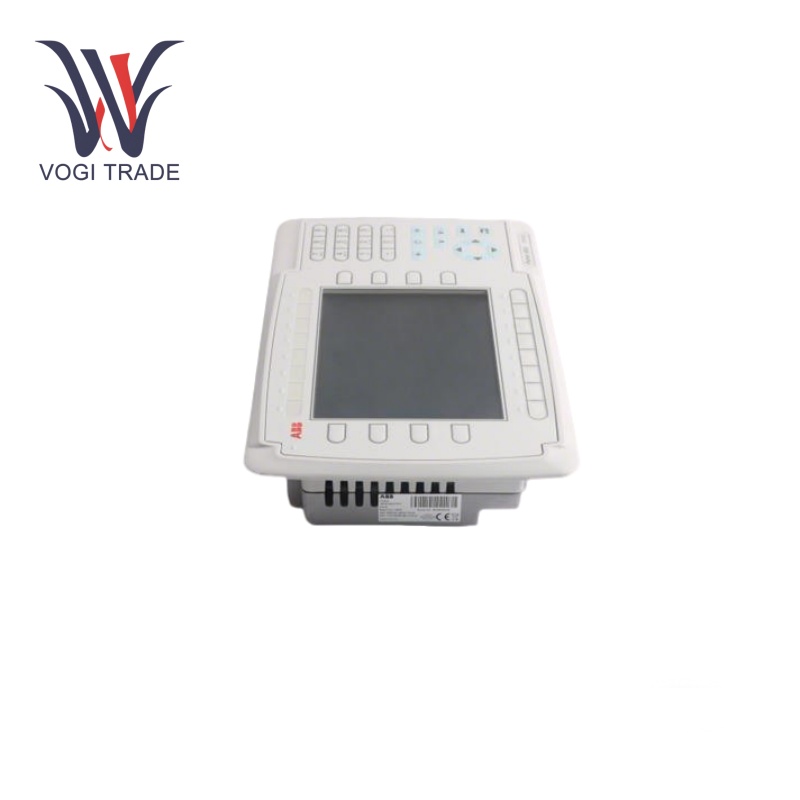

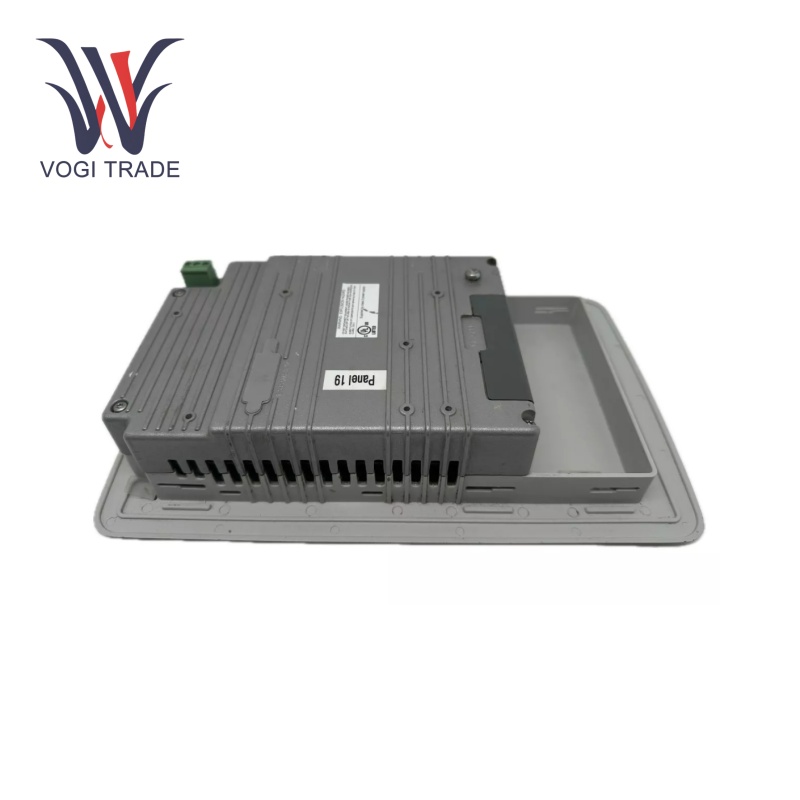

ABB PP836

Operating Parameters

Voltage: Operating voltage is 220v.

Frequency：It outputs 50 kHz frequency exactly

Operating temperature: 0 °C to +50 °C,

Display: Grayscale terminals in PP836 can equip with a high-resolution touch screen(10.4 inch) to visualize the whole process for operators.

Data: All data is stored locally, but the panel can feature an RS-232 printer port, DH+ communication and a keypad.

Surge and Over voltage Protection: Internal protection from surges and voltage, capable even during AC power interruptions.

Toughness: Designed for industrial use, ensuring reliable operation in the harshest conditions.

Product Features

Real Time Monitoring and Control: Operators visualize the process variables, monitor system statuses, control the operations directly from the panel.

Alarm Management: The ABB PP836 panel provides alarm capabilities, including alerting and response to any aberration in the system.

Data Visualization: A visual representation of trends, graphs, and other data visualization to help with decision making.

Recipe Handling: Process a steps to the different set of parameters to perform the appropriate things.

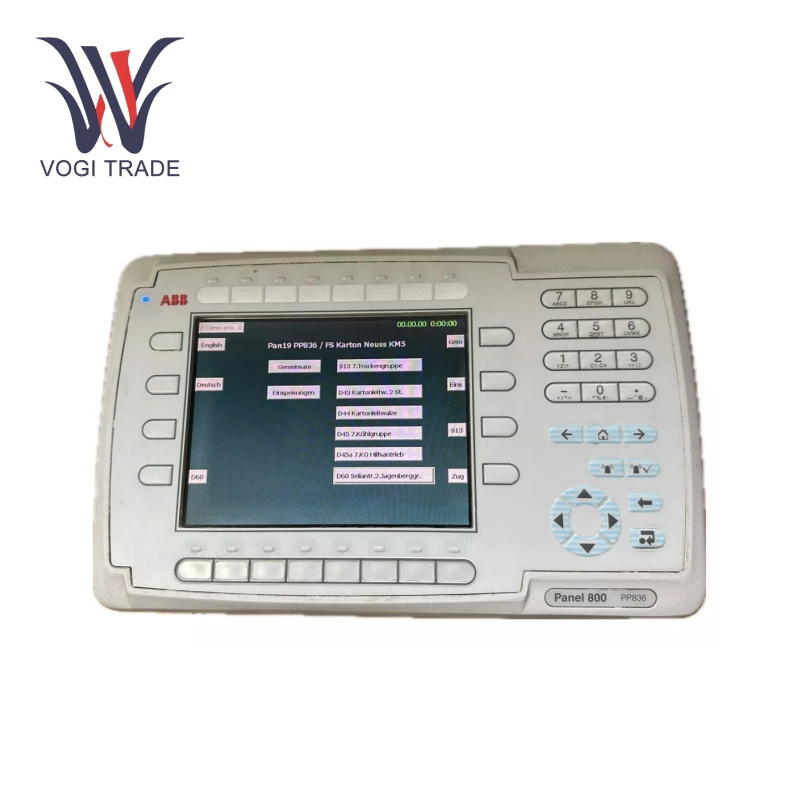

Human Machine Interface: 6.5 inch color touch - screen display that functions as an operator panel. This enables operators to freely interact with industrial processes. This resistive touch - screen design makes it easy to operate, even with gloves on. For instance, in the factory environment; a worker must work on the panel with wearing safety gloves, but still the ABB PP836 touch screen can respond properly.

Monitoring and Control: ABB PP836 is able to monitor and control diverse industrial processes. These include pumps and valves, motors and generators, temperature and pressure, flow and level, safety functions, plus alarms and events. For example, in a water treatment plant it can monitor the flow rate of water through pipes, control opening and closing of the valves, as well as receive an alarm if there is an abnormal pressure.

Installation

Mount: Do not mount the panel where it is not accessible by operators or environmental hazards can affect ABB PP836.

Configuration: Use the Panel Builder 800 software to configure the panel according to your system requirements.

Cable Connection: Attach the cables in the correct sequence. Tighten all connections.

Power Connection: Once all the preceding steps are accomplished, connect the module to the power source.

Application range

Infrastructure: ABB PP836 Used water treatment plants, building automation and other public utilities for system operations.

Manufacturing Sector: Applicable in manufacturing companies for production line automation. It is able to adjust and monitor operations of different machines.

Industry: Implemented in the energy generation plants, it may be steam power, hydroelectric, or wind energy.

Troubleshooting

Displays issues: if the screen is not responding or it shows improperly, double check the power supply and see if there is any physical damage.

Communication Failure: Make sure all the communication cables are properly connected and configured.

Alarm Conditions: Review alarm logs on a regular basis, looking for repeat issues and taking action to mitigate root cause.
