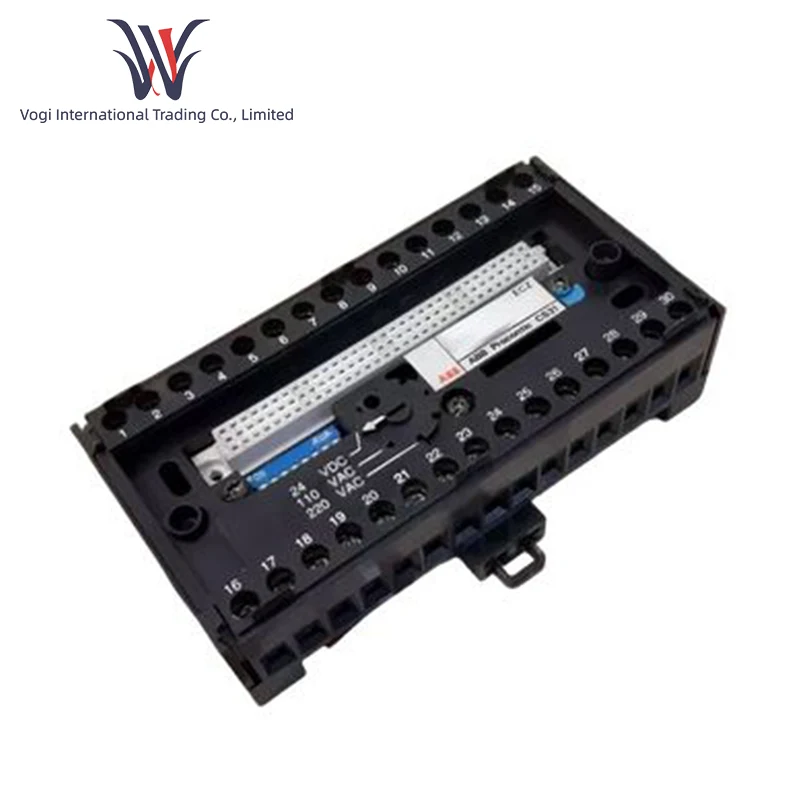

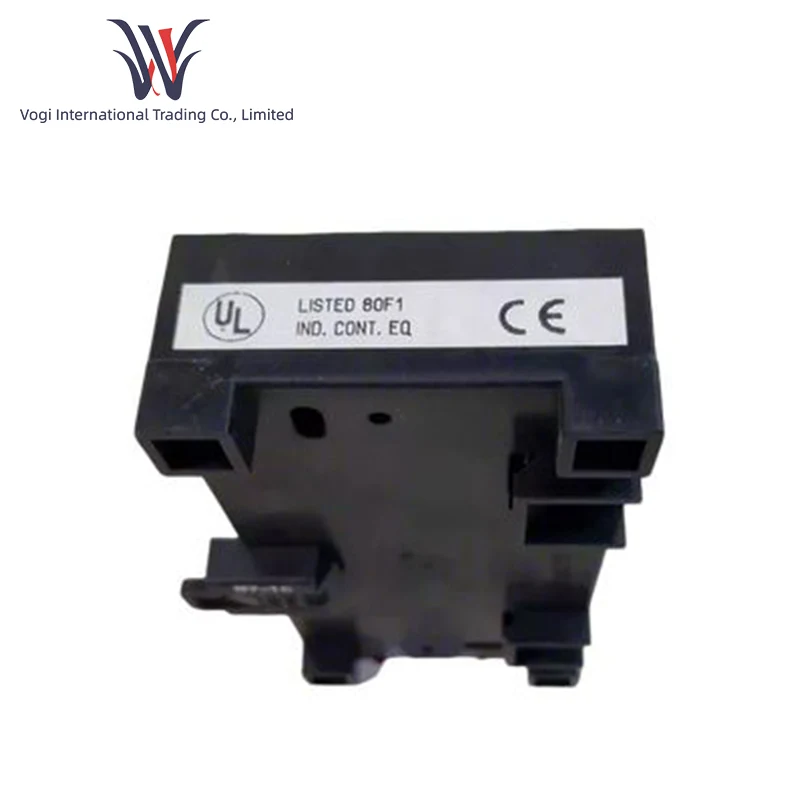

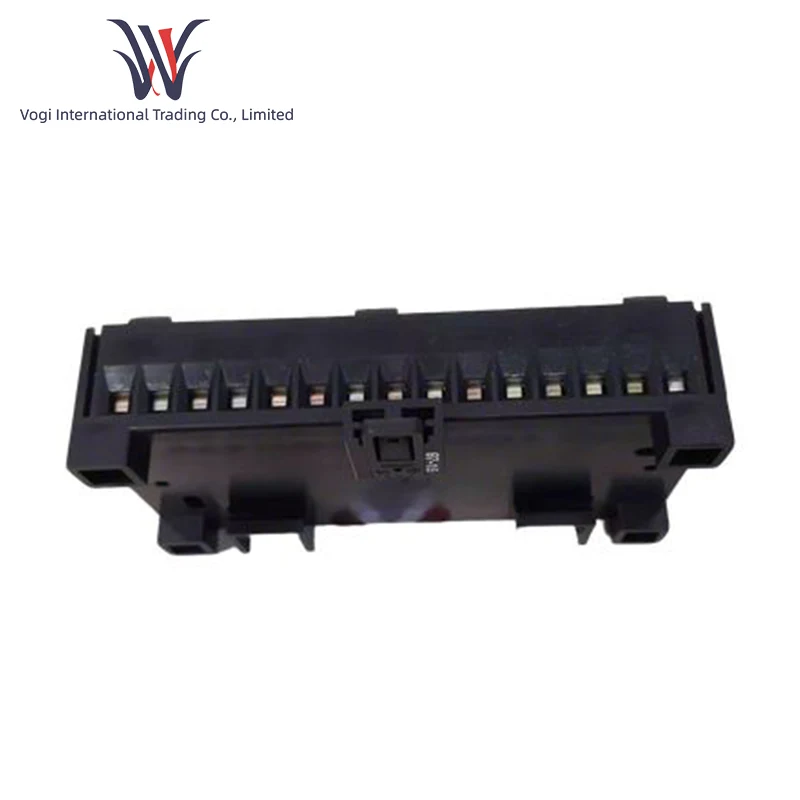

ABB PROCONTIC CS31 ECZ

Introduction

The ABB PROCONTIC CS31 ECZ is an advanced and sophisticated industrial control system that is essential to modern industrial automation. It has a range of outstanding features and functions that can meet the complex requirements of a variety of overlooked industrial processes.

Product Functions

1. Communication Functionality: One of the main functions of the ABB PROCONTIC CS31 ECZ can be said to be its good communication capabilities, in which the CS31 bus communication protocol is used to ensure the integrity and reliability of data transmitted between components within an industrial control network. Due to the high data rate transmission capabilities provided by the CS31 bus, information about process variables, control commands, and operating status can now be exchanged quickly. This fast communication is essential for applications that need to be controlled according to immediate needs. For example, in an integrated manufacturing plant, the CS31 ECZ can communicate with sensors, actuators, and other control devices within a few milliseconds, allowing any changes in the production environment (such as a temperature increase recorded by a sensor) to be communicated directly to the control system so that an appropriate response can be made. In addition, the system can meet the needs of connecting a large number of nodes on the bus, which means that a large number of devices can be supported in one network. In large industrial organizations, the CS31 ECZ may be connected to dozens or even hundreds of sensors, motors, valves, and other devices in a CS31 network. Such extensive interconnectivity provides integrity to the entire industrial process as they can be centrally controlled and monitored.

2. Process control: process functions include very powerful functions provided by the ABB PROCONTIC CS31 ECZ system. It can understand nonlinear control algorithms such as PID (proportional integral derivative) for control. PID control is a commonly used industrial method that ensures stability and high accuracy of variables such as temperature, pressure and flow. In the chemical production process, the CS31 ECZ can change the heating and cooling elements based on the temperature feedback of the sensor and perform PID control within a very narrow temperature range. The controller constantly evaluates the difference between the actual temperature and the prescribed temperature and makes any adjustments to the control output. The end result is that the chemical reaction runs stably and efficiently, ensuring product quality and process safety. The system not only supports PID control, but also has more advanced advanced strategies such as model predictive control. This can better predict the decision-making process they are dealing with, especially in complex and dynamic industrial processes. An example is the CS31 ECZ, which applies model predictive control in power plants, where load fluctuations adjust the generator output based on predictions of future power.

3. Data Acquisition and Monitoring: An important aspect of the CS31 ECZ is data acquisition. It acquires data from a large number of connected devices. The acquired data includes several types, such as analog signals (voltage and current) and digital signals representing on/off and binary information. Using this data collected in monitoring, you can let operators view current data from the human-machine interface module connected to the CS31 ECZ and monitor the variables of the industrial process, the status of the equipment, and any alarm conditions in a graphical visualization. For example, in a water treatment plant, the operator can see the water level in the tank, the water flow in the pipe, and the operating status of the pump and filter on the combined screen. With this form of visual monitoring, any abnormal situation can be quickly identified, including a sudden drop in water level or pump failure. The CS31 ECZ provides storage of historical data for analysis. This historical data can be used to evaluate the performance of industrial processes over time, detect trends, and implement improvements. Historical data on plant energy consumption will help managers identify periods of high energy consumption and initiate energy-saving programs.

4. Redundancy and Reliability: In this case, system reliability is critical. The ABB PROCONTIC CS31 ECZ is equipped with various features to ensure the availability and reliability of services. It is equipped with internal redundancy options. For example, redundant communication paths can be configured to prevent data loss in the event of a communication failure. If there is an inoperative communication link on the CS31 bus, it is possible to switch to one of the alternate communication paths without loss of service.
