ABB RC527 3BSE008154R1 Fan Unit

Product Overview

RC527 is a key heat dissipation component in the ABB Advant Master distributed process control system. The 3BSE008154R1 is defined as a "Fan Unit", and its core function is to provide forced air cooling for the high-power electronic modules installed in the Equipment Frame of the AC 400, ensuring that the entire control system can operate stably and reliably for a long time under the specified ambient temperature.

In a large DCS like Advant Master, which is used in critical industrial processes, the controller rack integrates a large number of densely arranged electronic components inside, generating considerable heat. If the heat cannot be dissipated in time, it will cause the internal temperature of the equipment to rise sharply. In mild cases, 3BSE008154R1 may lead to system instability and communication errors; in severe cases, RC527 may cause overheating and damage to components, resulting in serious production accidents. The RC527 fan unit is the dedicated hardware to solve this problem and is an important part of ensuring the reliability of the physical layer of the system.

Product Specifications and Parameters

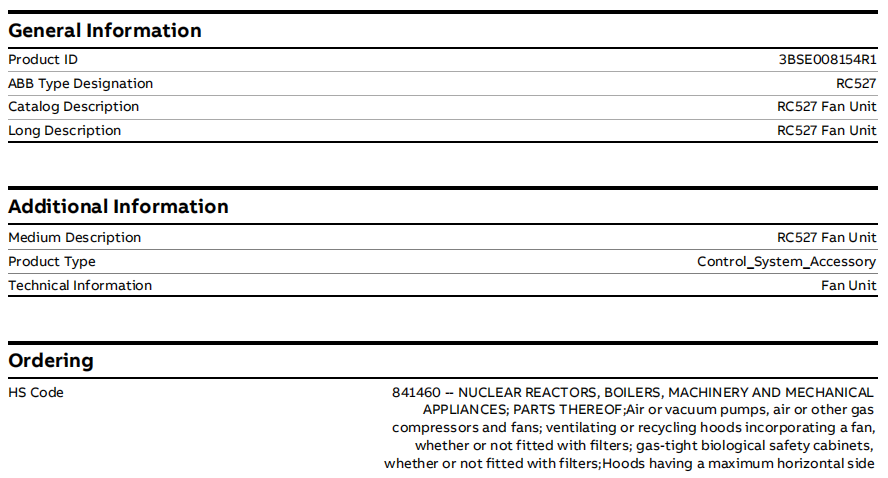

Product Model               RC527

Ordering number           3BSE008154R1

Product type                 Fan Unit

System to which            Control System Accessories for Advant Controller 450 / AC 400

Physical dimensions

Net length/depth          385.2mm

Clear width                  261mm

Clear height                 49.5mm

Net weight                   2.8 kg

Compliance

RoHS                          Not RoHs Compliant

WEEE                         Class 5 - Small Equipment

Product Functional Features

Designed specifically for AC 400 racks

The physical dimensions of RC527, 385.2 x 261 x 49.5mm, are specifically designed for the fan slots of AC 400 standard equipment racks, allowing for seamless installation and ensuring unobstructed airflow paths.

The internal fan layout and air duct design are intended to generate sufficient air volume and pressure to penetrate the densely arranged modules within the rack and effectively expel heat from the rear or top of the chassis.

Ensure the high availability of the system

Through continuous forced convection, 3BSE008154R1 can maintain the operating temperature of the key components inside the rack within a safe range, avoiding performance degradation or hardware failure caused by overheating.

A stable low-temperature operating environment can significantly extend the service life of electronic components and reduce the life cycle cost of the entire control system.

Maintain friendliness

As an independent Unit, the RC527 can be quickly disassembled and replaced as a whole without the need for extensive disassembly of the entire rack.
