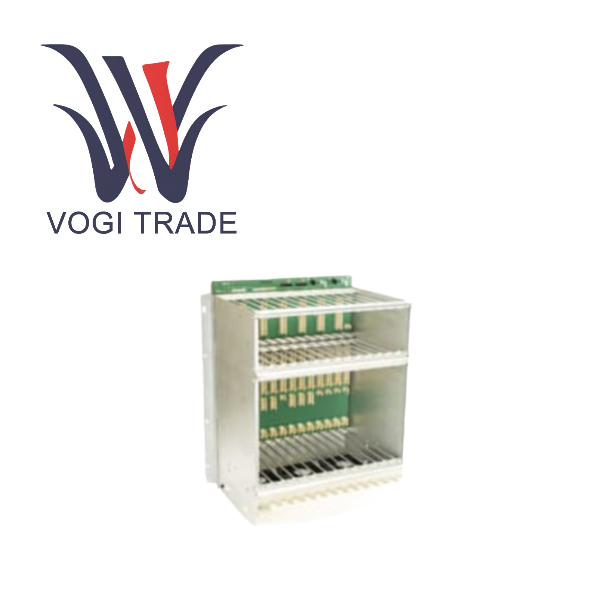

ABB RF522 3BSE000743R1

Product Overview

The ABB RF522 3BSE000743R1 is a core hardware component in the ABB Advant Master distributed process control system, which is defined as "18SU sub-rack". The RF522 is not an independent controller but a modular installation platform and electrical interconnection hub, used to accommodate and connect various functional modules of the ABB AC 400 series, such as the central processing unit, communication module, I/O module, power module, etc. The RF522 provides physical support, unified power distribution, and high-speed, reliable internal data communication bus for these modules. As the basic unit of the Advant Controller 450 control system architecture,  3BSE000743R1 is a crucial role in building reliable and scalable industrial automation and process control solutions, especially suitable for critical application scenarios with strict requirements for system redundancy, availability, and long-term stability.

Product Function Features

The modular system foundation

The RF522 is the physical carrier of the ABB AC 400 control system. The rack allows users to flexibly "insert" different functional modules according to specific application requirements, achieving customized configuration of the system.

Integrated high-performance backplane

The built-in 18SU backplane is the nervous system of the sub-rack. Providing a stable and isolated DC power for all slots. More importantly, the system realizes high-speed, parallel data bus communication between modules, ensuring low-latency, high-throughput data exchange between the CPU, I/O, and communication modules, which is the basis for achieving fast control loops and real-time responses.

High reliability and robustness

As an industrial-grade product, the RF522 adopts a sturdy metal structure design, capable of withstanding vibrations, shocks, and temperature fluctuations in factory environments. The design complies with strict standards for industrial control equipment, ensuring long-term fault-free operation in critical task applications.

Support for system redundancy

The ABB AC 400 system architecture supports multiple redundancy configurations. The design of the RF522 sub-rack fully considers this, and the backplane and power distribution system can seamlessly support the installation and switching of redundant modules, significantly enhancing the availability and fault-tolerant capability of the entire control system.

Easy maintenance and expansion

The modular design makes maintenance simple. When an I/O module or communication module fails, it can be easily replaced during system operation or when the system is shut down, without affecting the entire rack. The expansion of system functions only requires adding new modules to the vacant slots.

Standardization and compatibility

The RF522 strictly follows the mechanical and electrical specifications of the ABB AC 400 series, enabling plug-and-play compatibility of all compatible modules, simplifying engineering design and on-site debugging work.
