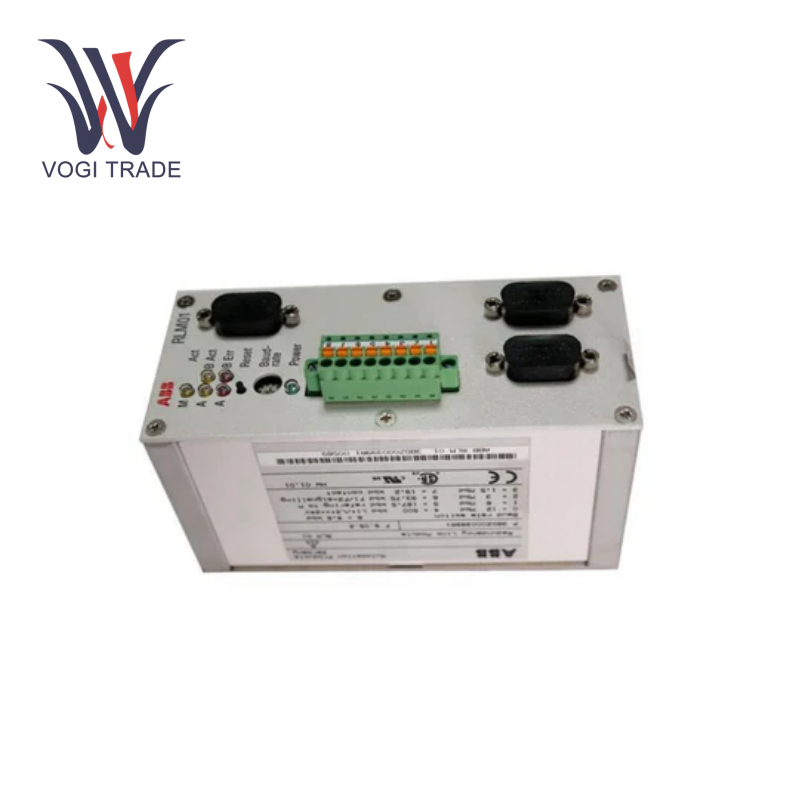

Brand: ABB Description: Redundancy Link Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 18 Payment Term: T/T Shipping Port: ShenZhen ABB RLM01 provides the ability to program logic for automatic load shedding, critical low prioritizing and time-based load control, allowing the user to reduce costs by shifting or capping non-critical loads when unit demand is highest.
|
Manufacture |
ABB |
|
Model Number |
RLM01 |
|
Ordering Number |
3BDZ000398R1 |
|
Catalog |
800xA |
|
Country Of Origin |
Sweden |
| HS CODE |
8517620000 |
|
Dimension |
17.55cm*10.35cm*9cm |
|
Packing Dimension |
20cm*13cm*11cm |
|
Weight |
0.46kg |
Operating voltage: 24V DC.
Power consumption: 150mA.
Power loss: approx. 3.6W.
Connection: 8 - pin terminal strip.
Wire cross - section: 0.14 - 1.5 mm².
Serial interfaces: Connections A, B and M.
Transmission rate: 9.6 kbps to 12 Mbps.
Connection: 9 - pin sub - D connector
Electrical isolation: VDE 0110, functionally isolating.
Test voltage: 500 Veff.
Operating temperature: 0 - 50 °C.
Transport/storage temperature: - 30 - 85 °C.
Relative humidity: 75% non - condensing in operation.
Functional Features
Conversion of redundancy: ABB RLM01 can convert a non - redundant Profibus line into two redundant lines and vice versa, it works like an active switch, can combine the field devices with a single Profibus DP interface into a redundant Profibus network.
Signal Amplification and Monitoring: ABB RLM01 amplifies the signal prong and amplitude of the incoming data and monitors the line activity and error status of the three lines.
Transparent Configuration: It is transparent for Profibus configuration, meaning no slave address is required.
High Station Capacity: Each Profibus interface of RLM01 can serve up to 31 Profibus stations, and the number can be extended by using repeaters.
Application Areas
Process Control: In specific sectors like chemical, pharmaceutical, and food processing, ABB RLM01 can be applied to redundant Profibus networks in process control systems to ensure the continuous and stable operation of the control system, thereby ensuring the quality and safety of the production process.
Industrial Automation: In industrial production lines, it is used to ensure the smooth operation of Profibus - based automation equipment, such as programmable logic controllers (PLCs) and frequency converters, improve the stability and reliability of the entire production process.
Marine Applications: ABB RLM01 is ideal for ships and maritime systems such as in the automation control systems of ships' engines, navigation equipment, and cargo handling systems, providing reliable communication redundancy protection for use in harsh marine environments.
