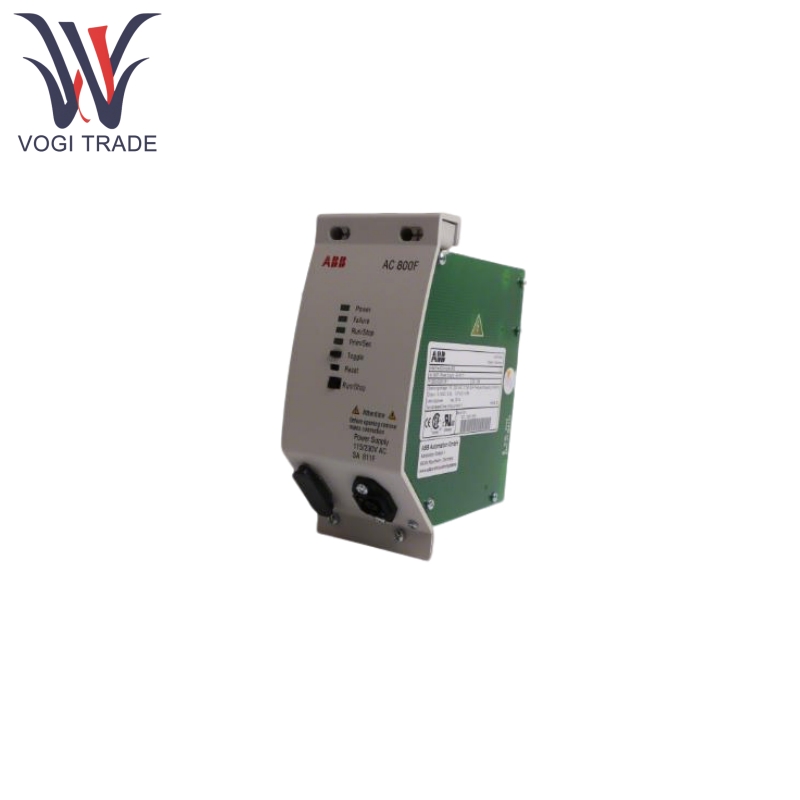

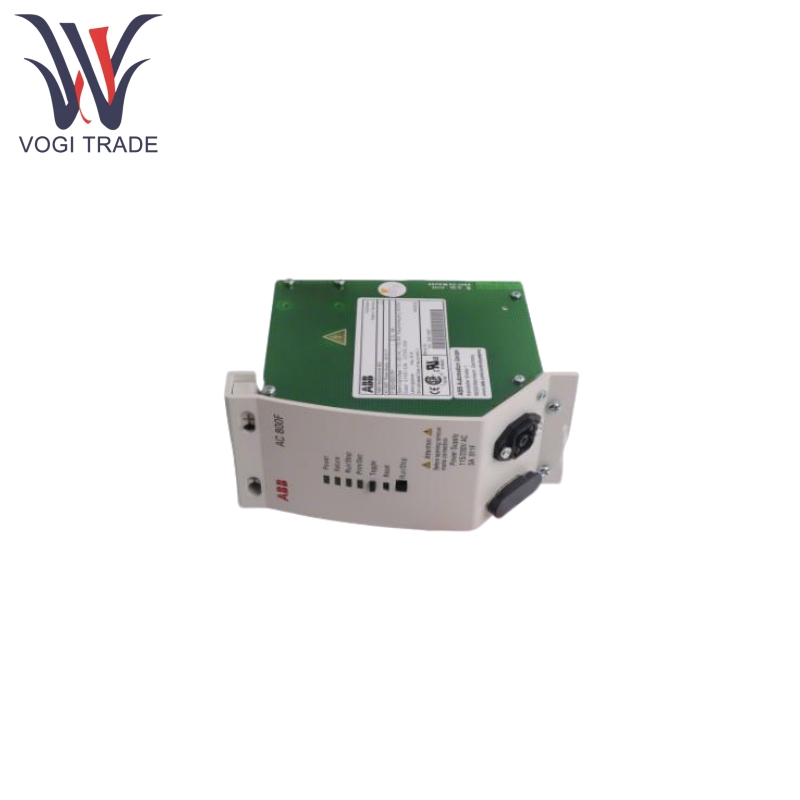

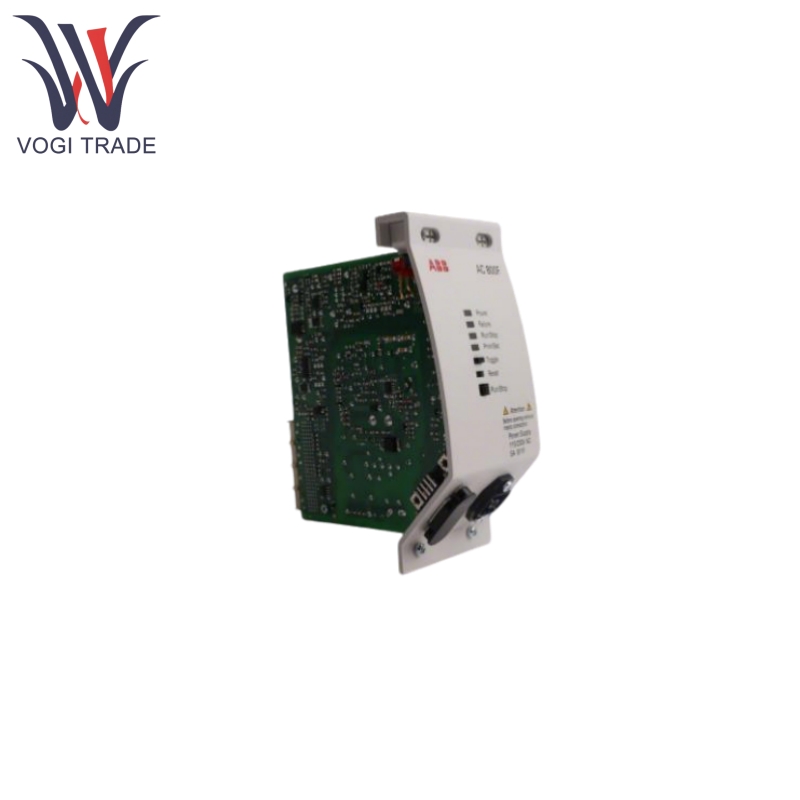

Brand: ABB Description: Power Supply Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen ABB SA811F 3BDH000013R1 core function is to convert alternating current (AC) into stable direct current (DC) to provide reliable power support for critical control equipment.
|
Manufacture |
ABB |
|
Model Number |
SA811F |
|
Ordering Number |
3BDH000013R1 |
|
Catalog |
AC 800F |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
16*16*8cm |
|
Weight |
0.6kg |
Product Features
ABB SA811F 3BDH000013R1 efficiency exceeds 90%, with the standard model achieving approximately 89% efficiency, thereby reducing energy consumption and heat generation.
ABB SA811F 3BDH000013R1 supports 115-230 VAC input, with the standard model covering 85-265 VAC, ensuring compatibility with global power grid standards.
ABB SA811F 3BDH000013R1 provides protection against overvoltage, overcurrent, and short circuits, ensuring safe operation under abnormal conditions.
ABB SA811F 3BDH000013R1 offers power failure signal output with a minimum output hold time of 20ms, facilitating system redundancy switching.
ABB SA811F 3BDH000013R1 uses screw terminals for connection and supports DIN rail mounting, simplifying wiring and maintenance.
Product Using Principle
ABB SA811F can convert input AC power into high-voltage DC power.
ABB SA811F can adjust the output voltage through PWM (pulse width modulation) technology to ensure accuracy (such as ±1%).
ABB SA811F can eliminate voltage ripple and output pure DC power.
ABB SA811F can monitor current and voltage in real time through sensors and trigger the protection circuit to cut off the output in case of abnormalities.
Product Parameter
The following detail is for ABB SA811F 3BDH000013R1 Power Supply Module.
|
Parameter |
Value |
|
Input Voltage |
115-230 VAC (50/60 Hz) |
|
Output Voltage |
24 VDC ±1% |
|
Output Current |
10 A |
|
Maximum Power |
240 W |
|
Operating Temperature Range |
-20°C to +60°C |
|
Protection Class |
IP20 (dust protection) |
|
Input Filtering |
Integrated EMC filter with strong anti-interference capability |
