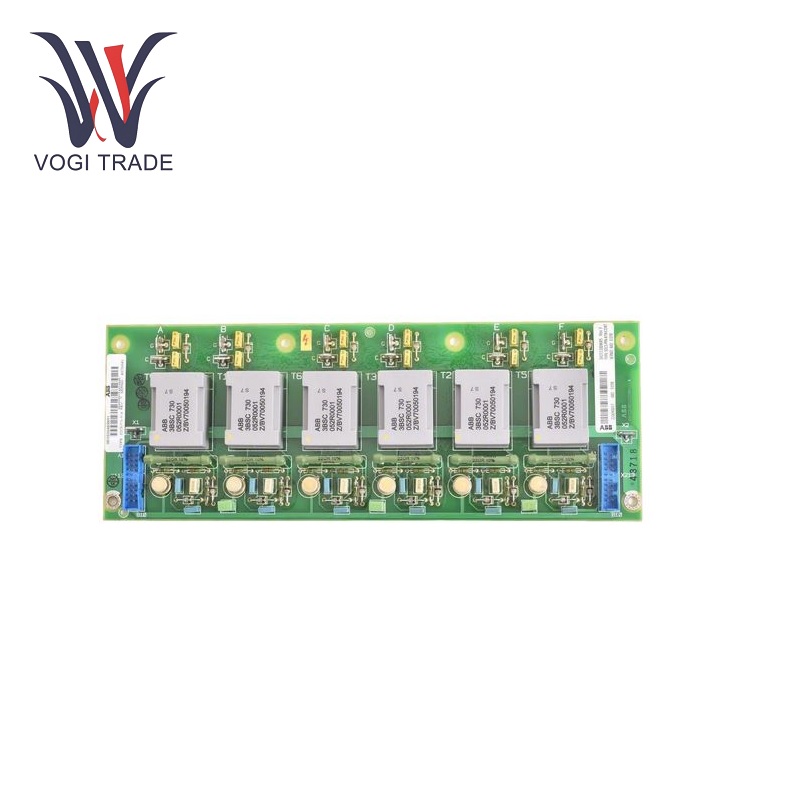

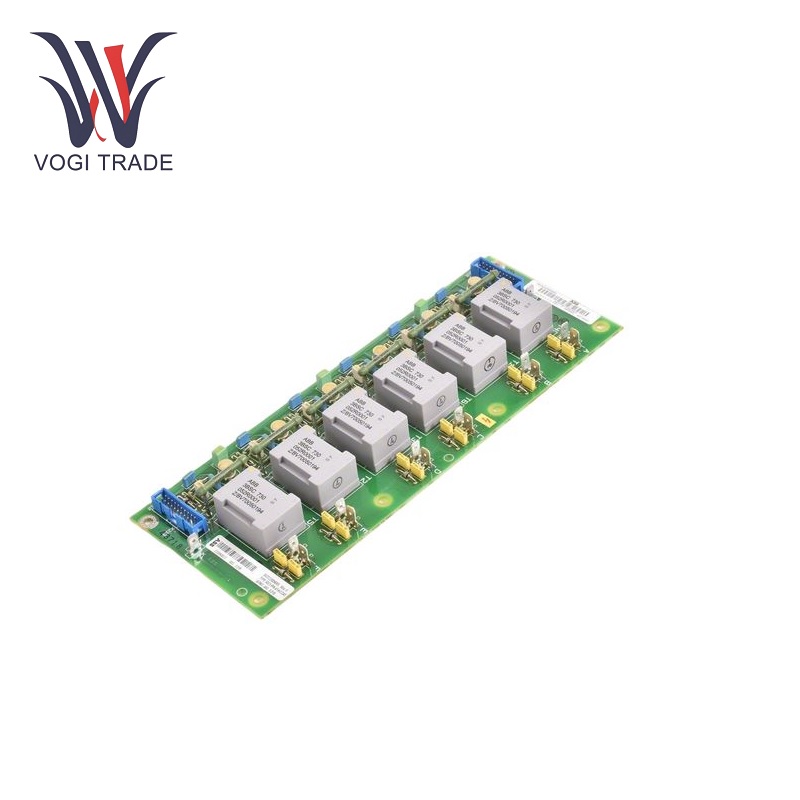

ABB SDCS-PIN-41A

Technical Parameters

Operating temperature range:  -10°C - +55°C

Storage temperature range:  -25° to +70°

Humidity adaptation range: 5% to 95% without condensation

Input voltage range: 24-230V AC/DC

Output voltage specification: 24V DC.

Maximum current output: 100mA;

Conversion frequency range: 50Hz-60Hz

Response time: when the input signal changes or the control command arrives, the corresponding output adjustment can be made in a short time, so as to achieve fast and precise control requirements in high-performance applications such as active braking systems.

PLC integration: realize integrated docking, conveniently integrate into the industrial automation control system with ABB PLC as the core, realize accurate conversion and transmission of pulse signals according to the control command issued by PLC, and improve the coordination and scalability of the whole system.

Features

Flexibility: ABB SDCS-PIN-41A is compatible with a wide range of ABB drive systems and other related industrial components. It can also be seamlessly integrated with a variety of motors, drives and sensor types, facilitating the development of comprehensive, tailored automation solutions.

Designed for busy people: Engineers can configure it using simple software settings or unique configuration tools. From defining input and output mapping, configuring control loop parameters or communication settings, the device can be easily customized according to application requirements.

Diagnostic function: ABB SDCS-PIN-41A continuously detects its own operating status and the operating status of connected devices. Once any fault or abnormal situation occurs, including communication errors, electrical faults of connected components, control algorithm failures, etc., it will immediately output detailed error information and issue an alarm.

Control strategy: ABB SDCS-PIN-41A can effectively control key parameters such as motor speed and torque, so that the drive equipment can achieve optimal performance and improve the overall energy efficiency of industrial equipment.

Applications

Manufacturing: ABB SDCS-PIN-41A is used in electronic manufacturing production lines to drive motors for pick-and-place robots, conveyor belts for moving parts, and other automated equipment. It does this by precisely coordinating and handling multiple devices, thereby improving production efficiency and product quality.

Food and Beverage Industry: The ABB SDCS-PIN-41A drive is used in motor control for mixers, packaging line conveyors, and ingredient delivery pumps in the food and beverage industry. This stable performance, coupled with the ability to meet strict hygiene and safety requirements, makes it a perfect choice for such applications.

Building Automation: ABB SDCS-PIN-41A can regulate the operation of elevators, heating, ventilation, air conditioning motors, and other mechanical equipment, which will help achieve energy savings and a comfortable neighborhood environment through precise control and monitoring.
