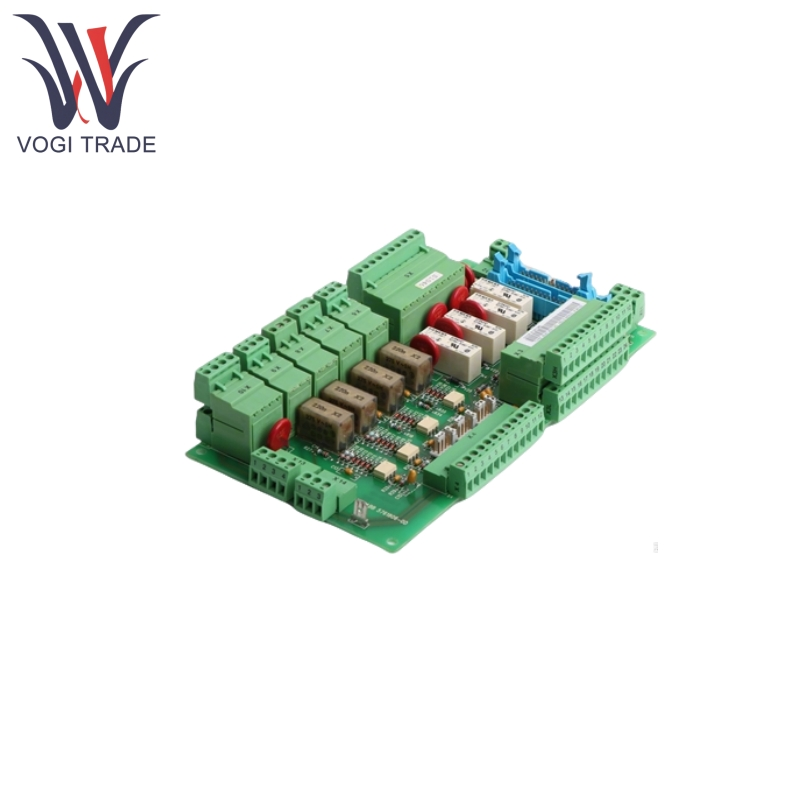

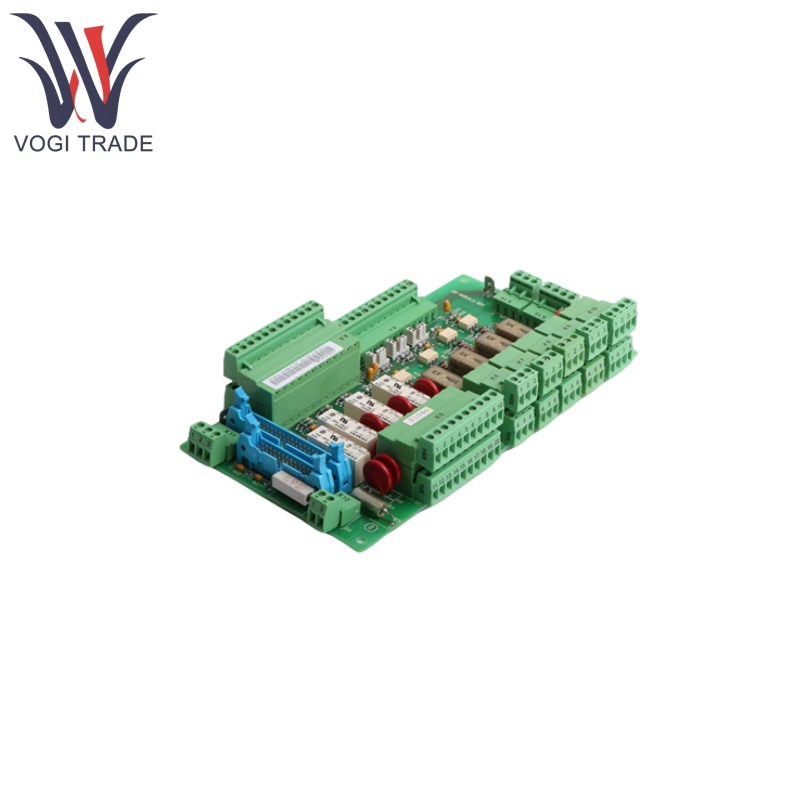

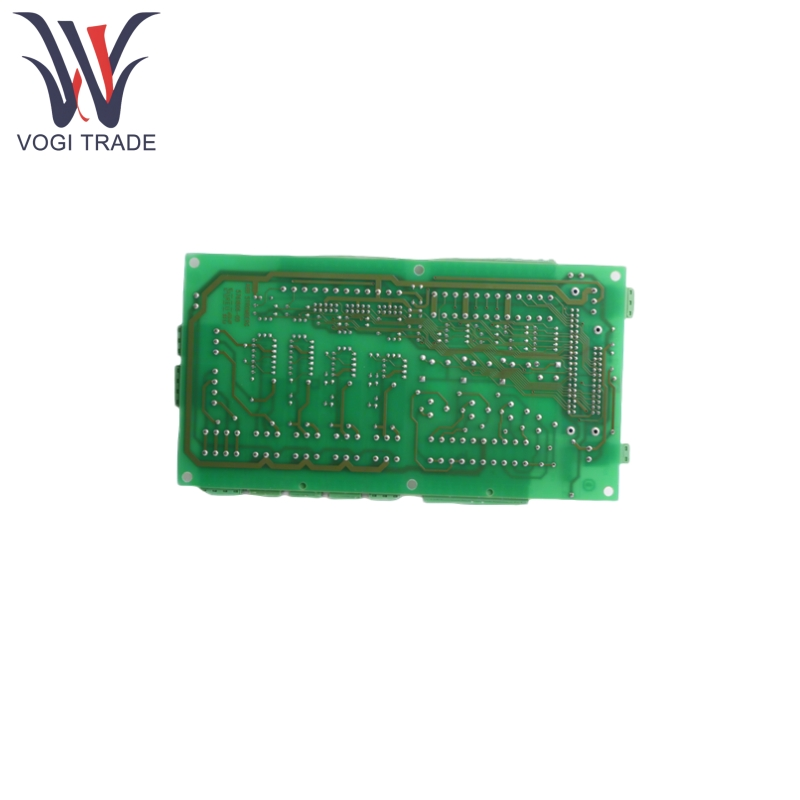

ABB SNAT 602

Product Features

ABB SNAT 602 continuously monitors voltage, frequency, and phase parameters of two power sources, performing waveform analysis via a DSP chip.

ABB SNAT 602 built-in fuzzy control algorithm triggers switching logic when the main power source deviation exceeds ±15%.

ABB SNAT 602 employs silver alloy contact relays with arc-extinguishing circuits to achieve spark-free switching, ensuring a lifespan exceeding 100,000 cycles.

ABB SNAT 602 integrates a 16-bit ADC with a sampling rate of 100kSPS, supporting 4-20mA/0-10V analog signal inputs.

ABB SNAT 602 digital signal processing unit enables complex operations such as PID control and FFT spectrum analysis.

ABB SNAT 602 utilizes an ARM Cortex-M4 core at the base level, with a protocol stack supporting multithreaded concurrent processing, enabling simultaneous connection to 8 Modbus devices.

ABB SNAT 602 supports the OPC UA standard, allowing direct integration with industrial IoT platforms for remote monitoring.

Typical Use Cases

ABB SNAT 602 can be used in smart grid sector, industrial automation production lines, data center infrastructure etc.

Smart Grid Sector:

Substation backup power automatic engagement system, ensuring continuous power supply to critical equipment.

Grid integration control for distributed energy sources, enabling dynamic adjustment of active/reactive power.

Industrial Automation Production Lines:

Robotic workstations in automotive welding shops, achieving time-slotted power supply and fault isolation for multiple welders.

Smart distribution panels for food packaging lines integrating voltage monitoring, energy consumption statistics, and equipment interlocking.

Data Center Infrastructure:

Dual-power redundant management for server cabinets supporting N+1 backup architecture with <20ms switching time.

Power optimization for precision air conditioning systems reducing PUE through load balancing.

Technical Parameters and Performance Specifications
