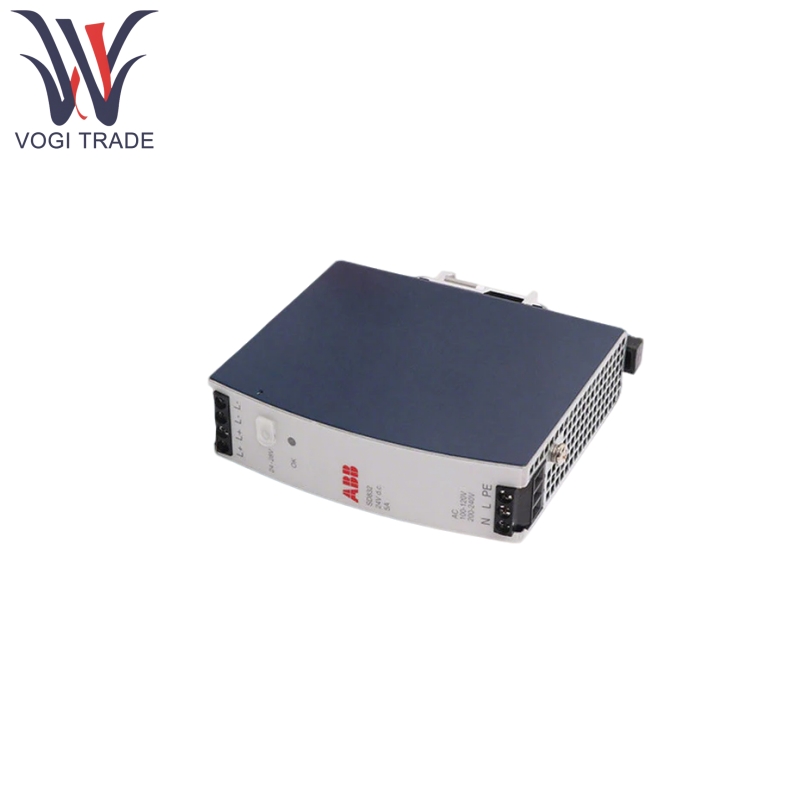

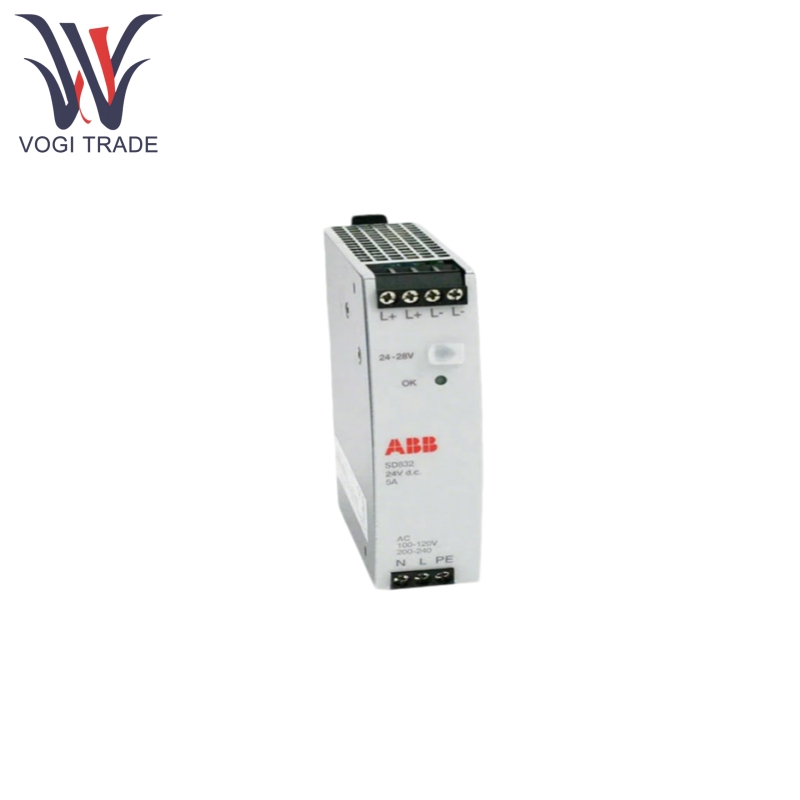

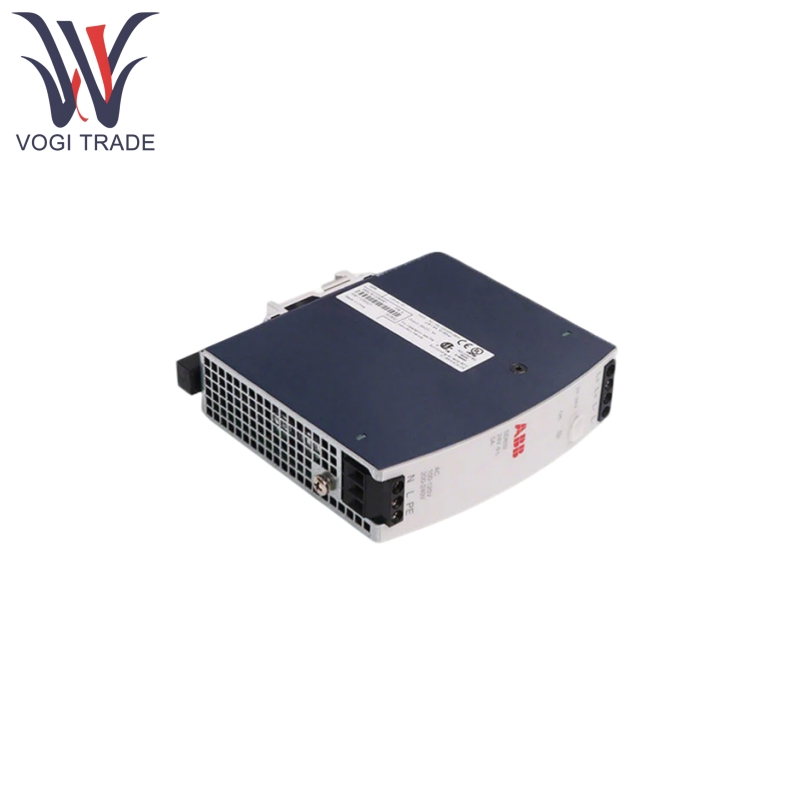

Brand: ABB Description: Power Voting Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB SS832 3BSC610068R1 is used as a control unit to connect the outputs of two power supply units. The core functions include separating the redundant power supply units, monitoring the supply voltage, generating monitoring signals and transmitting them to the power-using equipment. In addition, its trip level is factory preset and does not require field adjustment.
|
Manufacture |
ABB |
|
Model Number |
SS832 |
|
Ordering Number |
3BSC610068R1 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8504409999 |
|
Dimension |
14*12*4cm |
|
Weight |
0.4kg |
Product Features
ABB SS832 3BSC610068R1 supports DIN rail mounting, simplifying field deployment.
ABB SS832 3BSC610068R1 is a Class I device with a protective earth PE connection for overvoltage category III connected to the mains TN network. the secondary and primary circuits are protectively separated and compatible with SELV (Safe Extra Low Voltage) and PELV (Protected Extra Low Voltage) applications.
ABB SS832 3BSC610068R1 has overcurrent protection (current limiting) and overvoltage protection (OVP) for safe equipment operation.
A green LED provides a visual indication that the output voltage is normal, is equipped with a monitoring relay that generates a voltage status signal (transmitted via the “OK connector”).
Product Using Principle
ABB SS832 3BSC610068R1 input is connected to the outputs of two power supply units to realize the physical separation of redundant power supply.
It monitors the input voltage status in real time and determines whether the power supply is normal or not through internal logic.
If the voltage is normal, the green LED at the front end lights up and the no-voltage contact closes, transmitting a normal signal to the “OK connector”.
When the power supply is abnormal, it triggers the preset trip protection (factory preset threshold) and feeds back the status through the monitoring relay to ensure the safety of the back-end power equipment.
Product Parameter
The following detail is for ABB SS832 3BSC610068R1 Voting Unit.
|
Category |
Detailed Parameters |
|
Type |
Voter |
|
Rated output current |
10 A (20 A in parallel operation) |
|
Rated input power |
2×10 A |
|
Mains/input voltage, nominal |
2×24 V d.c. |
|
Heat dissipation |
18 W |
|
Output voltage regulation at max. current |
0.85 V typ. |
|
Maximum output current (Overload) |
25 A |
|
Maximum ambient temperature |
55 °C |
|
Secondary: Short circuit |
Max 25 A RMS |
|
Supervision relay |
Yes |
