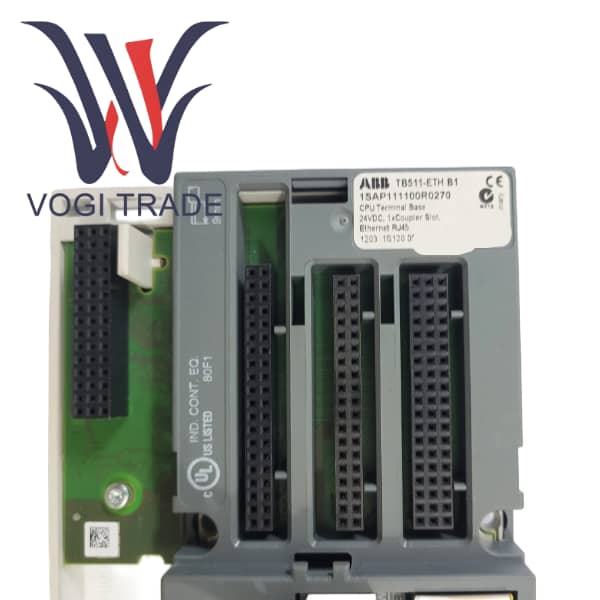

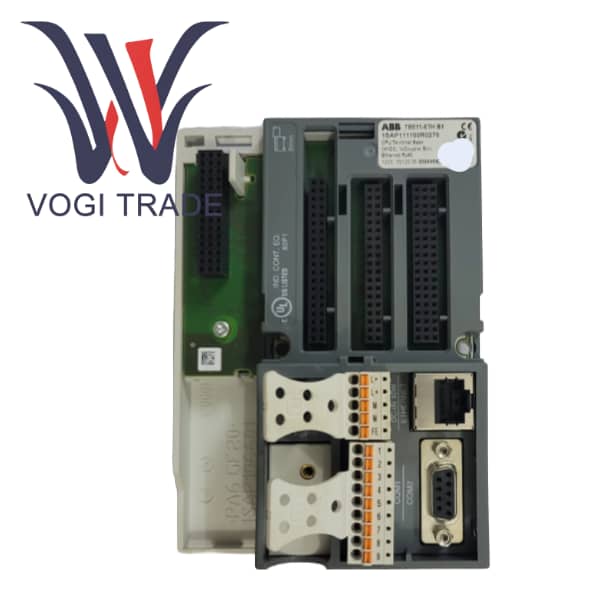

Brand: ABB Description: I/O Terminal Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Xiamen ABB TB511-ETH 1SAP111100R0270 is a terminal base with an Ethernet interface for ABB AC 500 series programmable logic controllers.
|
Manufacture |
ABB |
|
Model Number |
TB511-ETH |
|
Ordering Number |
1SAP111100R027 |
|
Catalog |
S500 I/O |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|

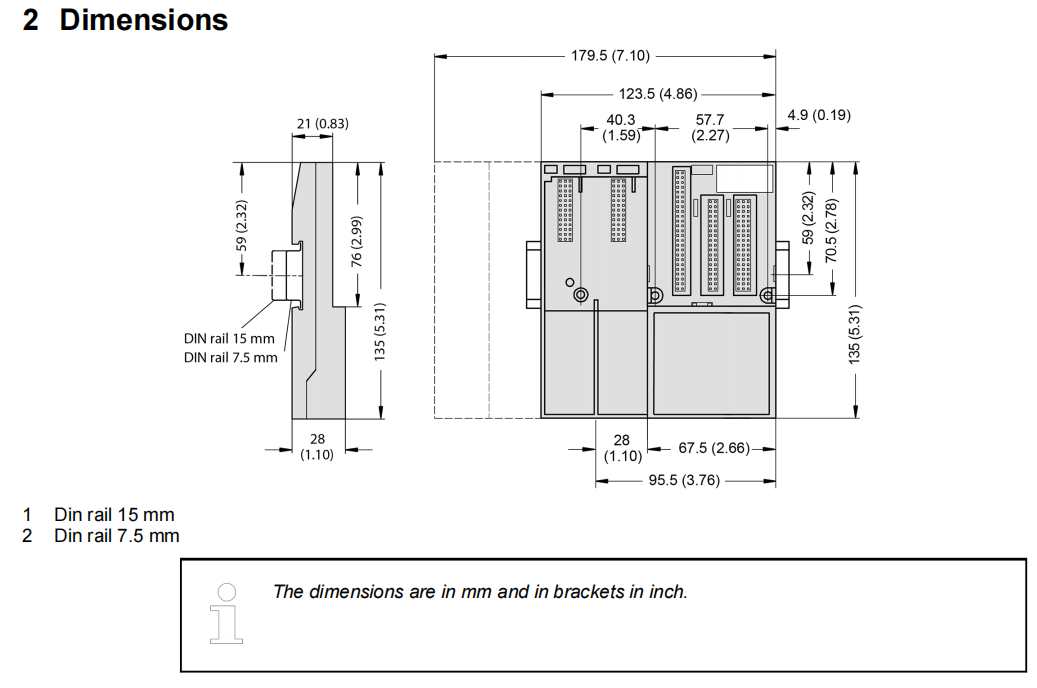

Dimension |
14*8*4cm |
|
Weight |
0.2kg |
Product Overview
TB511-ETH is a compact, integrated terminal base designed by ABB for the AC 500 series modular PLC. 1SAP111100R0270 is not only a physical installation platform for the CPU processor module and communication module, but also integrates local I/O bus, power distribution, communication interface and key Ethernet connection functions.
This base adopts an "integrated" design, directly integrating the Ethernet communication ports that usually need to be configured separately onto the base. Users only need to insert the AC 500 CPU module into its sole processor slot and choose whether to install additional communication modules in the communication slot as needed to immediately obtain a complete PLC station with an RJ45 Ethernet interface. This built-in Ethernet interface supports the standard TCP/IP protocol and is used to implement PLC programming, HMI/SCADA communication, Web server access, and PLC-to-PLC data exchange. TB511-ETH is an ideal starting point for building small to medium-sized automation applications or serving as a distributed I/O master station.
Comparison of similar products
|
Comparison dimension |
TB511-ETH |
TB521-ETH |
TB523-2ETH |
TB541 |
|
Processor slot |
1 |
1 |
1 |
1 |
|
Communication slot |
1 |
2 |
2 |
4 |
|
Integrated Ethernet |
1 (RJ45) |
0 |
2 | 0 |
|
Maximum current consumption |
0.35 A |
0.4 A |
0.4 A |
0.6 A |
|
Main advantages |
The most compact and lowest-cost solution with network ports |
Balanced communication expansion capability |
Dual network port redundant/separated network |
Ultimate communication expansion capability |
|
Typical applications |
Small single machines, OEM equipment, simple process control |
Medium-sized applications that require 1-2 additional types of communication |
Critical applications that require network redundancy or IT/OT separation |
Large and complex systems, gateway applications |
Key points to note
The power supply specification ensures that the capacity of the external 24V DC power supply is sufficient. It not only needs to meet the 0.35A requirement of TB511-ETH, but also take into account the total current consumption of the CPU and all I/O modules, with a certain margin left.
The entire PLC station must be connected to a good protective ground to ensure electromagnetic compatibility and operational safety.
Although TB511-ETH is compatible with all AC 500 cpus, please make sure that the firmware version of the selected CPU is compatible with your engineering software.
When using it for the first time, you need to set the IP address of the built-in Ethernet port through the serial port (COM1) or by using ABB's IP configuration tool, so as to facilitate subsequent programming and communication via Ethernet.
