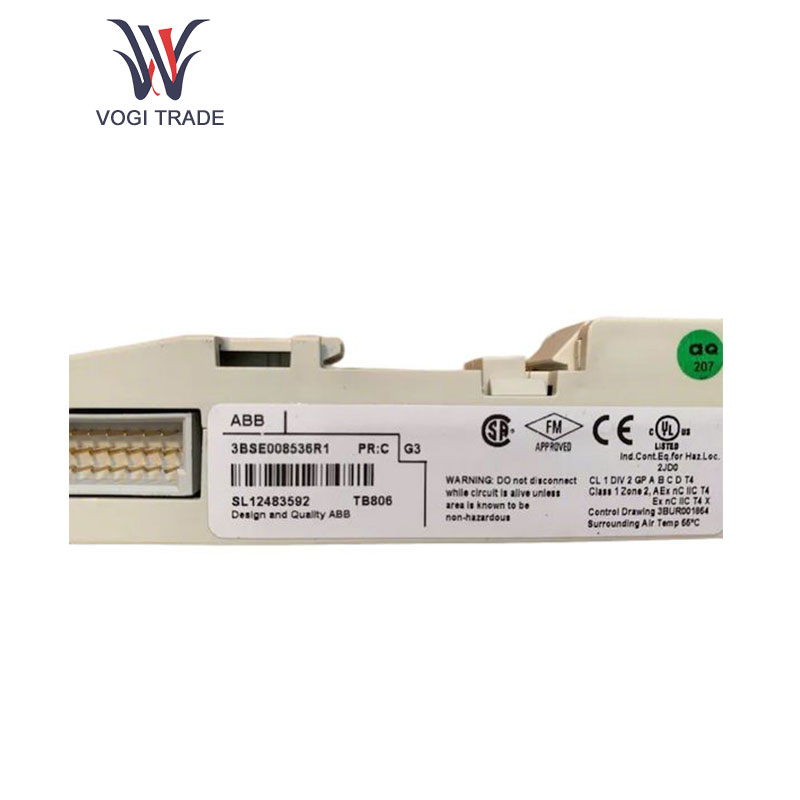

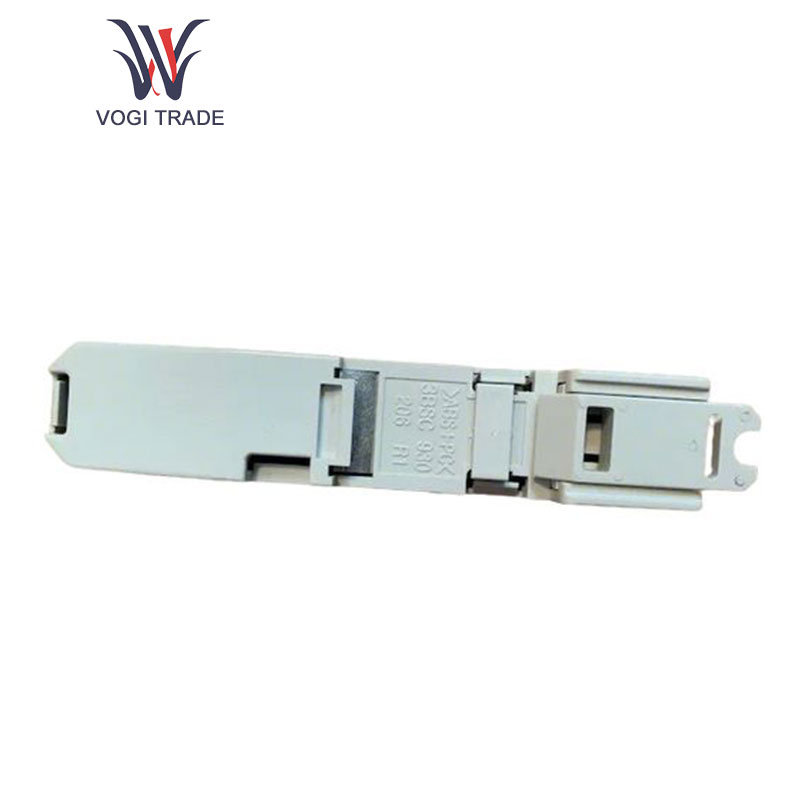

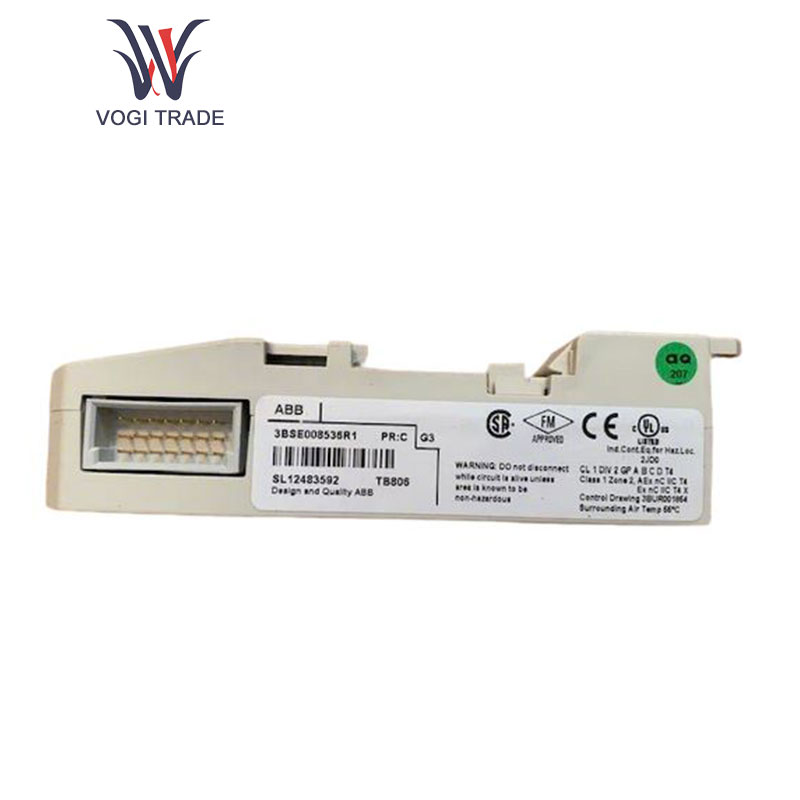

ABB TB806

Details

1. Usage Parameters

Working voltage: Generally, AC220V, fits the common industrial power environment, and TB806 permits stable operation within a still considerable voltage fluctuation range to provide a continuous power supply for the system.

Output frequency: 50Hz, falling in line with the standard power system frequency, so that devices function under normal frequency and are provided with frequency-specific electrical equipment.

Environmental Adaptability: ABB TB806 can work within a temperature range of 0℃ +55℃, store with a temperature fluctuation of-25℃ +70℃, and longevity with a relative humidity of 5%-95% without condensation. The adaptability of such environmental parameters permits it to operate with swiftness under various harsh industrial conditions.

Protection level: The protection level of IP20 effectively prevents any object which may intrude into it and directly damage the interior parts of the system.

2. Product Function

Bus Expansion: The ABB TB806 module bus cable adapter is usually used in tandem with TB805 and TK801 to extend the module buses in order that the I/O modules on the same electrical module bus can be mounted on different DIN rails. TB806 installation elaborately enhances flexibility and scalability of the system layout and enables users to scale or upgrade the system as per their requirements.

Signal Transmission and Conversion Function: In effecting correct signal transmission and conversion, TB806 guarantees accurate interaction of data between different devices and systems, enables accurate coupling of various sensors, actuators, and other equipment to the control system, thereby performing precise supervision and control of the production processes.

Compatibility and Versatility: Highly compatible with ABB and other suppliers' process controllers, the TB806 device can effectively interconnect with multiple equipment and systems, leading to data generalization and collaboration, significantly minimizing system integration difficulties and system integration costs, therefore offering users concrete options and ease.

Diagnosis and Monitoring: ABB TB806 module incorporates adequate and effective diagnostic and monitoring capabilities. At the same time, indicator lights or communication interfaces inform users of the module's operating status in straightforward terms such that potential hazard conditions can be promptly identified and fault recovery operations performed to enhance system reliability and maintainability.

3. Application Field

Industrial Automation: In industrial production lines like automobile assembling, electronics manufacturing, food processing, etc., it supplies PLC, inverter, motor controllers, etc. with a stable power supply and reliable control signals ensuring continuity and stability of the production process.

Energy management: includes energy optimization, wind power generation system, petrochemical, steel metallurgy, and other energy-related areas that involve monitoring and management of energy equipment for a rational distribution and utilization of energy and thus a decrease in energy consumption and production cost.

Intelligent buildings: ABB TB806 is suitable for air conditioning and refrigeration systems, HVAC systems, etc., in intelligent buildings. It can effectively perform automatic adjustments of environmental parameters in a building and remote control of equipment to increase the comfort and energy efficiency of buildings.

Municipal Engineering: In municipal pumping stations, municipal engineering, environmental protection engineering, and other fields, TB806 plays control over and monitors relevant equipment, thereby permitting normal operation of municipal works and increasing urban infrastructure management level.
