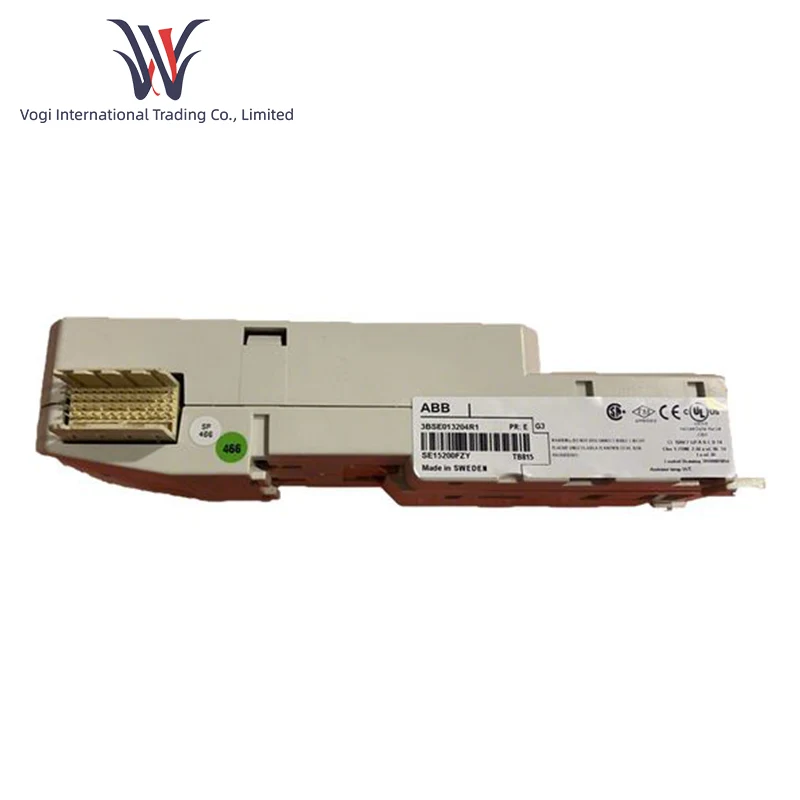

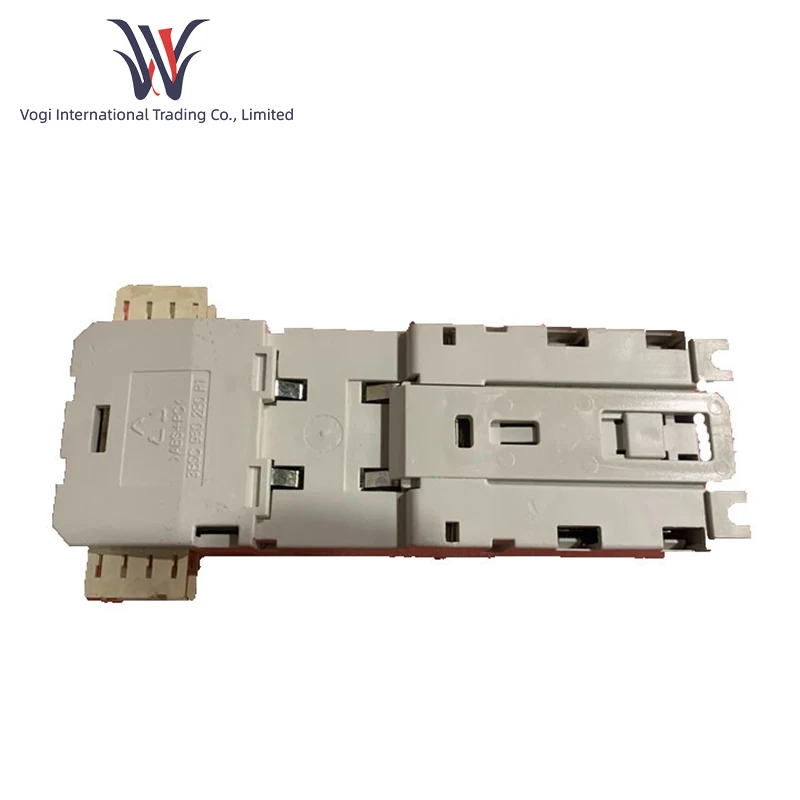

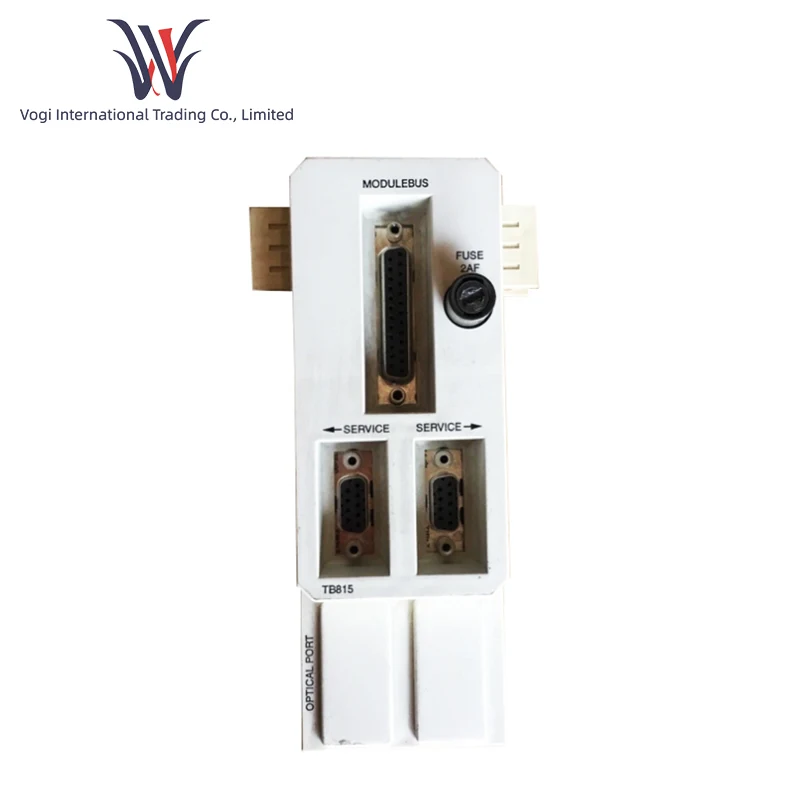

ABB TB815

Details

Functional properties: ABB TB815 is an interconnection device, mainly used for interconnection between two CI820 modules. This enables smooth transmission of data and signals between different components of the control system, ensuring that command and control of each device is provided in a systematic manner.

Communication function: TB815 is part of the ABB S800 I/O system, which means that TB815 has powerful communication capabilities. This enables it to exchange data with the upper controller or PLC through industrial standard fieldbus technology, thereby achieving efficient data exchange, and link to other devices in the industrial automation environment through multi-network topology. This can enhance the control and monitoring of industrial processes.

Data transmission: The TB815 module can correctly read and transmit various types of data signals. At the same time, TB815 can receive input data from sensors or other input devices and provide the conditioned data to the control system for use in subsequent stages. Real-time monitoring of industrial processes helps to maximize production efficiency and improve quality.

Installation: TB815 has a compact structure, so it is easy to install in various types of industrial cabinets or equipment. When installing the equipment, the module should be accurately fixed and wired correctly to prevent signal interference or connection failure.

Configuration and Programming: Before actual use, the TB815 should be properly configured and programmed to meet the needs of its application. This is fully defined in the communication parameters that indicate the signal inputs and outputs, as well as the control logic configured in the corresponding CPU or PLC. Typically, ABB has software and tools to help with configuration and software programming.

Operation and Monitoring: During operation, the TB815 is constantly monitored to ensure effective functionality. Operators can monitor module operation through a connected control system or monitoring software. This may include information about how signals are transmitted, the quality of communication, and any deficiencies in the surrounding system that may appear in alarms. Such conditions must be discovered in a timely manner and corrective actions taken to avoid system failures and facilitate the restoration of operational stability in industrial processing.

Maintenance and Upgrades: The TB815 must be maintained regularly to ensure its reliability. Maintenance includes checking module connections, removing dust and debris, and verifying component functionality.
