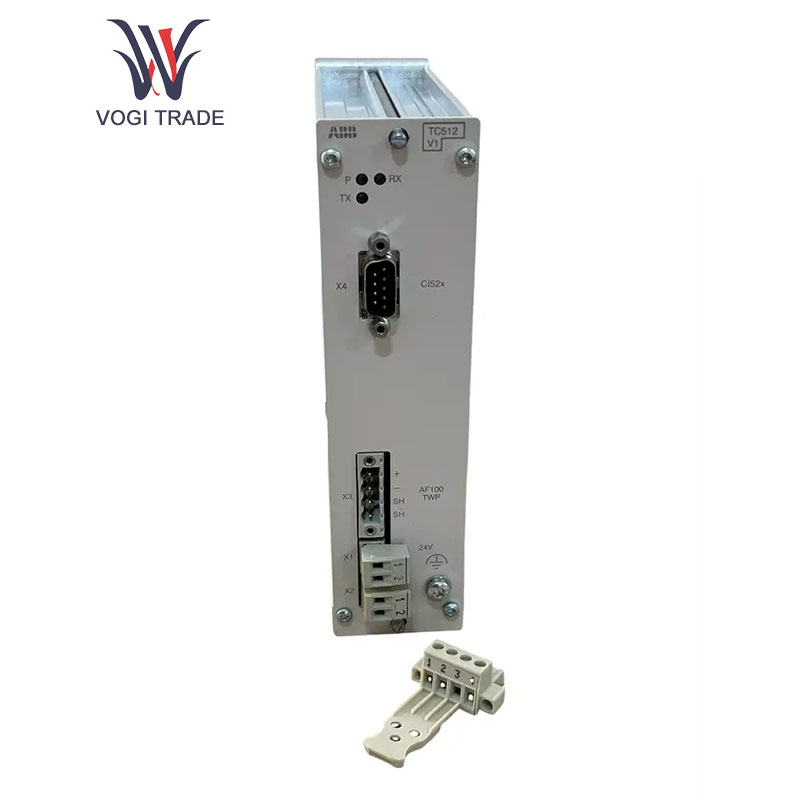

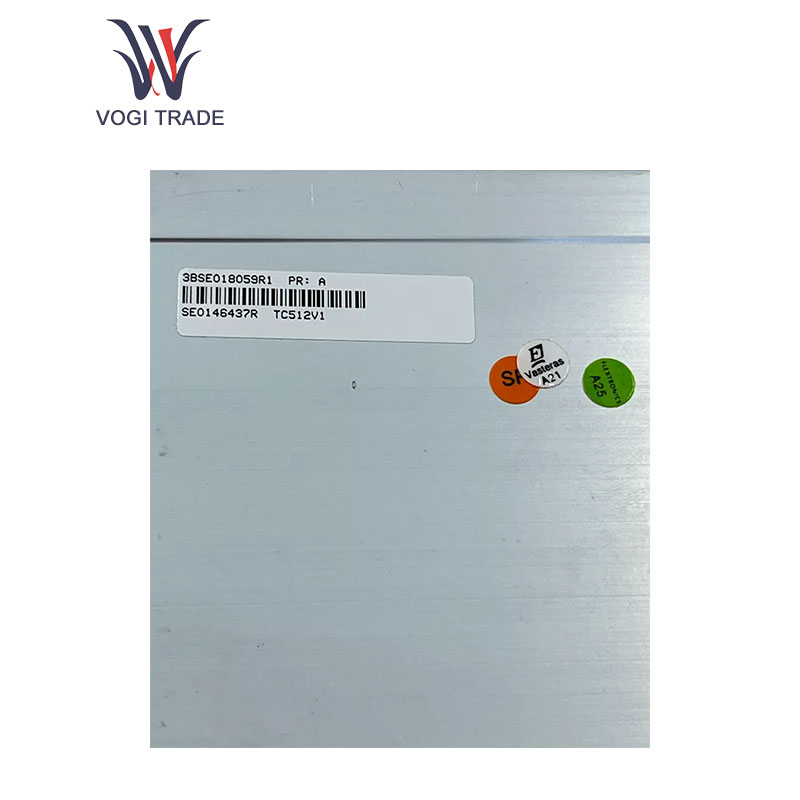

ABB TC512V1

Details

1.The main parameters

Power supply voltage: 220V±10% 50Hz±5%, the equipment can thus closely accommodate an allowable variation in voltage and frequency within reasonable limits to ensure the stability of the power used in conventional commercial or industrial environments and thus provide reliable power supply for the normal operation of the equipment.

Power consumption: not exceeding 20VA, meaning the low consumption during operation, satisfying the requirements for energy savings and reducing loading from the power supply system.

Ambient conditions: temperature 0-50 response with humidity 90%.It is considered to work ordinarily under a wide range of temperature and humidity conditions, making it fit for different environments in industrial fields and minimizing the possibility of failure due to environmental factors.

Output contact capacity: AC 220V 1A (non-inductive load); DC 28V 2A (pure resistive load); the one for which the different types of loads can be drive combinations, ensuring effective output of signals and normal control of the associated device.

2.Functions

Signal Modulation/Demodulation: As a twisted pair modem, ABB TC512V1 converts the digital signals to analog signals for transmitting and further reverse back to digital signals, ensure conversion between different types of signals so as to guarantee correct transmission of data within the whole system of industrial automation and control, thus meeting the requirements of data interaction between various devices.

Reliable data transmission: TC512V1, with a twisted pair communication interface with reliable data transmission performance, may select different communication rates depending on the different application scenarios and data transmission requirements, which maintains the stability and efficiency during the data transmission process and effectively reduces the bit error rate.

Compatibility and versatility: ABB TC512V1 is compatible with any number of control systems, making use of PLC, DCS, and equipment to enable seamless interconnection with similar equipment from numerous other manufacturers and models, resulting in flexible integration or system expansion, thus halving the overall cost and difficulty with every upgrade or change and bettering both performance and reliability.

Status indication function: TC512V1 is always associated with status indicators in real-time, powering on to the users of the technology display to them in exactly what operational status the equipment stands and should an anomaly arise, to pinpoint problems quickly so that preventive/corrective actions can follow-up, hence improving maintainability and fault-finding efficiency of the equipment.

3.Applications

Industrial Automation: TC512V1 is widely used in numerous industrial automation production lines, including automobile manufacturing, electronic manufacturing, food processing, and other industries. It provides stable communication and transmission of data between PLC, sensor, and actuator or other equipment and ensures automated control and monitoring of the production process, thus improving production efficiency and product quality.

Energy Management: ABB TC512 V1 can be used to monitor and manage energy equipment in the optimization of energy, in wind power generation systems, petrochemicals, steel metallurgy and other energy-related industries in realizing energy collection and transmission, determining allocation and utilization of energy, reducing energy-consumption costs and production costs in so many words.

Intelligent Building: ABB TC512 V1 is suitable for air conditioning and refrigeration systems, HVAC systems, etc. in intelligent buildings. It can realize automatic adjustment of environmental parameters in buildings and remote control of equipment, improve the comfort and energy utilization efficiency of buildings, and realize intelligent building management.

Municipal Engineering: In municipal pumping stations and other municipal engineering scenarios, environmental development engineering, they control the laitates and monitor the associated equipment to ensure normal operation in facilities managed by the municipality, attain better management of urban infrastructure, and support for the sustainable development of cities.
