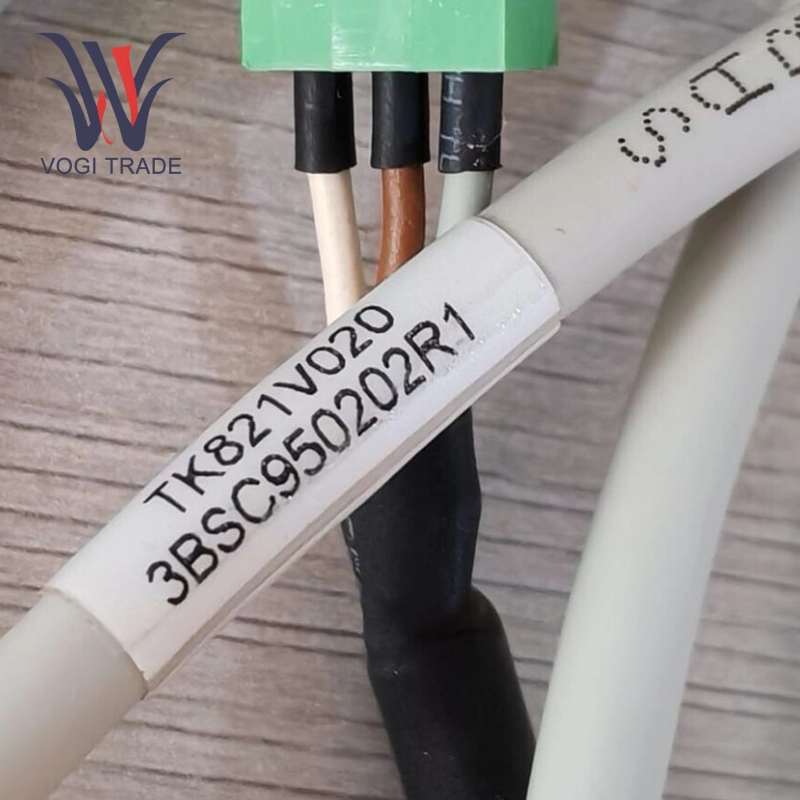

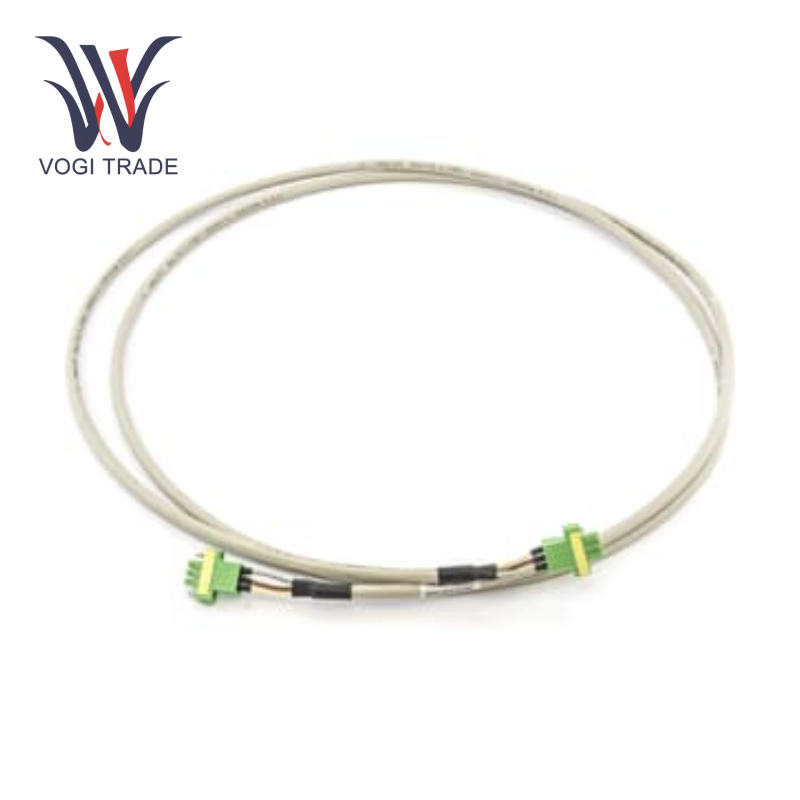

Brand: ABB Description: Battery Cable Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: ShenZhen ABB TK821V020 3BSC950202R1 is an industrial automation control system connection cable designed for ABB AC 800M series controllers, which is mainly used for the power connection between external battery units (e.g. SB822 module) and controllers.
|
Manufacture |
ABB |
|
Model Number |
TK821V020 |
|
Ordering Number |
3BSC950202R1 |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Length |
2m |
|
Packing Dimension |
20*20*10cm |
|
Weight |
0.2kg |
Technical Parameters
Cable type: 24V DC power connection cable
Length: 2 metres
Applicable battery cells: for use with SB822 3BSE018172R1 battery module
Interface type: DIN rail mount compatible interface
Protection class: IP20 (in accordance with IEC 60529)
Temperature range: -25°C to +60°C
Certification standards: Comply with RoHS directive, WEEE classification
Principle of use
Power transfer: the power stored in the SB822 battery module (3.6V DC) is transferred to the AC 800M controller via the cable, ensuring that the controller can maintain operation in the event of an interruption in the mains power supply.
Redundancy design: ABB TK821V020 3BSC950202R1 works with external battery units to form a redundant power system to avoid data loss or equipment downtime due to sudden power outages
Plug and play: standardised interface design, no complex configuration to complete the installation, simplify the maintenance process
Note of caution
Installation specification: Make sure that ABB TK821V020 3BSC950202R1 matches the interface of the battery unit and the controller completely to avoid interruption of power supply due to poor contact.
Maintenance Recommendations: Regularly check the cable connection status and the health of the battery module, it is recommended to carry out a system power backup test every 1-2 years.
Compatibility Verification: Confirm the suitability of the controller model (e.g. AC 800M series) and the battery module version (e.g. SB822 3BSE018172R1) at the time of purchase.
