ABB TK851V010 3BSC950262R1

Product Overview

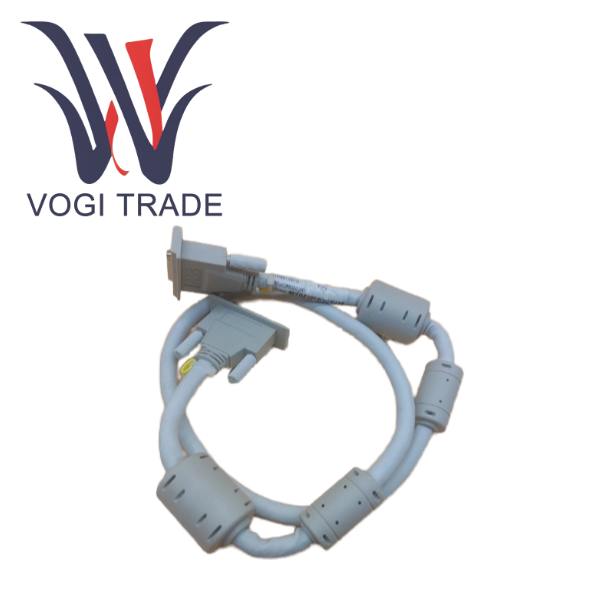

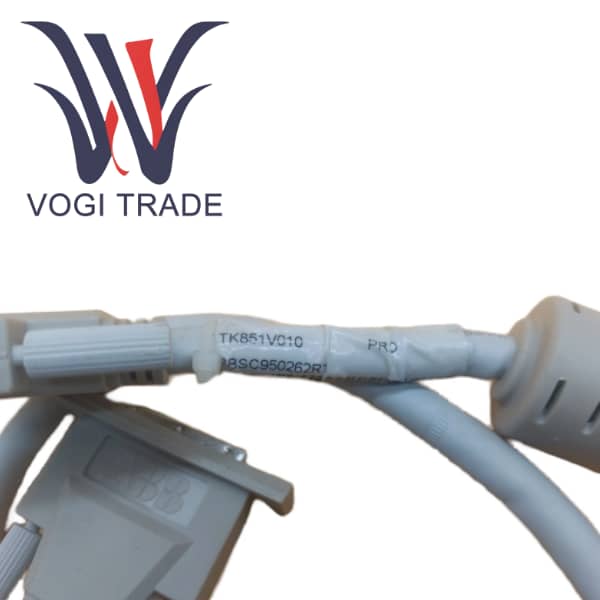

TK851V010 is a high-quality, plug-and-play prefabricated connection cable specially designed and manufactured by ABB for its AC 800M series of high-performance process controllers. The core function of 3BSC950262R1 is to serve as a physical link, establishing reliable, low-noise, and compliant electrical connections among different hardware components within the AC 800M system.

Two key uses:

The RCU Link Cable is used to connect the AC 800M CPU with the CI854A/B RCU communication interface module, constituting the communication backbone of the S800 I/O system.

The BC810 Interconnection Cable is used to connect the BC810 basic controller unit with its matching I/O expansion module.

This 1-meter-long cable is part of ABB's prefabricated cable product line, meaning it has been terminated, tested and marked before leaving the factory, ensuring the highest level of signal integrity and system compatibility, and avoiding quality issues and engineering delays that may arise from on-site self-made cables.

Product Specifications and Parameters

Product Model              TK851V010

ABB Material Number    3BSC950262R1

Product Type               Prefabricated connection cable

Cable length                1.0 meter

Physical dimensions

Net length          1000mm

Clear width         10mm

Clear height        10mm

Net weight         0.45kg

Origin                Switzerland

Customs Tariff Number    85442000

Compliance

RoHS     Compliant

WEEE    Not within the WEEE Directive

Product Functional Features

Designed specifically for critical communication links

RCU Link is applied in the architecture of AC 800M + S800 I/O. The RCU-Link signal sent by the CPU through the CI854 module is a high-speed and differential serial communication signal. The internal structure of the TK851V010 cable has been meticulously designed to match the impedance characteristics of the signal and minimize electromagnetic interference, ensuring accurate data transmission in industrial noise environments.

For compact controllers like the BC810, the backplane bus between the BC810 and the I/O module also has strict requirements for signal quality. The use of original factory prefabricated cables is the foundation for ensuring the stable operation of the entire system.

The advantages of plug-and-play engineering

Eliminating engineering risks, on-site self-made cables carry risks such as incorrect wire selection, poor termination, and improper shielding treatment, which may lead to intermittent system failures and are extremely difficult to troubleshoot. As an original factory product, TK851V010 has been 100% tested, eliminating such risks.

Engineers do not need to spend time on cable production, testing and marking. They can install them directly upon receiving them, significantly shortening the project commissioning period.

High-quality manufacturing

The origin is Switzerland, representing ABB's strict quality control standards for its high-end automation products.

Made of industrial-grade materials and connectors, TK851V010 can withstand the harsh environment such as vibration and temperature changes inside the control cabinet.
