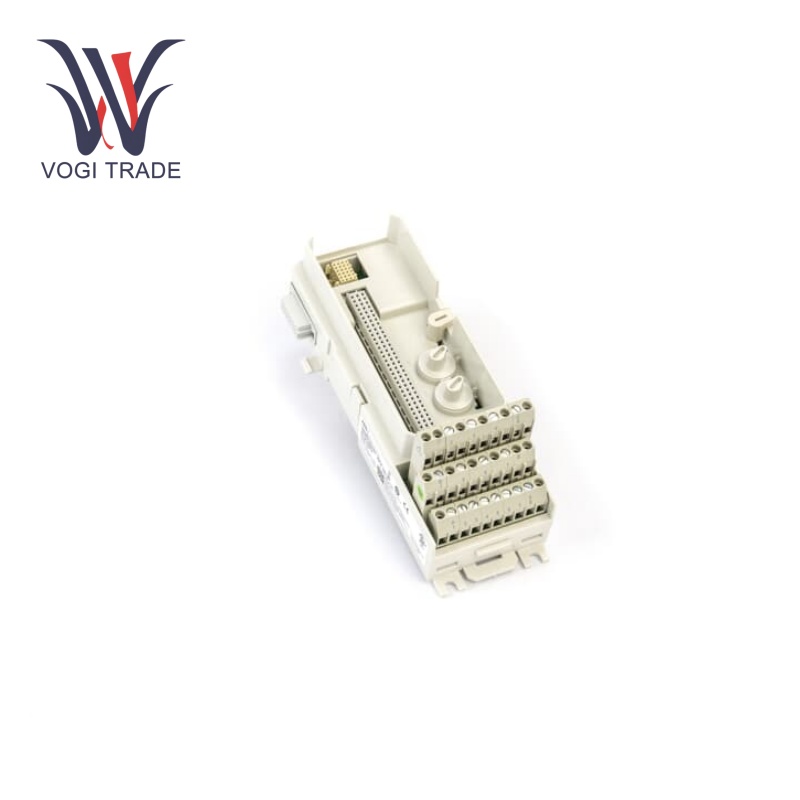

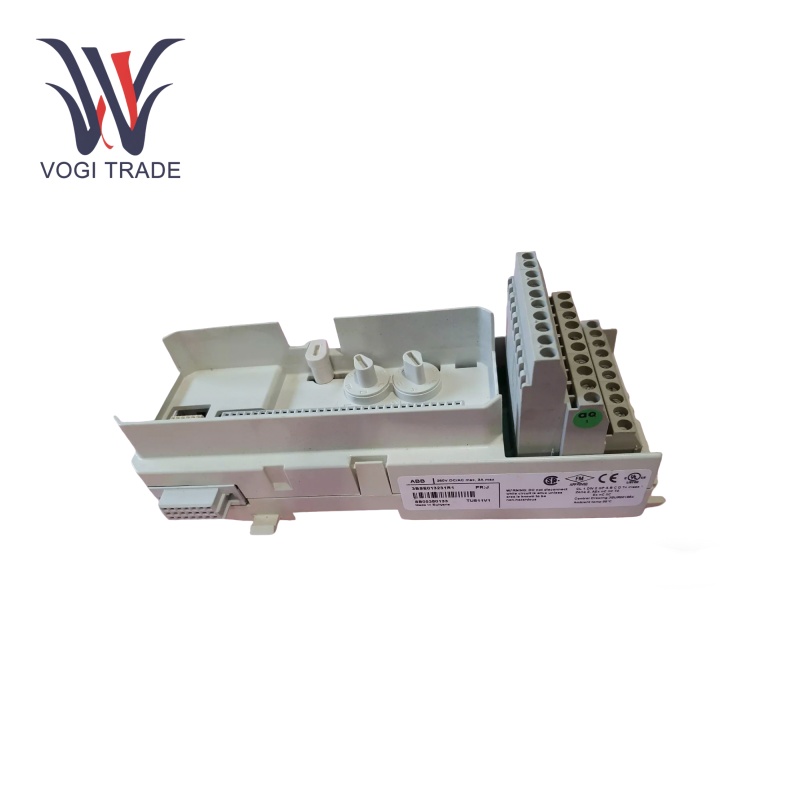

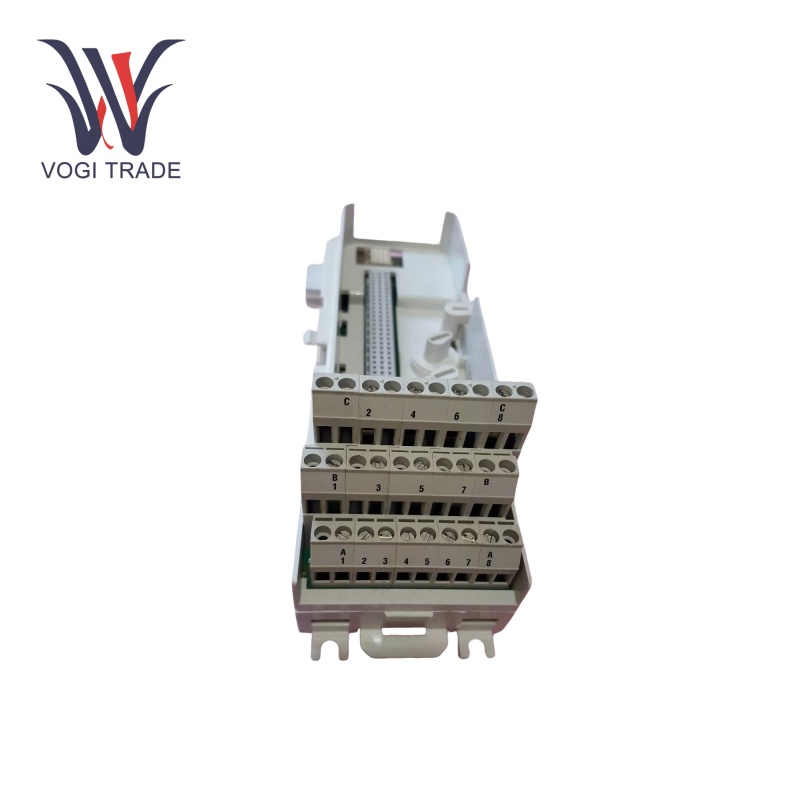

ABB TU811V1

Operation Parameters

Voltage Rating: It operates at a voltage of 250V

Operating Temperature: -25°C to +70°C,

Humidity Range: 5% to 95% non-condensing

Channels: The TU811V1 provides 8 isolated channels for field signals, accommodating various input types.

ModuleBus Distribution: The MTU distributes the ModuleBus to the I/O module and to the next MTU, ensuring seamless communication within the system.

Address Configuration: Mechanical keys are used to configure the MTU for different types of I/O modules, offering flexibility in system design.

Product Features

Signal Termination and Distribution: The ABB TU811V1 is used as a signal termination and distribution point where field wiring is terminated to the I/O modules. With 8 channels, it is capable of supporting up to 8 isolated field signals. The module bus is distributed to the I/O module as well as the next MTU in the system by the unit. It allows for effortless communication and transfer of signaling between various parts of an industrial automation system.

Address Generation: The ABB TU811V1 generates the correct address for the I/O module. It does this by shifting the outgoing position signals to the next MTU. This address generation function is crucial for the proper identification and communication of each I/O module within the industrial network. In a complex industrial environment with multiple I/O modules, this ensures that the control system can send and receive data from the correct modules, preventing miscommunication and system failures.

Mechanical Configuration for Compatibility: MTU may be configured mechanically for compatibility with two types of I/O modules. Each key can be switched through six positioning positions, giving you 36 configurations. Such simple mechanical design still allows to fit a great number of I/O modules, which is why it became a very popular standard solution. With the ABB TU811V1 integration into existing or new industrial automation systems is easy and does not necessitate complex software based re configurations each time a different I/O module is used.

Installation

Preparation: Ensure all power sources are disconnected to prevent electrical hazards.

Mount: Properly mount the ABB TU811V1 inside the slot in the S800 I/O system rack.

Signal and indicated to: connect the field to the signal terminals as indicated in the wiring diagrams contained in the user manual

Configuration: Configure the MTU for the desired I/O By setting the minidp dword with three mechanical keys.

Power Up: After all connections are made, restore power to the system and verify that the MTU initializes correctly, indicated by appropriate LED indicators.

Application Range

Manufacturing Plants: The ABB TU811V1 is utilized in manufacturing applications to interface different sensors and actuators with the control system. For example, in an automotive assembly line, it can link sensors that detect the positions of the parts on conveyor belts to the input/output modules. So the control system can monitor the production process in real-time and adjust the system accordingly by adjusting the speed of conveyor belts or triggering robotic arms at the appropriate time.

Power Generation Facilities: It can be used in a power plant to interface the field level monitoring devices to the control system. It allows the power plant's control system to monitor and manage the generation and distribution of electricity in an efficient way by providing a reliable connection. It connects the generators winding temperature sensors to the I/O modules, for the control system to take action if the temperature is not in the normally accepted range for achievement.

Water and Wastewater Treatment Plants: ABB TU811V1 connects sensors measuring water quality parameters and actuators controlling operation of pumps, valves, and treatment equipment in water/wastewater treatment plants. This is helpful in treating and discharging water and wastewater accordingly and following the environmental rules. Its main functionality is to make sure all the sensors in the water treatment tanks connect with the I/O modules so that the control system can adjust the chemical dosing pumps as per water quality parameters received by the sensors.

Troubleshooting

Check All Connections: Look at each one of your physical connections for wear and tear Check that all connection cables are properly wired and in good condition.

Configurable: Ensure Configurable Mechanical Keys are Properly Set for Intended Type of I/O Module.

Diagnostic Capabilities: Take advantage of ABB's diagnostic software to track the MTU's health and detect issues in advance.

Environmental Conditions: Ensure that the operating environment meets specified conditions, particularly regarding temperature and humidity, to prevent adverse effects on performanc.
