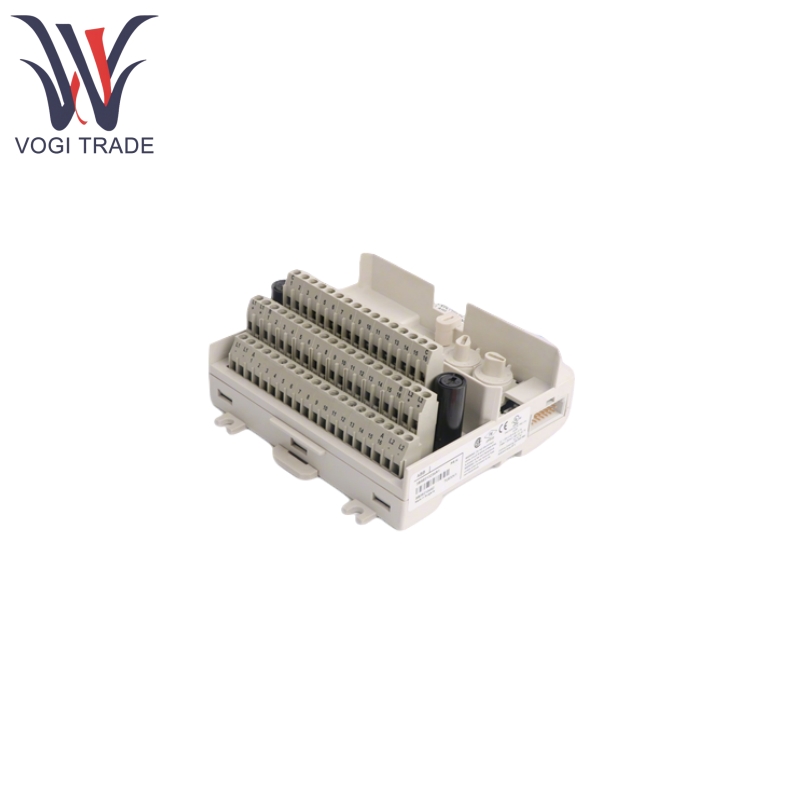

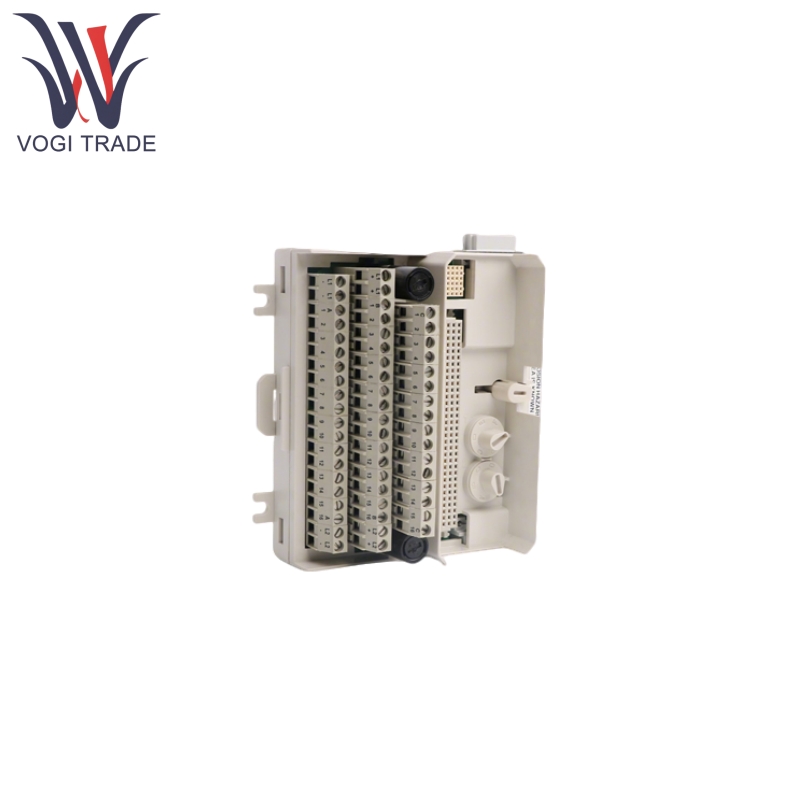

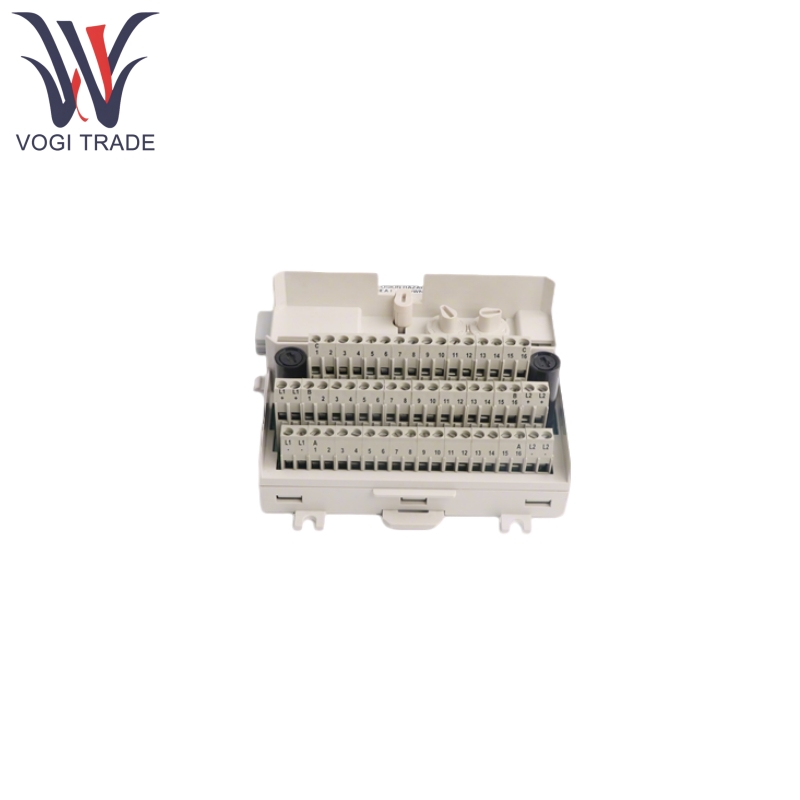

Brand: ABB Description: Extended Module Termination Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 20 Payment Term: T/T Shipping Port: Shenzhen ABB TU830V1 3BSE013234R1 is primarily used to connect and expand input/output modules in industrial automation control systems. Through its modular design, it enables flexible configuration, providing safe and reliable signal interfaces for field devices, and supports distributed I/O architecture, making it suitable for process control and data acquisition in complex industrial environments.
|
Manufacture |
ABB |
|
Model Number |
TU830V1 |
|
Ordering Number |
3BSE013234R1 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
14*12*8cm |
|
Weight |
0.4kg |
Product Features
ABB TU830V1 3BSE013234R1 supports up to 16 I/O channels and 2 independent isolated process voltage connections, each equipped with a 6.3A fuse, enabling flexible adaptation to various I/O modules such as analog and digital.
ABB TU830V1 3BSE013234R1 transmits signals to the main controller via the ModuleBus bus and provides 2A overcurrent protection for each channel, ensuring stable signal transmission at the field level.
ABB TU830V1 3BSE013234R1 features a mechanical keyed design to prevent incorrect module insertion; the DIN rail latch mechanism enhances grounding stability and is suitable for vibrating environments.
ABB TU830V1 3BSE013234R1 operates within a temperature range of -25°C to +55°C, meets IP20 protection rating standards, and satisfies industrial-grade interference resistance requirements.
Product Using Principle
Signals from field devices are connected to ABB TU830V1 terminals and transmitted via the ModuleBus bus to the main controller or upper-level system.
Process voltages are distributed to I/O modules via independently isolated terminal groups to ensure safe power supply to multiple sets of devices.
ABB TU830V1 automatically generates I/O module addresses based on position signal shifts, simplifying the configuration process.
ABB TU830V1 supports redundant ModuleBus connections to improve system reliability.
Product Application
ABB TU830V1 can be used for real-time monitoring and control of production lines, such as I/O expansion for packaging machinery and material handling equipment.
ABB TU830V1 serves as a remote I/O station in a distributed control system, enabling cross-regional signal acquisition and execution.
ABB TU830V1 can be used for temperature and pressure monitoring of reactors in the petrochemical industry, as well as for driving and controlling valves and pumps.
ABB TU830V1 can be used for monitoring the status of power generation units and collecting grid data in the energy sector.
ABB TU830V1 can be used for collecting water quality sensor data and regulating aeration systems in water treatment plants, as well as for automating HVAC systems in smart buildings.
