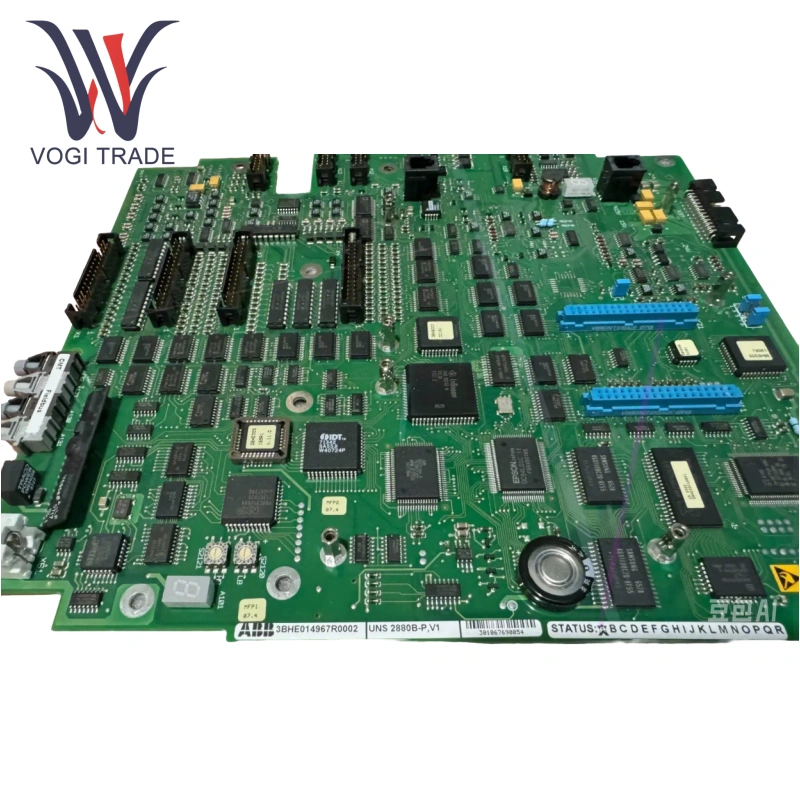

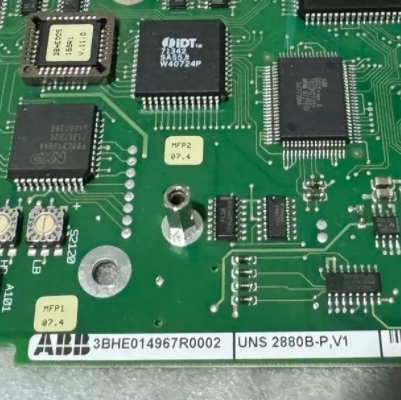

Brand: ABB Description: COB Board Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen ABB UNS2880B-P,V1 3BHE014967R0002 is mainly used to drive servo motors and realize high-precision motion control. It is integrated with PCB assembly based on COB (Chip-on-Board) technology. It is suitable for industrial robots, CNC machining centers, automated production lines and other scenarios, and supports the precise position, speed and torque control of AC permanent magnet synchronous motors.
|
Manufacture |
ABB |
|
Model Number |
UNS2880B-P, V1 |
|
Ordering Number |
3BHE014967R0002 |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
45*29*5cm |
|
Packing Dimension |
47*32*7cm |
|
Weight |
1kg |
Technical parameters
Power supply range: Supports 12-30V DC wide voltage input
Output capability: suitable for servo motor control, load current can reach 100A according to configuration
Wired communication: RS-232, RS-485, Ethernet, USB
Industrial Agreement: Support Modbus, HART-IP, etc.
Operating temperature: -25°C to +70°C (storage temperature)
Protection level: IP20
Principle of use
ABB UNS2880B-P,V1 3BHE014967R0002 realizes precise motion control through closed-loop control technology:
Signal processing: Receive position, speed or torque commands from the host computer (such as PLC), and perform signal analysis and filtering through the internal microprocessor.
Drive control: convert the processed commands into PWM (pulse width modulation) signal, drive the servo motor to perform actions, and adjust the output in real time through the encoder feedback to ensure positioning accuracy.
Communication interaction: Exchange data with external systems (such as SCADA, DCS) through Modbus or HART-IP protocols to realize remote monitoring and parameter configuration.
Protection mechanism: Integrate overvoltage, overcurrent, and short circuit protection functions, and ensure the safety of the equipment through ground fault detection.
