Brand:ABB
Description:Industrial Control I/O Board
Condition:New
Certificate:COO TEST REPORT WARRANTY LETTER
Warranty:1 year
Inventory Qty:10
Payment term:T/T
Shipping Port:ShenZhen

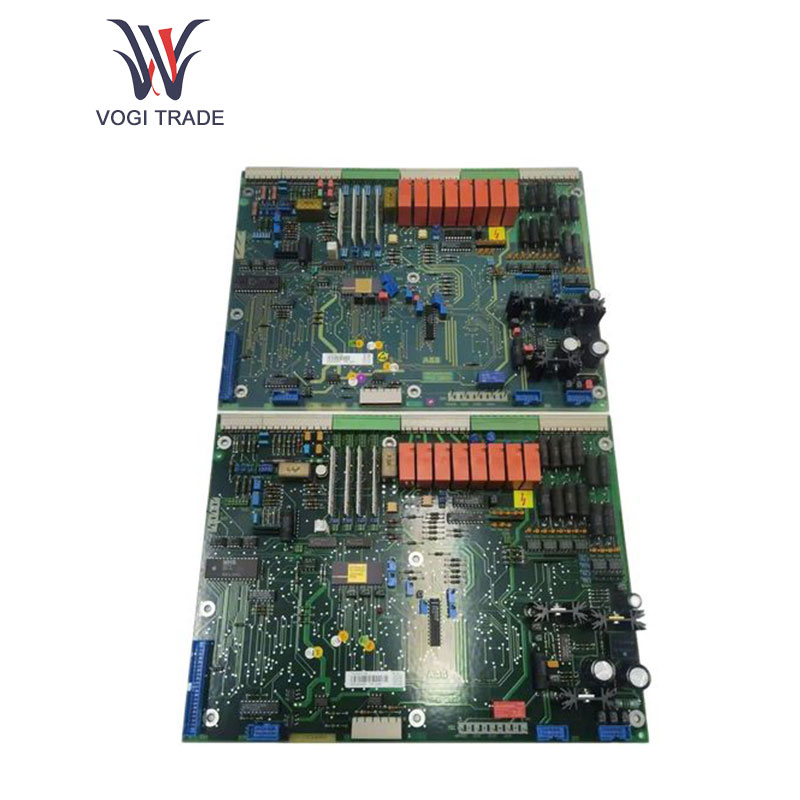

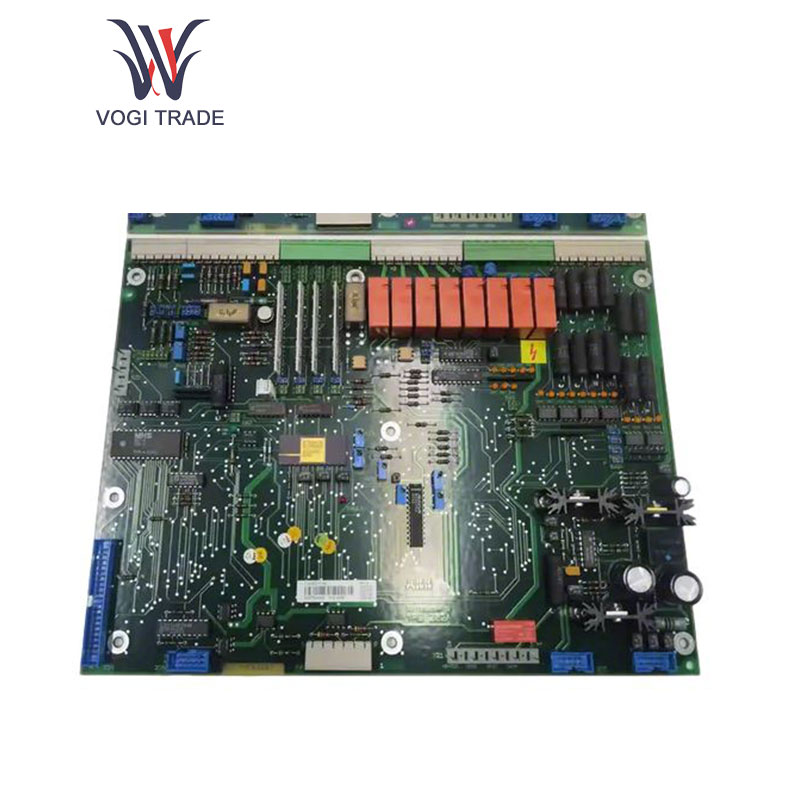

ABB YPQ202A is a multi-purpose industrial product. Its data acquisition covers multi-channel analog and digital quantities, and can process and analyze data and control output. It supports multiple protocols and serial port communications. Technically, the sensor has good adaptability, modular and compact design, energy saving and easy software operation. It is used in small manufacturing, light industry, HVAC, smart agriculture and other fields, helping the automation process of multiple industries.
Manufacture |
ABB |
Model Number: |
YPQ202A |

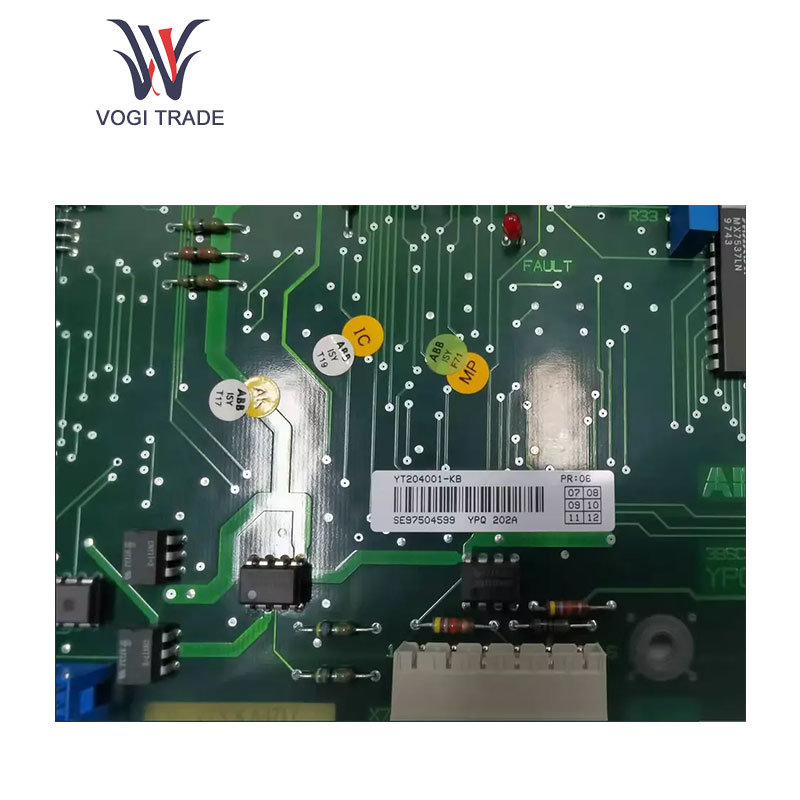

Ordering Number |
YT204001-KB |
Catalog |
VFD Spares |
Country Of Origin |
Sweden |
HS CODE: |
8479909090 |
Dimension |
12*4*1.5CM |
Packing Dimension |
14*6*3.5CM |
Weight |
0.2kg |
Detailed Performance Parameters
Measurement Accuracy:
The temperature measurement accuracy can reach up to ±0.3°C.
The pressure measurement accuracy is within ±0.2% of the full scale;
The flow measurement accuracy is within ±1% of the reading.
Operating temperature range:
ABB YPQ202A shall stably operate between -5°C to +45°C in a comfortable indoor place-a perfect match for outdoor industrial working conditions.
Voltage and frequency adaptability:
ABB YPQ202A supports regular industrial voltage ranging from 100 V to 220 V AC, and at another 50 or 60 Hz the stable operation is assured, thus matching most industrial power supply systems without added voltage-frequency converters to facilitate the quick installation of equipment.
Response time:
The common signaling is done in approximately 8 ms.
Functional features
Data acquisition function
Multiple channels of data will be easily acquired within the same time and sensitized by suitable sensors towards numerous forms of an analog signal-for example, voltage 0 to 10 V and current at 4 to 20 mA
Data processing and analysis function:
The included data processing component is able to perform for the preliminary process towards collected data away from random interferences and make other alterations to fit standard formats to enable enhanced availability and accuracy of data for effective analysis by the following system.
Control outputs-function:
ABB YPQ202A output control model is treated like voltage current, with rangings equal to or comparable, issuing both control signal read between 0 and 10 V
Digital output-Circuit prints with transistor output signal to drive some little load
Communication Feature
Using MODBUS RTU Protocols
A common communication protocol and allows communication with devices that have protocol interfaces like some PLC controllers, Intelligent Instruments, etc., which enables interaction and sharing of information establishing a small industrial communication network.
Technical features
Sensor adaptability technology
ABB YPQ202A offers good sensor adaptivity and can accommodate different mainstream brands and models of sensors that are popular on the market today.
Modular Design:
The product attains a modular design compactly integrating the main functional modules of data collection, processing, control outputs, and communication. This design makes the device compact.
Energy-saving and environmental protection design principle:
The component power control module applies the efficient energy-saving technology so that the system automatically reduces power and thus reduces energy wastage during standby or low-load operations.
User-friendly software interface:
Through a user-friendly uncomplicated software operation interface, ABB YPQ202A allows the users-basic setting-up of the device including enabling/disabling data acquisition channels and running communication parameters-to not require highly specialized programming knowledge.
