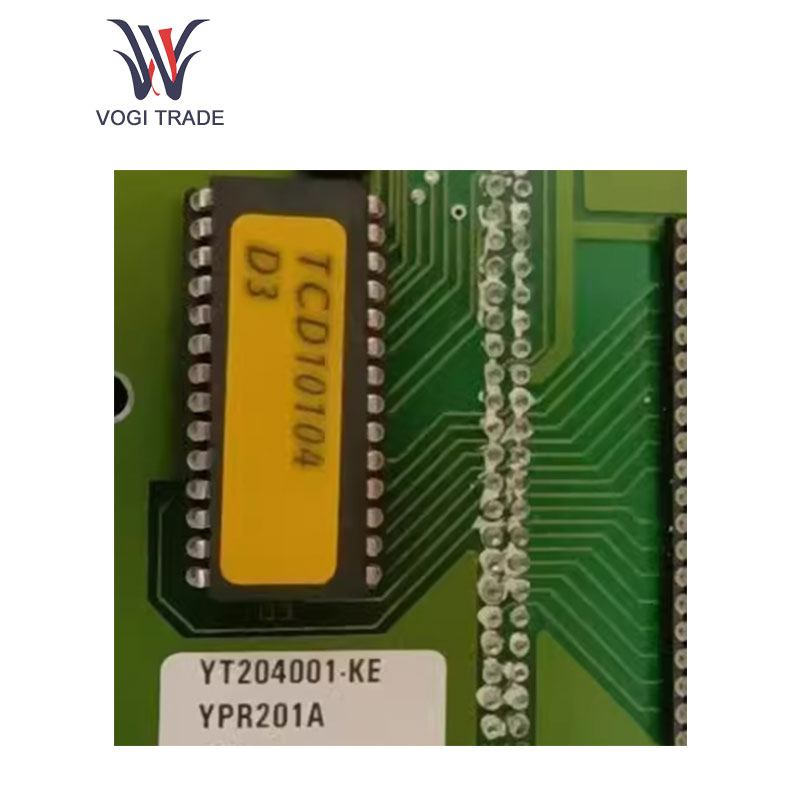

ABB YPR201A

Details

Detailed performance parameters

Measurement accuracy:

The temperature measurement accuracy can reach ±0.15°C.

The pressure measurement accuracy is ±0.08% full scale.

The liquid level measurement accuracy is about ±1.5mm.

Working temperature range:

ABB YPR201A can work steadily at an ambient temperature of -15°C to +55°C, and it can adapt to widely varied industrial thermal conditions.

Adaptable to voltage and frequency:

Supports an AC voltage range of 120-230 V, goes for 50 Hz or 60 Hz.

Response time:

Time for receiving different signals is within 3 ms.

Functional features for ABB YPR201A

A multi-type data acquisition:

ABB YPR201A possesses a multiplicity of analog input interfaces, which can take 0-5V, 0-10V voltage signals, and 4-20mA current signals. Many sensors can be connected to collect important information on physical quantities such as temperature, pressure, flow, and liquid level in the industrial process so as to provide a data basis for the system to comprehensively grasp the production status.

Functions of data processing and analysis:

The built-in high-performance data processing chip is capable of processing the collected data in real-time, like filtering, linearization processing, data compression, etc., therefore efficiently getting rid of noise interference and redundant information in the data, increasing data quality and transmission efficiency.

Control output function:

The analog output channel can output 0-10V or 4-20mA control signal, accurate controls within regulating valve, frequency converter, motor speed regulator, etc.

The output is thus a relay output that may perform the function of high-power load drive. For instance, it can control the starting and stopping of a motor, as well as the opening and closing of a solenoid valve, activation of contactors, etc.

Communication function for ABB YPR201A:

Standardly supports several industrial Ethernet protocols, such as PROFINET, ETHERNET/IP, MODBUS TCP, and also serial communication protocols such as RS-485/RS-232. ABB YPR201A can interact and escalate information with upper control systems including PLC, DCS, and industrial computers with fast and steady speeds, in constructive correspondence to form an entire industrial automation network structure.

Technical features

Sensing technology integration-integrate a variety of high-precision sensors into a compact module. By optimizing the layout of the sensor and a signal processing circuit, this integration reduces interference and loss in signal transmission paths resulting in better measurement accuracy and reliability.

Modular and redundant design:

Modular design is adopted, with functions like data acquisition, processing, control output, and communication being independently designed and packaged, and connected through standard interfaces.Besides, the power and communication modules are built with critical redundancy.

Microprocessor and real-time operating system:

a high-performance microprocessor built-in; the advanced multi-core architecture plus cache technology.

Software configurability and online upgrade:

The configuration of the software system is highly customizable.Furthermore, ABB YPR201A provides online software upgrade functionality.Now functional requirements and software vulnerabilities will be fixed in the background with the software updated by downloading remotely through the network.
