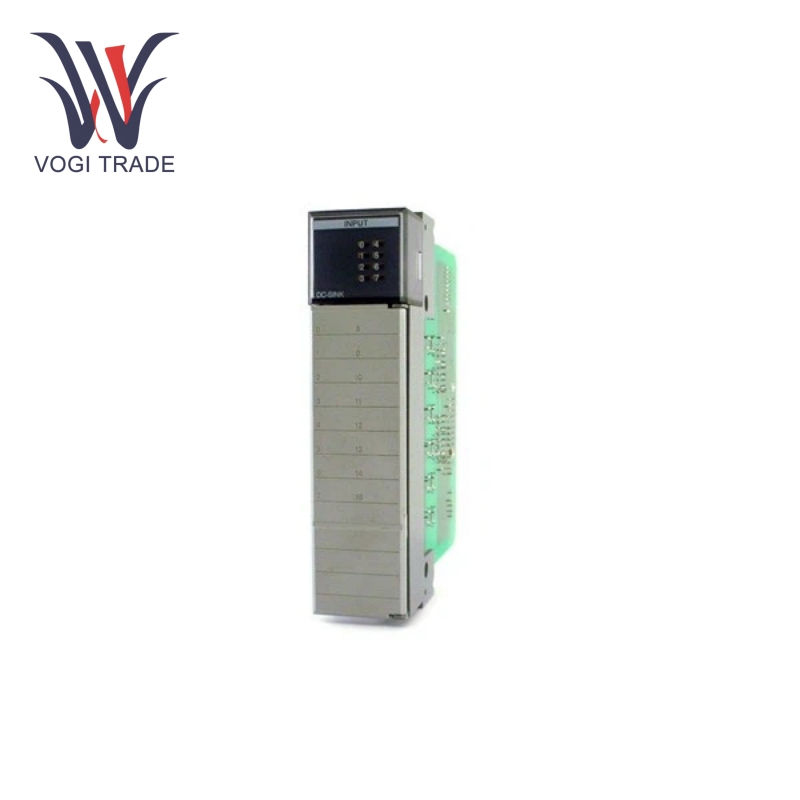

Brand: Allen Bradley Description: Slc500 Input Module Condition: New Warranty: 1 year Inventory Qty: 8 Payment term: T/T Shipping Port: ShenZhen The ability of Allen Bradley 1746-IB8 to operate under a certain voltage range and respond to various input signals enables it to acquire information from sensors and IID sources used in industrial control.
|
Manufacture |
Allen Bradley |
|
Model Number |
1746-IB8 |
|
Ordering Number |
1746-IB8 |
|
Catalog |
- |
|
Country Of Origin |
United States |
|
HS CODE |
8517795000 |
|
Dimension |
18*5*18cm |
|
Packing Dimension |
20*8*20cm |
|
Weight |
0.3kg |
Voltage Range: 10 - 30 volts DC.
Nominal Voltage: 24 volts DC.
Inputs: 8 sinking input channels at 24 volts nominally.
Backplane Current (5 volts DC): 50milliamps.
Nominal Input Current at 24 volts DC: 8 milliamps.
Off-State Current: 1 milliamp.
Signal Delay: 8 milliseconds (on and off).
Off-State Voltage: 5.0 volts DC (maximum).
Maximum Power Dissipation per Output Point: 0.27 watts.
Total Heat Dissipation of the Module: 1.3 watts or 4.4 BTU per hour.
Operating Temperature Range: 0 - 60 °C (32 - 140 °F) at 5 - 95% non-condensing humidity.
Operational Vibration: 2.5 g at 57 - 500 Hz.
Shock Rating: 30 g.
Dielectric Withstand: 1500 volts AC.
Functions
Digital Input Function: Allen Bradley 1746-IB8 can feed back the operation status of discrete devices or signals such as limit switches, pushbuttons, and proximity sensors.
Wide Voltage Compatibility: This makes it compatible with a variety of input voltages, hence compatibility with various input devices.
Removable Terminal Blocks: Rest of the wiring, between the Allen Bradley 1746-IB8 and the accessories it serves, can be conveniently done during its installing and maintaining period.
Backplane Communication: Allen Bradley 1746-IB8 communicates with the PLC controller over the backplane by allowing proper transfer of data and instructions to allow for proper monitoring of input signals.
Strong Compatibility: The device Allen Bradley 1746-IB8 is compatible with other SLC 500 series components and modules, hence further cooperating in sharing functions and data within the system to achieve a more miniaturized and coordinated control function.
Applications
Automotive manufacturing: Allen Bradley 1746-IB8 is utilized in automotive assembly lines for the supervision of robotic arms, welding machines, and other equipment's operation, meaning safety sensors to ensure the assembly process's accuracy and reliability and enhance production safety.
Food and beverage industry: Allen Bradley 1746-IB8 is used in food processing and packaging equipment control systems to ensure safe and effective production processing under carefully monitored operating conditions as prescribed by the industry. The Allen Bradley 1746-IB8 is used for monitoring the operating status of key equipment, such as reactors, mixers, and filling machines, as well as safety protection devices in pharmaceutical production to ensure stability and reliability in the production process and the quality and safety of pharmaceutical products.
HVAC systems: It mainly to measure environmental parameters, thus allowing precise control of the indoor environment and comfort requirements for different scenarios.
Material Handling Systems: Allen Bradely 1746-IB8 is used in material handling equipment such as cranes, forklifts, and conveyor systems to monitor position and status, ensuring that materials are loaded safely and effectively from a warehouse or production site.
