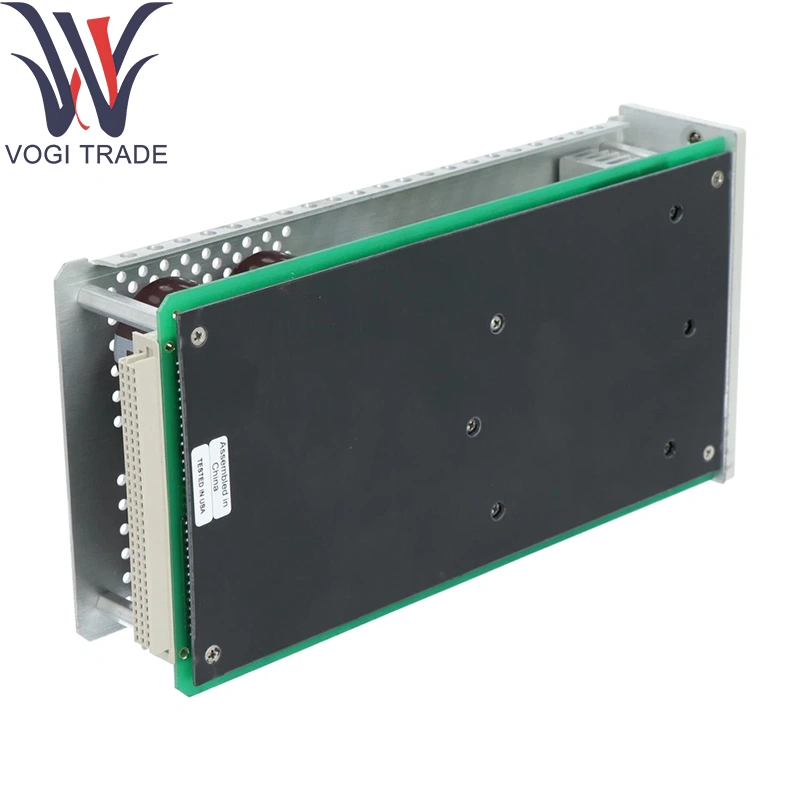

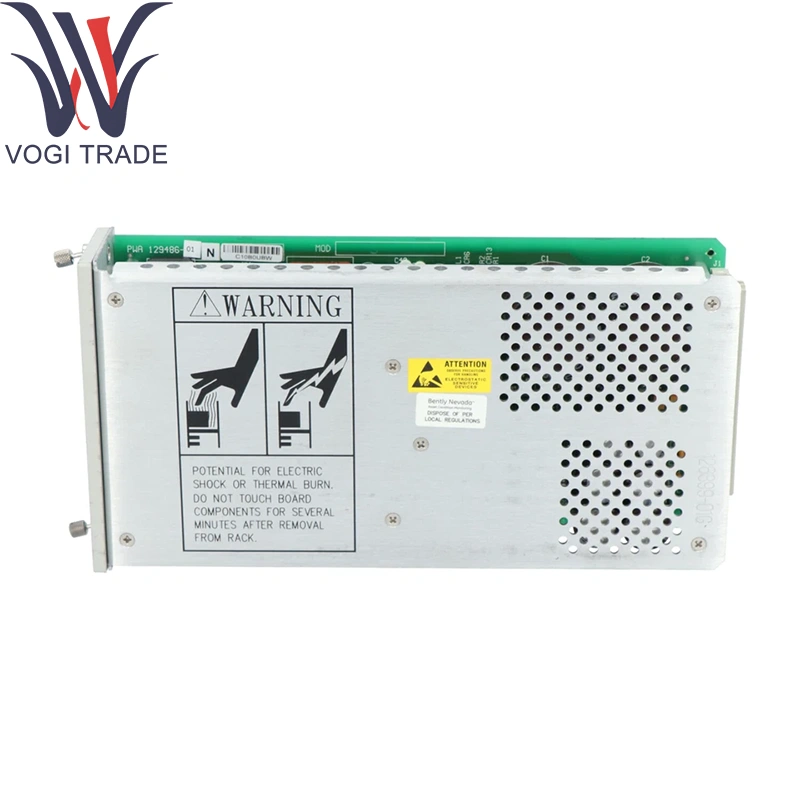

Brand: Bently Nevada Description: 106M1079-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 9 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 106M1079-01 Provides versatile AC-to-DC conversion and low-voltage AC rails for Bently Nevada 3500/3700 Series rack systems and standalone junction panels.
|
Manufacture |
Bently Nevada |
|
Model Number |
106M1079-01 |
|
Ordering Number |
106M1079-01 |
|
Catalog |
3500/15 |
|
Description |
Universal AC Power Supply Module |
|
Country Of Origin |
USA |
|
HS CODE |
8473309000 |
|
Dimension |
12*5.8*25 (CM) |
|
Weight |
1.4 kg |
Technical Parameters
Input Voltage:
100–240 VAC, 47–63 Hz (auto-sensing) for the Bently Nevada 106M1079-01
Output Voltages & Ratings:
24 V DC @ up to 5 A (for barrier and monitor modules)
12 V AC @ up to 2 A (for terminal-block heaters, lamps) in Bently Nevada 106M1079-01
Regulation: ± 5 % under full-load conditions
Isolation:
Primary-to-secondary: 2 kV AC
Secondary-to-chassis: 1 kV AC
Protections:
Inrush-current limiting (soft-start) by Bently Nevada 106M1079-01
Overload/short-circuit shutdown with auto-reset
Over-temperature thermal cutoff
Efficiency: ≥ 80 % at 50 % load
EMC Compliance: Meets IEC 61000-6-2 (industrial immunity) and IEC 61000-6-4 (emissions)
Environmental Ratings:
Operating Temp: –20 °C to +65 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non-condensing
Product function
Converts incoming AC mains to both regulated DC and low-voltage AC outputs via Bently Nevada 106M1079-01, required by rack-mounted barrier, monitor, and auxiliary modules. Distributes power via the backplane or terminal block interfaces, while monitoring rail health and providing front-panel status indication.
Application Areas
Intrinsic-Safety Barrier Power: Supplying low-voltage DC to internal barrier cards in Bently Nevada 106M1079-01 for Zone 2/Div 2 systems.
Standard Rack Installations: Powering monitor and I/O modules in gas-turbine, compressor, and generator control panels.
Auxiliary AC Loads: Driving terminal-block heaters, indicator lights, and small auxiliary devices within the rack enclosure.
Retrofit Projects: Replacing disparate external transformers with Bently Nevada 106M1079-01 consolidated rack-mounted supply.
