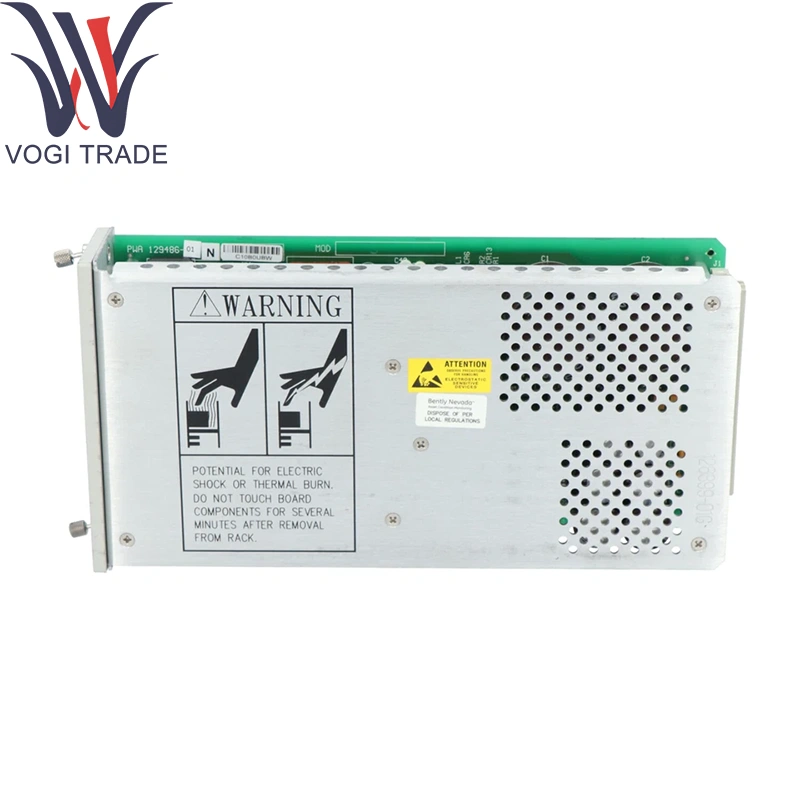

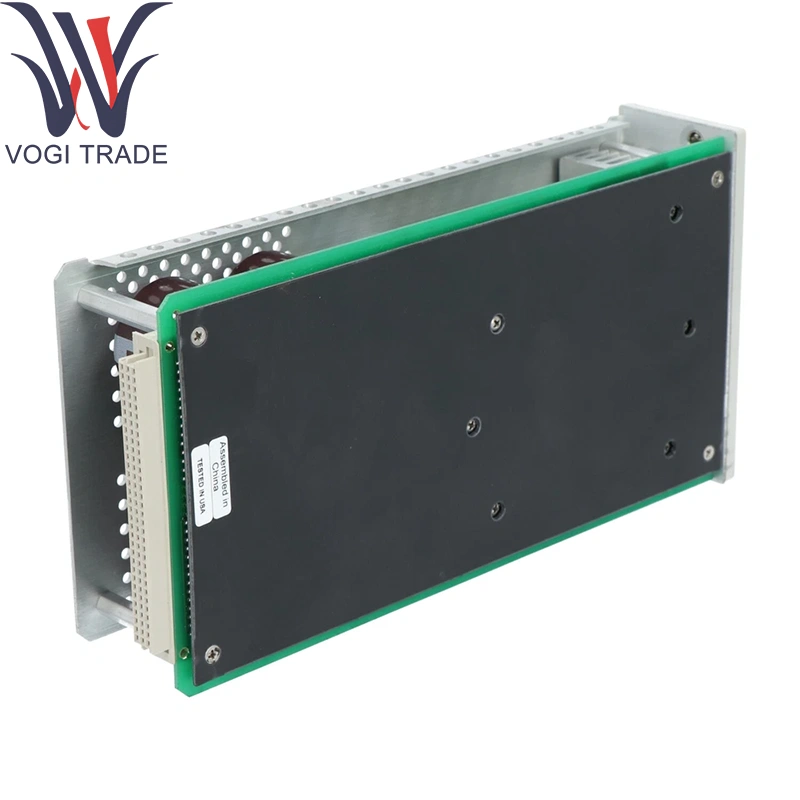

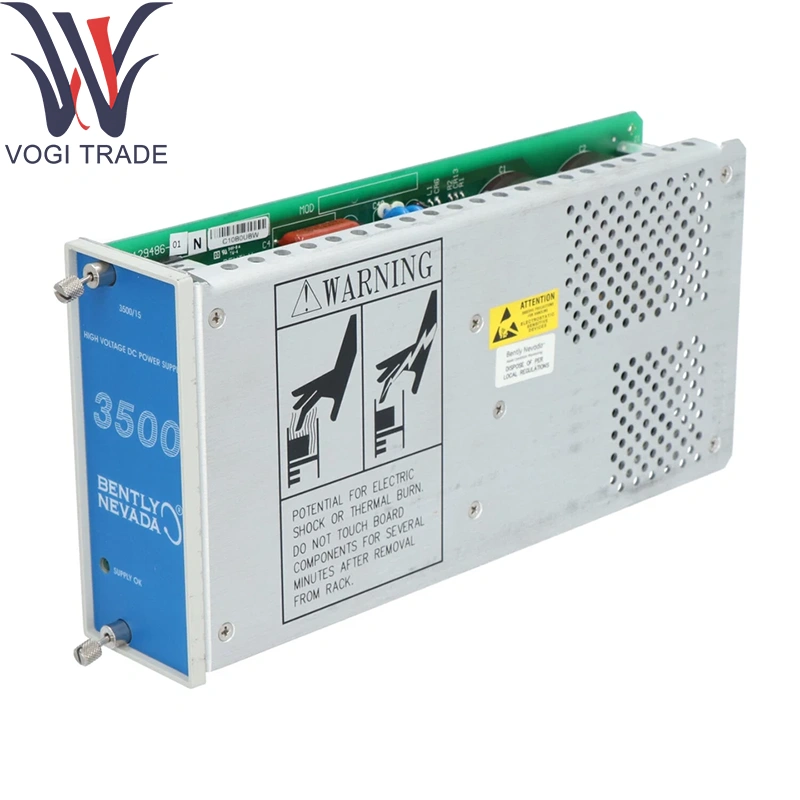

Brand: Bently Nevada Description: 114M5335-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 14 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 114M5335-01 DC PIM (Power Input Module) is installed in Bently Nevada 3500 and 3700 Series racks to distribute and regulate low-voltage DC power to internal barrier cards, monitor modules, and auxiliary electronics
|
Manufacture |
Bently Nevada |
|
Model Number |
114M5335-01 |
|
Ordering Number |
114M5335-01 |
|
Catalog |
3500/15 |
|
Description |
Low Voltage DC PIM |
|
Country Of Origin |
USA |
|
HS CODE |
8473309000 |
|
Dimension |
12*2.5*25 (CM) |
|
Weight |
1.4 kg |
Technical Parameters
Input Voltage: 18–32 V DC (nominal 24 V DC) for Bently Nevada 114M5335-01
Output Rails & Ratings:
24 V DC @ up to 8 A (to feed barrier and non-barrier cards)
12 V DC @ up to 2 A (for auxiliary logic and indicator circuits) in Bently Nevada 114M5335-01
Regulation: ± 5 % output tolerance over full load
Ripple & Noise: ≤ 100 mV p-p on both rails
Isolation:
Input-to-output: 2 kV DC
Between output rails: 500 V DC
Protections:
Overcurrent shutdown with auto-recovery
Short-circuit protection
Reverse-polarity input protection
Over-temperature thermal cutoff
Efficiency: ≥ 90 % at 50 % load
Indicators: Front-panel LEDs for each rail “OK” status and fault condition
Environmental Ratings:
Operating Temp: –20 °C to +70 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non-condensing for Bently Nevada 114M5335-01
Product function
DC Power Conversion: Takes facility DC input and produces regulated low-voltage DC outputs via Bently Nevada 114M5335-01 required by rack modules.
Distribution: Provides fused distribution to barrier cards via rack backplane connectors.
Monitoring & Diagnostics: Reports rail-health to the system interface from Bently Nevada 114M5335-01 for alarm logging.
Application Areas
Intrinsic-Safety Installations: Feeding internal barrier modules using Bently Nevada 114M5335-01 in Zone 2/Div 2 locations.
Standard Monitoring Racks: Supplying 24 V and 12 V to proximity/vibration modules.
Retrofit Projects: Replacing distributed DC supplies with centralized rack-mounted solutions.
Test & Calibration Benches: Providing stable DC rails with Bently Nevada 114M5335-01 for bench-testing.
