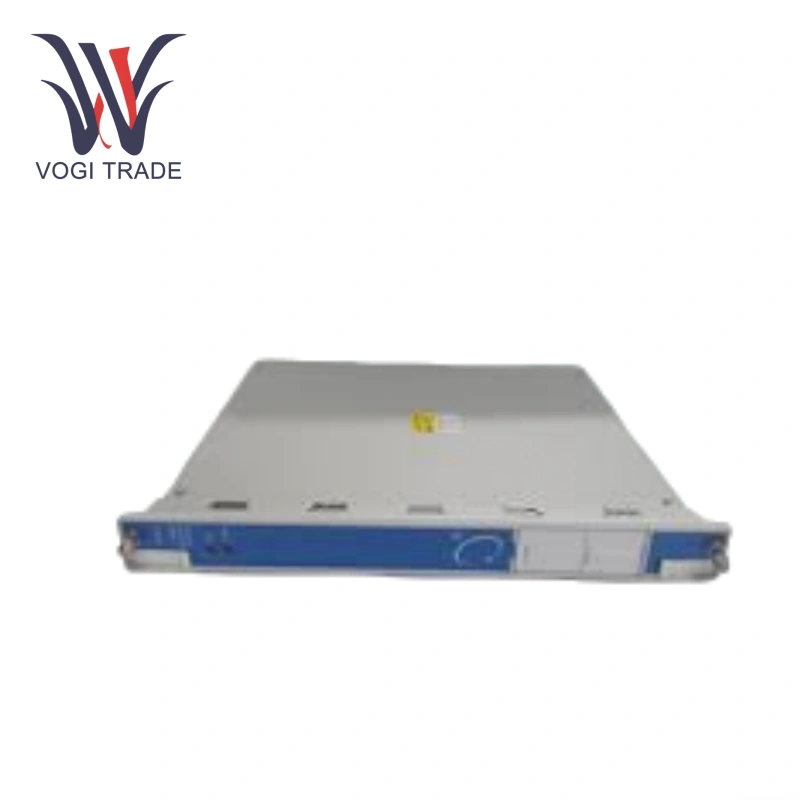

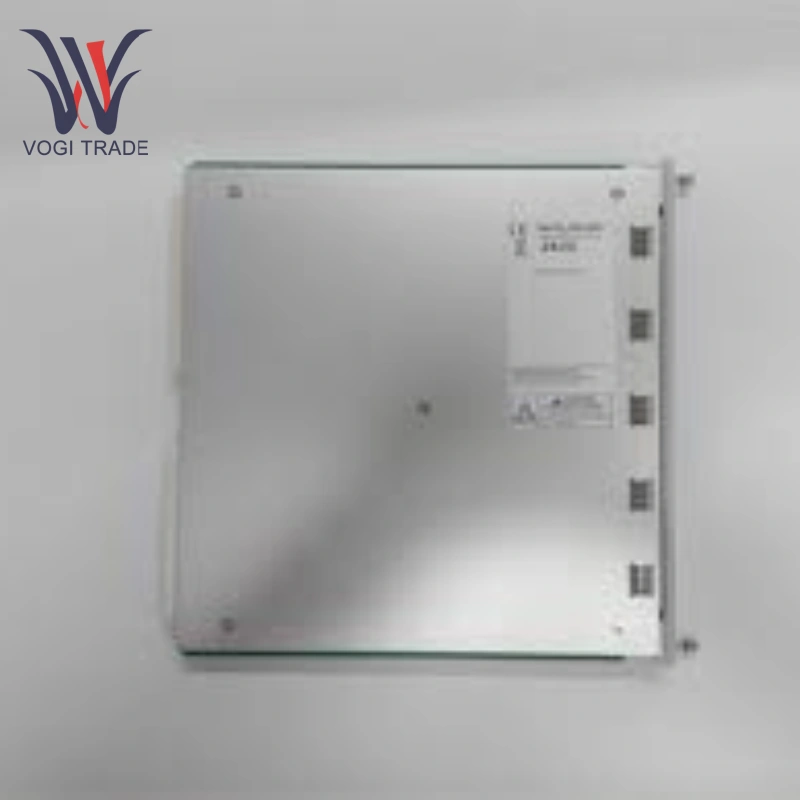

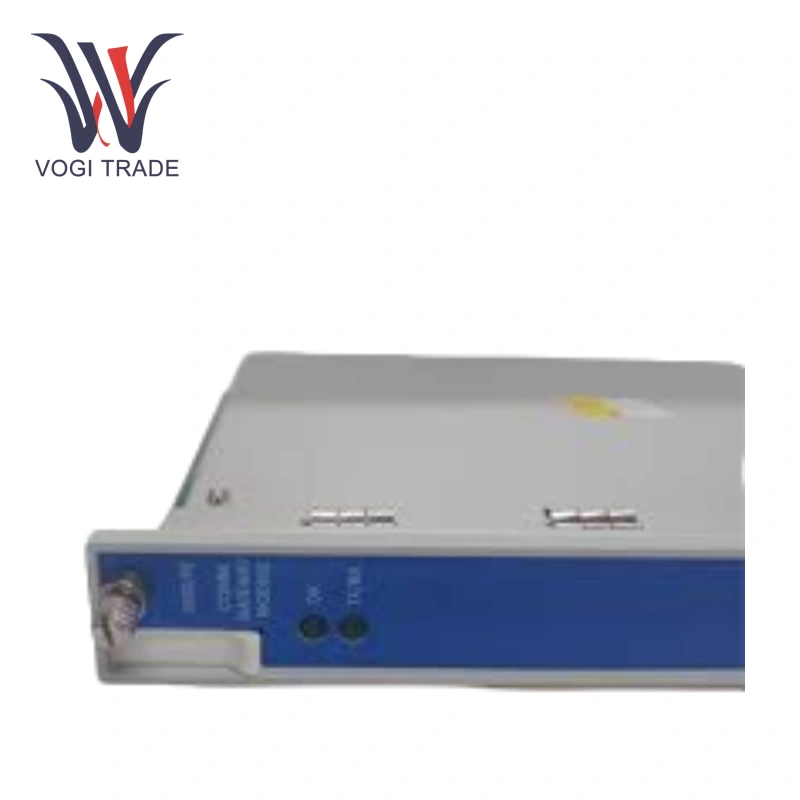

Brand: Bently Nevada Description: Hazardous Area Display Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 120M8155-01 is a display device designed specifically for hazardous areas, used to display data from industrial equipment condition monitoring systems. It works with various sensors and monitoring modules to clearly present key equipment operating parameters.
|
Manufacture |
Bently Nevada |
|
Model Number |
120M8155-01 |
|
Ordering Number |
120M8155-01 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8528591020 |
|
Dimension |
40*25*50CM |
|
Packing Dimension |
45*30*55CM |
|
Weight |
5 kg |
Product Overview
Screen size: 10.4-inch diagonal LCD
Backlight technology: LED
Resolution: 640 × 480 pixels (4:3 aspect ratio)
Brightness: 450 nits (cd/m²)
Brightness half-life: 50,000 hours
Video Interface: VGA
Touch Type: Resistive Touchscreen
Touch Interface: Serial
Control Settings: Front Panel Buttons
Mounting Method:
Panel Mount
19-inch EIA Rack Mount
Independent Mount
IP rating: IP54 (front dust and water splash protection only)
Operating temperature: -20°C to +65°C (-4°F to 149°F)
Storage temperature: -20°C to +70°C (-4°F to 158°F)
Ambient humidity: 10–85% (non-condensing)
Feature
Safety and Explosion-Proof: Bently Nevada 120M8155-01 with designed and manufactured in strict compliance with explosion-proof standards, it can be used safely in hazardous areas with flammable and explosive materials.
Environmentally Adaptable: Bently Nevada 120M8155-01 featuring a high level of protection, it is dustproof and waterproof, and boasts a wide operating temperature range, ensuring stable operation in both extreme heat and freezing temperatures.
Clear and Accurate Display: Bently Nevada 120M8155-01 clearly displays various equipment operating parameters, and, combined with high-precision sensors and monitoring modules, provides operators with precise data.
Application
Petrochemical Industry: Bently Nevada 120M8155-01 installed in hazardous areas of refineries and chemical plants, it displays the operating parameters of equipment such as pumps, compressors, and reactors.
Energy Extraction: Bently Nevada 120M8155-01 is suitable for hazardous areas such as coal mines and oil and gas fields, it displays the real-time operating status of fans, hoists, and drilling equipment.
Accessories and Compatibility
Specialized Accessories:
Rack Mount Kit: 122M3369-01
Panel Mount Kit: 122M3370-01
Standalone Mount Kit: 122M3371-01
Cable Compatibility:
Power Cable: 119M6509-01 (10 ft)
VGA Cable: 161087-10-00 (10 ft)
Serial Cable: 148638-01 (10 ft)
System Integration
Compatibility:

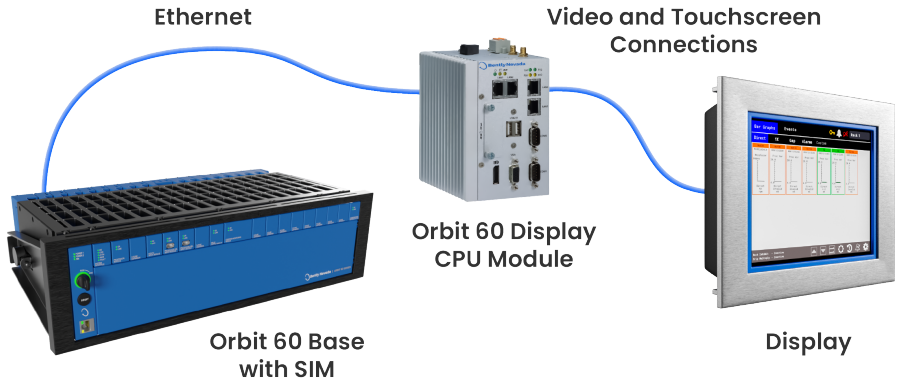

Connects to the ORBIT 60 system via Ethernet, supporting the display of direct measurement values, 1X vibration, gap values, and other data.
Can be integrated into a local or remote control room or at the equipment.
Industrial Computer Support:
Requires a dedicated industrial computer (such as model 142M4200) and connected via VGA or serial port.
