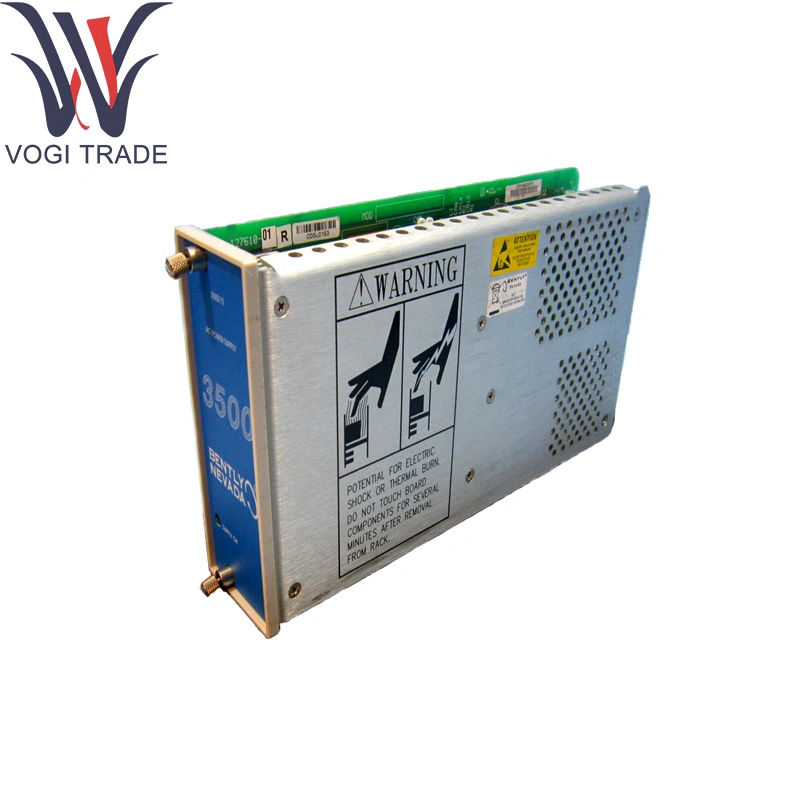

Brand: Bently Nevada Description: 127610-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 11 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 127610-01 Accepts facility AC mains and provides the low-voltage DC and AC rails required by rack-mounted barrier cards, monitor modules, and auxiliary circuits.
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/15-01-01-00 |
|
Ordering Number |
127610-01 |
|
Catalog |
3500 |
|
Description |
ac Power Supply Module |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
16*16*12 (CM) |
|
Weight |
1.6 kg |
Ordering Information
3500/15 Power Supply Module
3500/15 - - AA- BB- CC
A: Power Supply Type (Top Slot)
0 1 Low Voltage ac (85 to 132Vac rms)
0 2 High Voltage ac (175 to 264Vac rms)
0 3 High Voltage dc (88 to 140Vdc)
0 4 Low Voltage dc (20 to 30Vdc)
B: Power Supply Type (Bottom Slot)
0 0 No supply (use when only one supply is required)
0 1 Low Voltage ac (85 to 132 Vac rms)
0 2 High Voltage ac (175 to 264 Vac rms)
0 3 High Voltage dc (88 to 140 Vdc)
0 4 Low Voltage dc (20 to 30 Vdc)
C: Agency Approval Option
0 0 None
0 1 CSA/NRTL/C
0 2 ATEX/CSA (Class 1, Zone 2)
Technical Parameters
Input Voltage: 90–264 VAC, 47–63 Hz (auto-sensing) for Bently Nevada 127610-01
Output Rails & Ratings:
28 V DC @ up to 5 A (primary rack bus)
12 V AC @ up to 1 A (auxiliary loads)
Regulation: ± 5 % for both rails under full load
Isolation:
Primary-to-secondary: 2 kV AC in Bently Nevada 127610-01
Secondary-to-chassis: 1 kV AC
Protections:
Inrush-current limiting (soft-start)
Overload/short-circuit shutdown with auto-reset
Over-temperature thermal cutoff
Efficiency: ≥ 80 % at 50 % load
Indicators: Front-panel LEDs for “AC OK”, “28 V OK”, “12 V OK”, and “Fault”
Environmental:
Operating Temp: –20 °C to +65 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH non-condensing
Product function
Bently Nevada 127610-01 transforms incoming AC mains into regulated DC/AC rails for rack backplane and auxiliary devices. Delivers protected power to modules via backplane connectors. Continuously monitors rail status and alerts system interface of faults.
Application Areas
Turbine & Compressor Control Panels: Centralized rack power with Bently Nevada 127610-01 for protection modules.
OEM Skid-Mounted Systems: Integrated power in packaged skids using Bently Nevada 127610-01.
Hazardous-Area Enclosures: Zone 2/Div 2 panels requiring DC/AC rails for barrier cards.
Retrofit Projects: Replacing transformers via Bently Nevada 127610-01.
Test & Calibration Benches: Bench power for 3500 modules featuring Bently Nevada 127610-01
