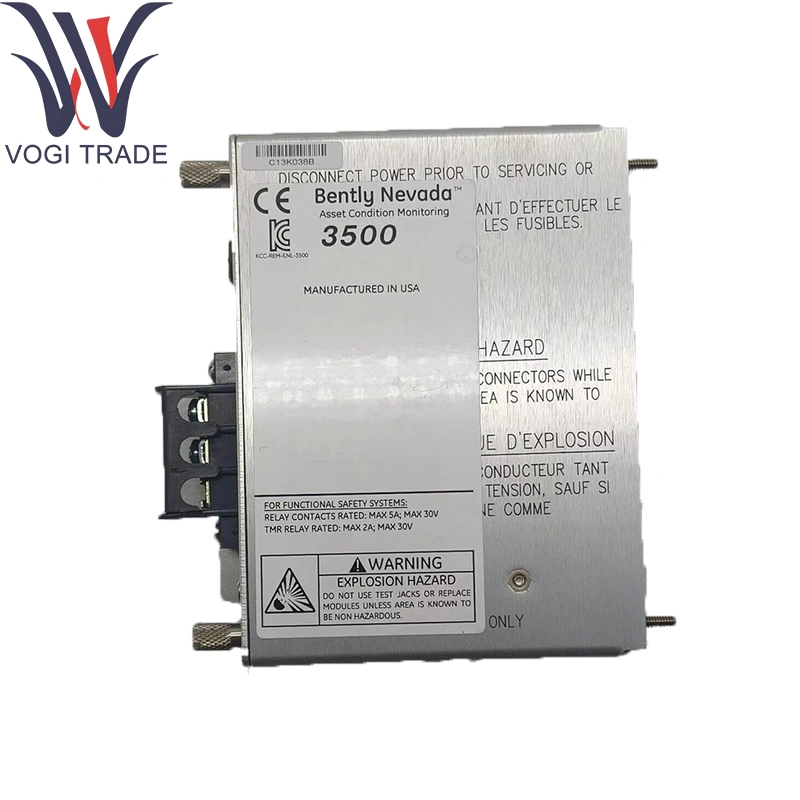

Brand: Bently Nevada Description: 133300-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 11 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 133300-01 Provides centralized low-voltage DC power distribution within Bently Nevada 3500 and 3700 Series rack systems.
|
Manufacture |
Bently Nevada |
|
Model Number |
133300-01 |
|
Ordering Number |
133300-01 |
|
Catalog |
3500/15 |
|
Description |
Low Voltage DC Power Input Module |
|
Country Of Origin |
USA |
|
HS CODE |
7326909000 |
|
Dimension |
12*5.8*25 (CM) |
|
Weight |
0.4 kg |
Ordering Information
3500/15 Power Supply Module
3500/15 -AA-BB-CC
A: Power Supply Type (Top Slot)
|
Code |
Description |
| 03 |
Legacy High Voltage DC (88 to 140 Vdc) |
| 04 |
Legacy Low Voltage DC (20 to 30 Vdc) |
| 05 |
Universal AC Voltage (85 to 264 Vac rms) |
| 06 |
High Voltage DC Supply |
| 07 |
Low Voltage DC Supply |
|
Code |
Description |
| 00 |
No Supply (Used when no supply is required) |
| 03 |
Legacy High Voltage DC (88 to 140 Vdc) |
| 04 |
Legacy Low Voltage DC (20 to 30 Vdc) |
| 05 |
Universal AC Voltage (85 to 264 Vac rms) |
| 06 |
High Voltage DC Supply |
| 07 |
Low Voltage DC Supply |
|
Code |
Description |
| 00 |
None |
| 01 |
CSA / NRTL / C (Class 1, Division 2) |
| 02 |
ATEX / IECEx / CSA (Class 1, Zone 2) |
Technical Parameters
Input Voltage: 18–32 V DC (nominal 24 V) via rack backplane connector
Output Voltage & Rating:
Regulated 24 V DC @ 6 A maximum from Bently Nevada 133300-01
Regulation: ± 5 % over full input and load range
Ripple & Noise: < 50 mV p-p (0–20 MHz)
Efficiency: ≥ 92 % at 50 % load
Protections:
Overcurrent shutdown with automatic reset
Reverse-polarity input protection
Over-temperature thermal cutoff in Bently Nevada 133300-01 with auto-recover
Isolation:
Input-to-chassis: 2 kV DC
Output-to-chassis: 1 kV DC
Indicators: Front-panel LEDs for “Power OK” and “Fault”
Environmental Ratings:
Operating Temp: –20 °C to +65 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non-condensing
Product function
DC Power Conditioning: Accepts raw DC feed and provides a clean, regulated 24 V DC bus through Bently Nevada 133300-01 to downstream modules.
Distribution: Routes protected DC power through the rack backplane, simplifying wiring.
Monitoring & Diagnostics: Continuously supervises output health of Bently Nevada 133300-01 and reports conditions to the system interface.
Application Areas
Intrinsic-Safety Systems: Feeding internal barrier modules using Bently Nevada 133300-01 in Zone 2/Div 2 areas.
Standard Monitoring Racks: Powering proximity/vibration modules in control panels.
Retrofit Installations: Upgrading legacy panels by replacing external power bricks.
Test & Calibration Benches: Providing a stable 24 V DC source via Bently Nevada 133300-01 for bench testing.
