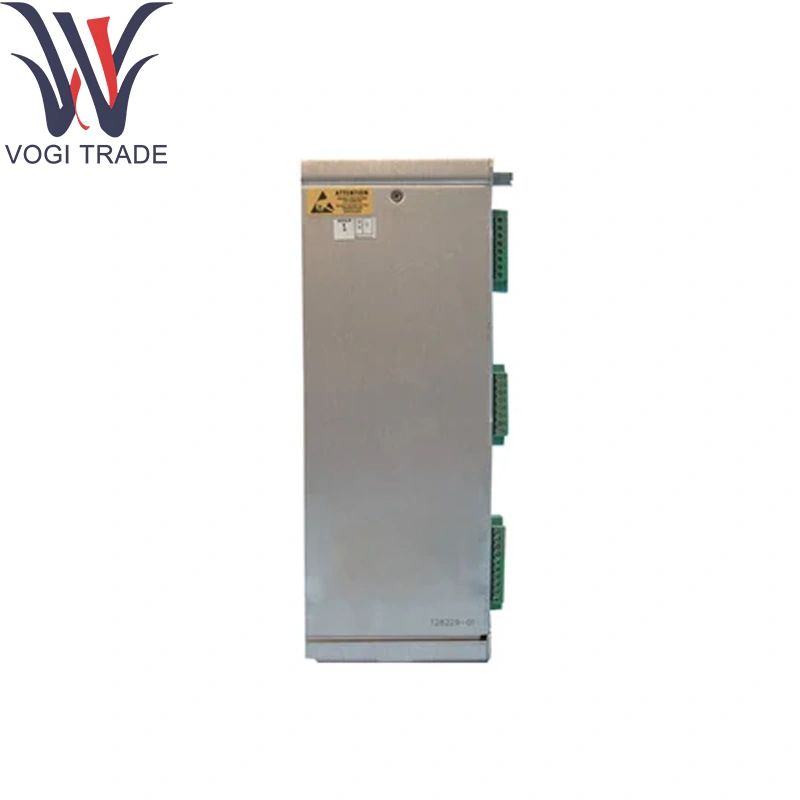

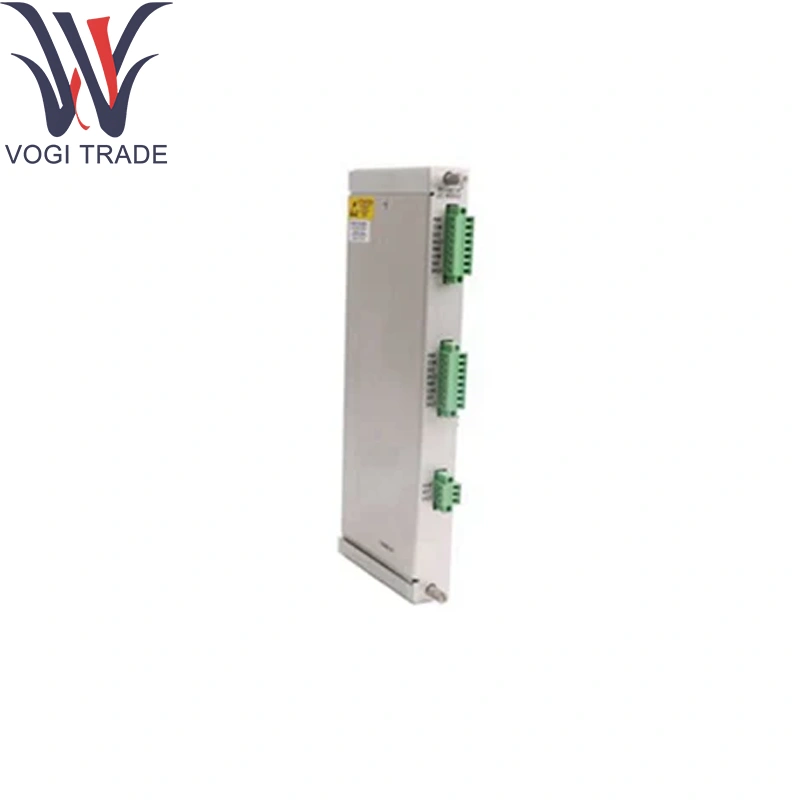

Brand: Bently Nevada Description: 133819-02 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 133819-02 Provides six independent temperature-monitoring channels in a single ¼-rack module, accepting both 4-wire RTDs (PT100/PT1000) and isolated-tip thermocouples (Types E, J, K, T)
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/61-01-00 |
|
Ordering Number |
133819-02 |
|
Catalog |
3500 |
|
Description |
RTD/TC Non-Isolated I/O Module Internal Terminations |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*24 (CM) |
|
Weight |
1.6 kg |
Ordering Information
For the detailed listing of country and product specific approvals, refer to the Approvals Quick Reference Guide (108M1756) available from Bently.com.
Recorder Outputs
3500/61-AA-BB
A:I/O Module Type
0 1 RTD/TC Non-isolated I/O Module Internal Terminations
0 2 RTD/TC Non-isolated I/O Module External Terminations
0 3 TC Isolated I/O Module Internal Terminations
0 4 TC Isolated I/O Module External Terminations
0 5 RTD/TC Non-isolated I/O Module with Internal Barriers
B:Agency Approval Option
0 0 None
0 1 CSA/NRTL/C (Class 1, Div 2)
0 2 ATEX/ IECEx/ CSA (Class 1, Zone 2)
Technical Parameters
Channels: 6 inputs, individually field-configurable for Bently Nevada 133819-02 as:
RTD: 4-wire (PT100/PT1000) with 1 mA excitation
TC: Isolated-tip (Types E/J/K/T) with on-board cold-junction compensation
RTD Range & Accuracy: –200 °C to +850 °C, ± 0.1 °C
Thermocouple Range & Accuracy: –250 °C to +1372 °C (type-dependent), ± 0.25 °C (or ± 0.1 % span)
Resolution: 16-bit ΔΣ A/D conversion (0.1 °C steps)
Sampling Rate: 2 samples/sec per channel (simultaneous)
Recorder Outputs: 6 isolated 0–10 V outputs (up to 10 mA) for external chart recorders
Alarm Logic: Compares each channel to programmable high/low limits; flags alarms on digital bus and via front-panel LEDs
Input Protection: Overvoltage clamp to ± 35 V; reverse-polarity safe
Isolation: Channel-to-chassis: 1 kV in Bently Nevada 133819-02
Power: 24 V DC via backplane; ≤ 5 W
Environmental: 0 °C–70 °C operating; –40 °C–85 °C storage; up to 95 % RH non-condensing
Product function
Signal Conditioning: Excites and linearizes RTD/thermocouple loops via Bently Nevada 133819-02 with embedded precision terminations.
Digitization & Comparison: Converts analog signals to digital data and compares against setpoints.
Recorder Interface: Provides simultaneous analog recorder outputs for each channel.
Diagnostics: Monitors sensor-loop integrity and self-health; reports faults to system interface.
Application Areas
Turbine & Compressor Bearing Temperatures: Continuous surveillance using Bently Nevada 133819-02 of bearing housings.
Process-Fluid Monitoring: Tracking inlet/outlet temperatures across heat exchangers.
Gearbox & Seal Housings: Multi-point temperature mapping with Bently Nevada 133819-02 for gearbox health.
Hazardous-Area Panels: Zone 2/Div 2 installations requiring on-board isolation.
Chart Recorder Integration: Facilities needing hardcopy logs featuring Bently Nevada 133819-02.
