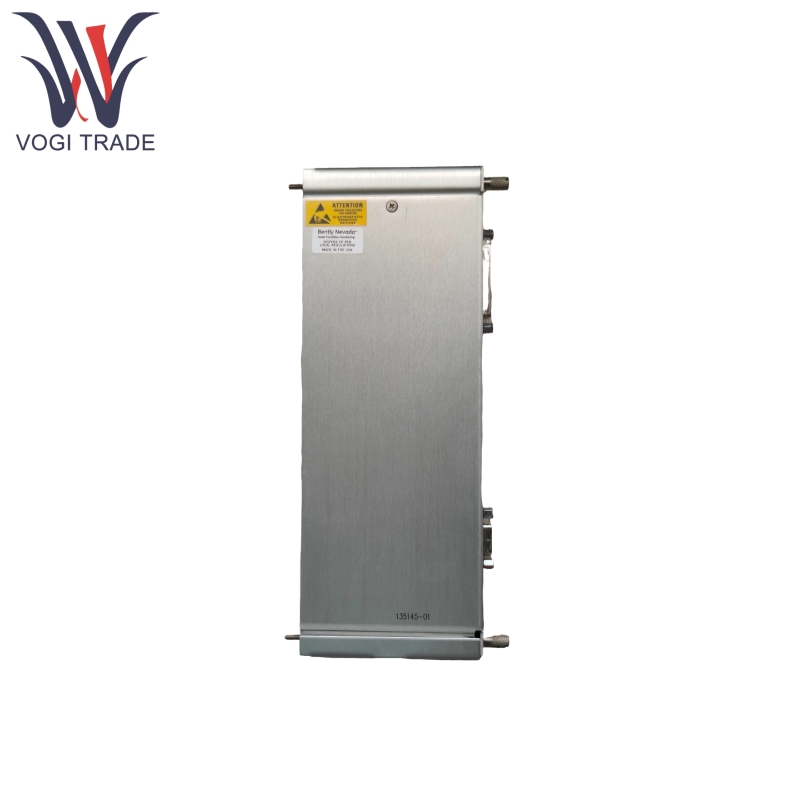

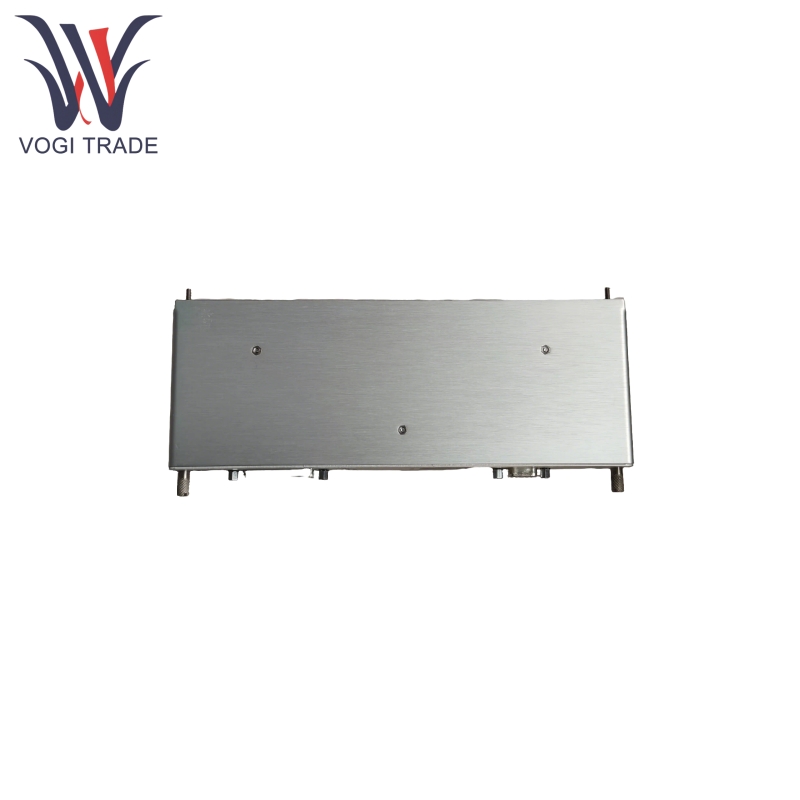

Brand: Bently Nevada Description: Position I/O Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 135145-01 supports a variety of position sensor inputs, including eddy current sensors, rotary position sensors, DC/AC linear variable differential transformers and rotary potentiometers. Its core function is to condition, amplify and digitize the sensor signals and compare them with preset alarm thresholds for machinery protection and condition monitoring.
|
Manufacture |
Bently Nevada |
|
Model Number |
135145-01 |
|
Ordering Number |
135145-01 |
|
Catalog |
- |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8538900000 |
|
Dimension |
24*16*8cm |
|
Weight |
0.4kg |
Product Features
Bently Nevada 135145-01 supports eddy current sensors, LVDT, RPT, etc., adapting to different measurement needs.
Bently Nevada 135145-01 has built-in signal filtering, amplification and linearization to ensure high-precision output.
Bently Nevada 135145-01 can set warning and danger thresholds independently for each channel, and supports dual-variable logic combination to trigger shutdown protection.
Bently Nevada 135145-01 provides voltage signals proportional to the measured value and can be directly connected to DCS or PLC systems.
Bently Nevada 135145-01 supports triple modular redundancy (TMR) configuration to enhance system reliability.
Product Using Principle
Bently Nevada 135145-01 sensors convert mechanical displacements into electrical signals, such as impedance changes in eddy current sensors and differential voltages in LVDTs.
It filters, amplifies and linearizes the signal to generate a standard voltage signal proportional to the displacement.
It monitors the value in real time against a preset alarm value and triggers the corresponding relay action.
The processed data is transmitted to the operating station or DCS via the 3500 rack bus, supporting protocols such as OPC and Modbus.
Product Parameter
The following detail is for Bently Nevada 135145-01.
Eddy current sensor input impedance: 10 kΩ
LVDT input impedance: 1 MΩ (DC) or 137 kΩ (AC)
Rotary potentiometer input impedance: 200 kΩ
Analog output: -10V to +10V DC, with a load capacity of 0-600 Ω
Digital output: Transmitted to the upper computer via the 3500 rack bus
Accuracy: ±0.33% of full scale
Resolution: 0.3662 μA per bit
Temperature: -30°C to +65°C (operation), -40°C to +85°C (storage)
Humidity: 95% non-condensing, compliant with EN 50081-2 electromagnetic compatibility standards
