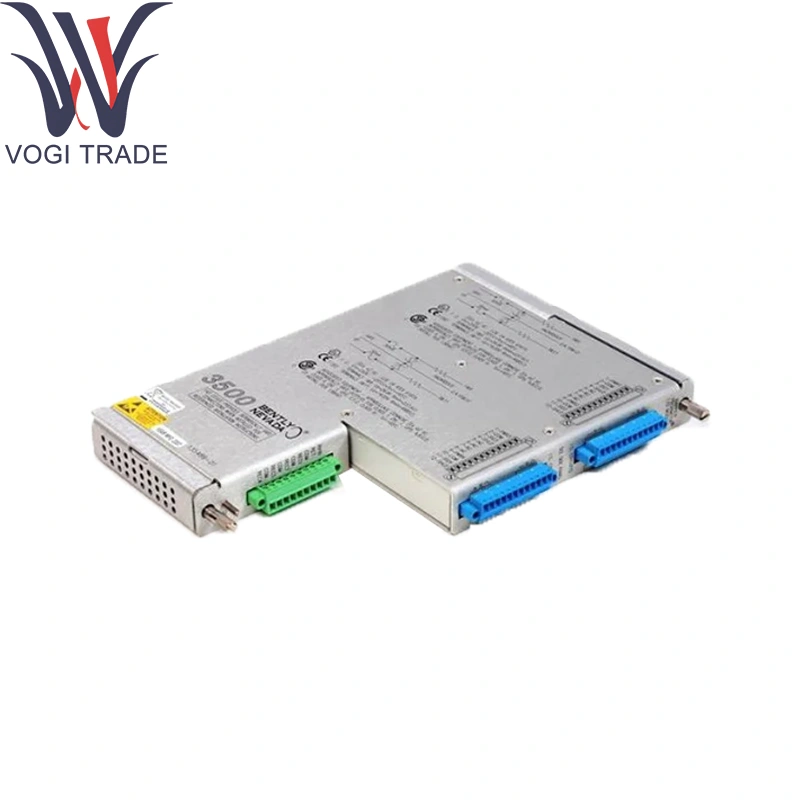

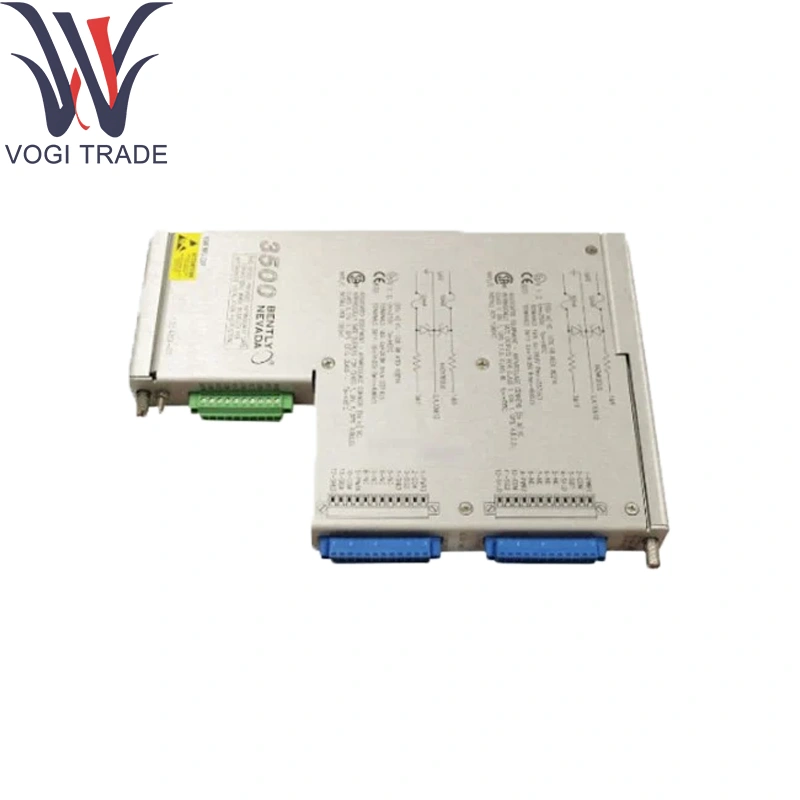

Brand: Bently Nevada Description: 135489-03 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 12 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 135489-03 Installed in a 3500/00 rack, the 135489-03 module conditions up to four eddy-current proximity-probe or vibration-transducer signals in hazardous (Zone 2/Division 2) areas.
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/40M-06-00 |
|
Ordering Number |
135489-03 |
|
Catalog |
3500 |
|
Description |
I/O Module with internal Barriers |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*12*2.4 (CM) |
|
Weight |
0.46 kg |
Ordering Information
Product Description
3500/42M-AA-BB
A: I/O Module Type
See I/O Module Types on page 19.
B: Hazardous Area Approval Option
00
None
01
CSA / NRTL / C (Class 1, Division 2)
02
ATEX / IECEx / CSA (Class 1, Zone 2)
Technical Parameters
Channels: 4 isolated analog inputs (proximity or IEPE vibration) of the Bently Nevada 135489-03
Intrinsic-Safety Barriers: Internal zener-diode/barrier network per channel, certified for Class I, Zone 2/Div 2
Probe Excitation: –23 V DC @ ≤ 12 mA per channel (barrier-isolated) in Bently Nevada 135489-03
Input Range: 0–50 V p-p eddy-current probe output or 4–20 mA IEPE input
Signal Conditioning:
Programmable gain (×1 to ×10)
Field-selectable band-pass filters (1×, 2×, broadband)
Built-in input termination (1 kΩ for probes; 120 Ω for IEPE)
Isolation: 1 kV channel-to-chassis (barrier secondary to chassis ground)
Power Consumption: 24 V DC (18–32 V DC), ≤ 4 W total
Environmental:
Operating Temp: 0 °C to +70 °C
Storage Temp: –40 °C to +85 °C
Humidity: ≤ 95 % RH, non-condensing for Bently Nevada 135489-03
Product function
Intrinsically-Safe Signal Conditioning: Applies excitation, barrier isolation, filtering, and linearization through the Bently Nevada 135489-03 to sensor outputs.
Hazard-Area Simplification: Eliminates the need for external barrier enclosures by integrating them on-board in Bently Nevada 135489-03, reducing panel space.
Digital Data Output: Converts conditioned signals into time-stamped digital data broadcast over the 3500 backplane bus.
Core Supporting Modules
3500/00 Rack Chassis: Provides power, backplane bus, and mechanical support for Bently Nevada 135489-03
3500/01 System Interface Module: Aggregates digital I/O data
3500/03 Relay Output Module: Drives form-C relay outputs
3500/04 Analog-Output Module: Converts monitored values
3500/65 Loss-of-Signal Module: Detects probe or cable failures
