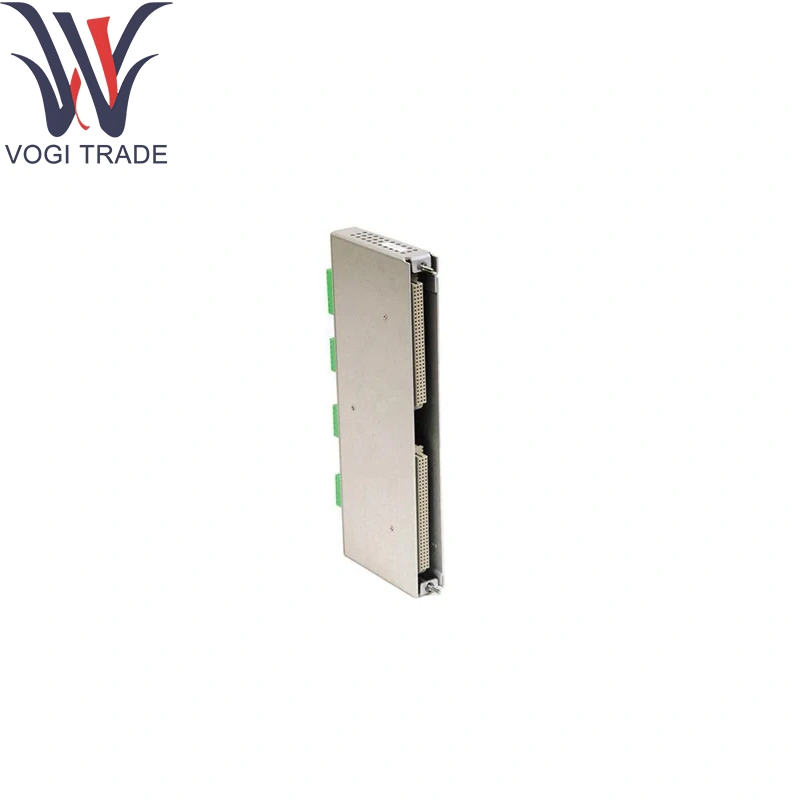

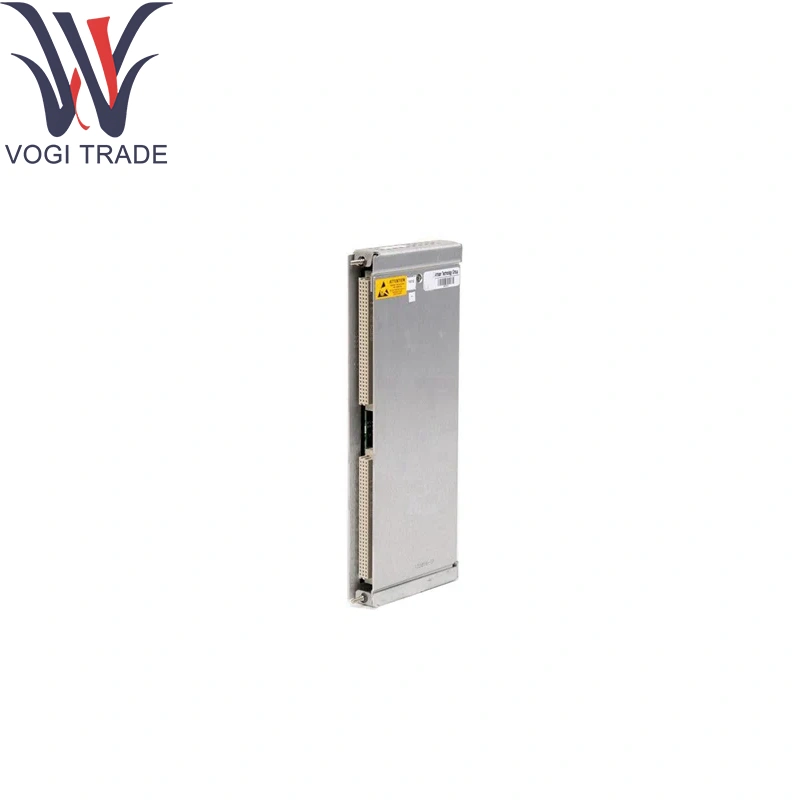

Brand: Bently Nevada Description: 135813-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 135813-01 Aggregates protection and condition-monitoring data from 3500 rack modules and provides local annunciation and remote communications.
|
Manufacture |
Bently Nevada |
|
Model Number |
135813-01 |
|
Ordering Number |
135813-01 |
|
Catalog |
3500/93 |
|
Description |
Display Interface I/O Module |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*10*3 (CM) |
|
Weight |
1.2 kg |
Ordering Information
System Display
3500/93-AKX-BXN-CXX-DXX,
A: Mounting Option:
01 System Face Mount [DIM must be
installed in slot 15, 0 module
not included)
02 19-inch EIA Rack Mount (VO
module included)
03 Panel Mount /0 module
included
04 Independent Mount [Stainless
Steel Housing, YO module
included
05 Back-lghted System Face Mount
(01M must be installed in slot
15, /O module included,
external power supply
required)
06 Back-lighted 19-inch EIA Rack
Mount I/O module included
external power supply
required)
07 Back-lighted Panel Mount (VO
module included, external
power supply required)
08 Back-lighted Independent Mount
(Stainless Steel Housing, /O
module included, external
power supply required)
B: Mounting Distance/Cable Type:
00 NoCable Required
01 10Foot (3 metres| Coble [PVC]
02 50 Foot (15.24 metres) Cable
(evo
03 50Foot (15.24 metres) Cable
{Teflon}
04 100 Foot [30.5 metres) Cable
(Pvc)
05 100 Foot [30.5 metres) Cable
(Teflon)
C: External Power Supply:
00 None
01 115 volta
02 230 Voltac
03 ATEXExternal Supply
D: Agency Approval Option:
00 None
01 CSAINRTUIC
02 ATEX/CSA(Closs 1, Zone 2)
Technical Parameters
Backplane Input: Digital bus carrying status, alarm, and trend tags
Discrete Outputs:
16 × Form A (SPST) relay contacts in Bently Nevada 135813-01
Rating: 1 A @ 30 V DC / 0.5 A @ 125 V AC
Serial Port:
1 × RS-485 (Modbus RTU) for Bently Nevada 135813-01
Baud: 1200–115200, 8-N-1, half-duplex
Indicators: LEDs for health, bus-OK, and TX activity
Isolation: 1 kV between relay outputs and logic
Power: 24 V DC via backplane, ≤ 2 W consumption for Bently Nevada 135813-01
Environment: 0 °C – 70 °C; ≤ 95 % RH non-condensing
Product function
Data Aggregation: Collects real-time alarms/trends from rack modules via Bently Nevada 135813-01.
Local Annunciation: Drives up to 16 relay-based lamp/horn outputs.
Remote Link: Provides serial data stream for DCS/SCADA integration.
Self-Test: Monitors communication and fault states, signaling via relays/LEDs.
Application Areas
Control-Room Annunciators: Turbine/compressor trip alerts using Bently Nevada 135813-01
Safety-Shutdown Interfaces: ESD/horn/strobe system integration
DCS/SCADA Gateways: Modbus RTU serial output
Portable Diagnostics: Rack-to-handheld display links
OEM Panels: Integrated indication in skid-mounted systems with Bently Nevada 135813-01
