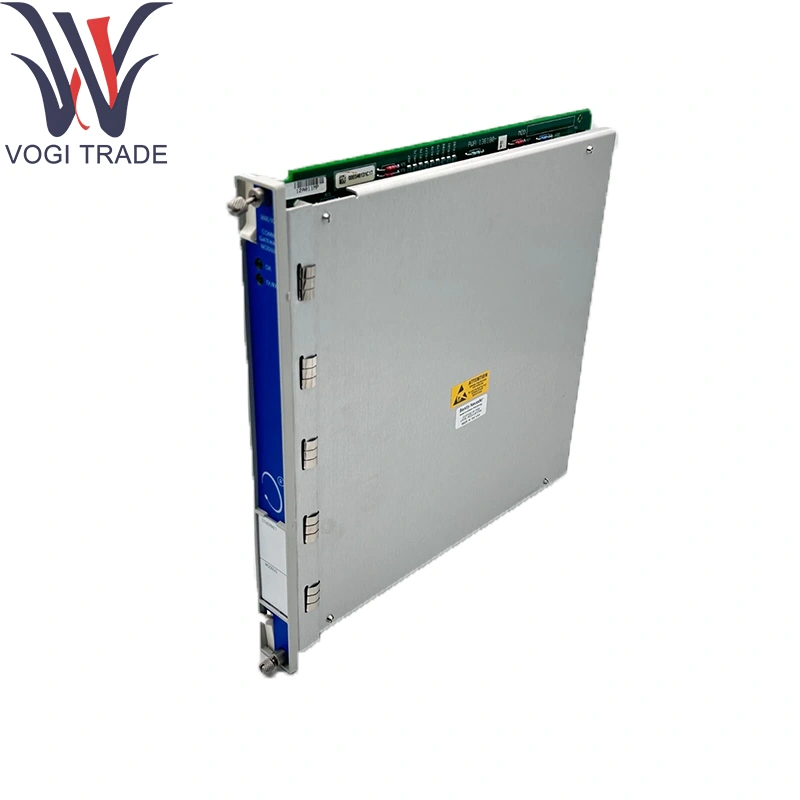

Brand: Bently Nevada Description: 136180-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 16 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 136180-01 Provides seamless protocol conversion and data routing between the 3500 Series machinery-monitoring bus and external control or asset-management networks.
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/92-04-01-00 |
|
Ordering Number |
136180-01 |
|
Catalog |
3500 |
|
Description |
Communication Gateway module |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*9.91 (CM) |
|
Weight |
0.44 kg |
Ordering Information
3500/92 Communication Gateway 3500/92-AA-BB-CC
|
Field |
Option Code |
Description |
|
A: I/O Module Type |
01 |
Modbus RS232/RS422 I/O Module |
|
|
02 |
Modbus RS485 I/O Module |
|
|
03 |
Ethernet/RS232 Modbus I/O Module |
|
|
04 |
Ethernet/RS485 Modbus I/O Module |
|
B: Memory Type |
01 |
Low Memory |
|
C: Agency Approval Option |
00 |
None |
|
|
01 |
CSA/NRTL/C |
|
|
02 |
CSA/ATEX/IECEx |
Technical Parameters
Backplane Interface: Dual-channel 3500 digital bus connectors (50-pin) for Bently Nevada 136180-01
Ethernet Ports:
2 × 10/100Base-T RJ-45 (redundant link support)
Serial Ports:
2 × RS-485 (Modbus RTU) on pluggable terminal block
Protocols Supported:
Bently Nevada 3500 bus tunneling
Modbus RTU/TCP, OPC UA, EtherNet/IP
Performance:
Aggregate throughput up to 100 kbps on serial, 100 Mbps on Ethernet
Deterministic I/O scan latency ≤ 5 ms using Bently Nevada 136180-01
Memory & CPU:
64 MB SDRAM for buffering
16 MB Flash for firmware/configuration
Power:
24 V DC via rack backplane (18–32 V DC), 0.5 A max
Environmental Ratings:
Operating Temp: 0 °C to +70 °C
Storage Temp: –40 °C to +85 °C
Humidity: ≤ 95 % RH, non-condensing
Product function
Protocol Bridging: Converts and maps 3500-bus data frames into industry-standard network protocols via Bently Nevada 136180-01.
Data Aggregation: Buffers and aggregates sensor and diagnostic data for bulk transfer without overloading the monitoring bus.
Network Redundancy: Dual-port Ethernet with link-failover for high-availability architectures.
Configuration Management: Web-UI and serial-console tools in Bently Nevada 136180-01 for address mapping and security settings.
Application Areas
Distributed Control Systems: Feeding machinery-health tags into DCS/SCADA through Bently Nevada 136180-01 for centralized alarming.
Asset-Management Platforms: Integrating with condition-monitoring historians via OPC UA.
Remote Monitoring Networks: Securely tunneling 3500 data over plant-wide Ethernet links.
Legacy Integration: Bridging older 3500 installations into modern IIoT frameworks with Bently Nevada 136180-01 without replacing field racks.
