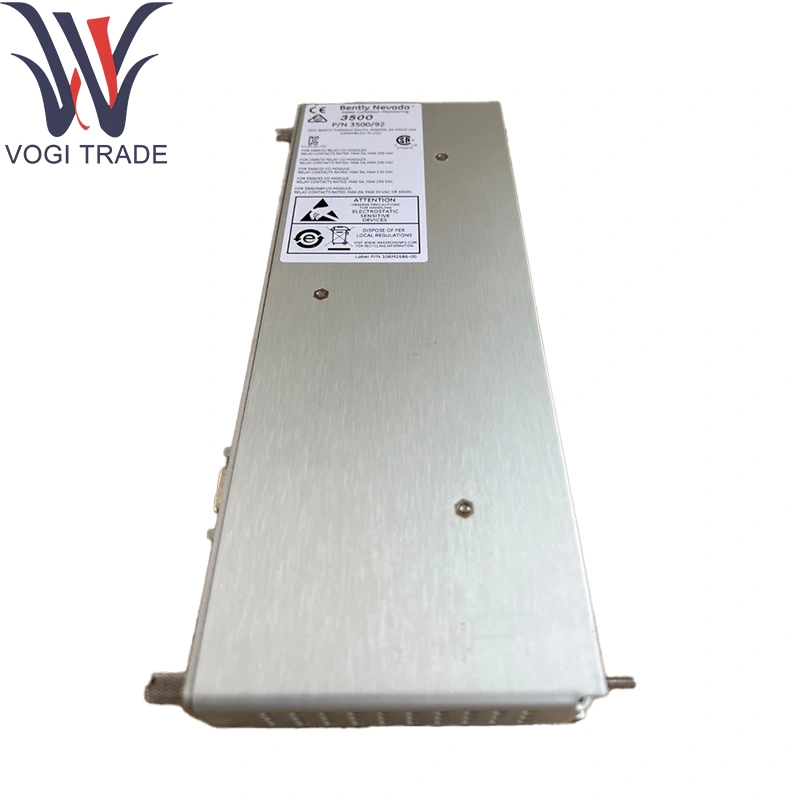

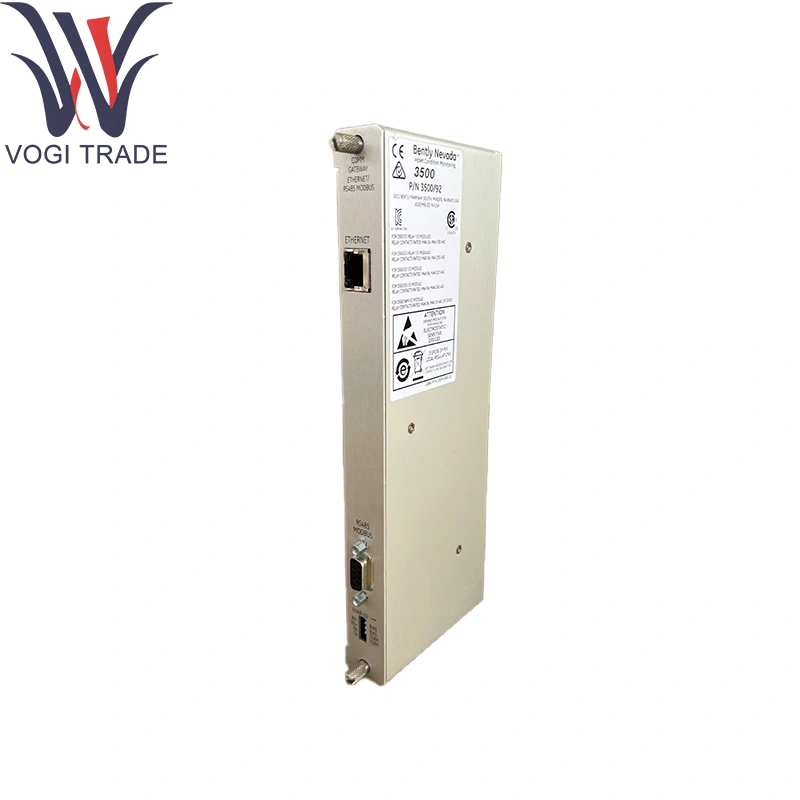

Brand: Bently Nevada Description: 136188-02 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 136188-02 Provides a versatile gateway in 3500/3700 Series racks to expose machinery-health data over Modbus RTU (RS-485) and Modbus TCP (Ethernet).
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/92 |
|
Ordering Number |
136188-02 |
|
Catalog |
3500/92 |
|
Description |
Ethernet/RS485 Modbus I/O Module |
|
Country Of Origin |
USA |
|
HS CODE |
7326909000 |
|
Dimension |
33*8*4 (CM) |
|
Weight |
1.4 kg |
Ordering Information
3500/92 Communication Gateway
3500/92-AA-BB-CC
A: I/O Module Type
01 ModbusRS232/RS422 I/O Module
02 ModbusRS485 I/O Module
03 Ethernet/RS232 Modbus I/O Module
04 Ethernet/RS485 Modbus I/O Module
B: Memory Type
01 Low Memory
C: Agency Approval Option
00 None
01 CSA/NRTL/C 02 CSA/ATEX/IECEx
Technical Parameters
Backplane Interface: Dual 50-pin connectors to 3500 digital bus for Bently Nevada 136188-02
Ethernet Port: 1 × 10/100Base-T RJ-45 (Modbus TCP)
Serial Port: 1 × RS-485 (Modbus RTU) on removable terminal block
Supported Protocols:
Modbus RTU Slave (ASCII optional)
Modbus TCP Server
Tag Capacity: Up to 1,024 Modbus registers (holding/input)
Performance:
Ethernet throughput up to 100 Mbps
Serial baud rates 1,200–115,200 bps
Poll-response latency < 10 ms typical in Bently Nevada 136188-02
Security & Diagnostics:
Password-protected configuration via web-UI
SNMP trap support for link/fault alarms
Backplane-health and network-status LEDs
Power: 24 V DC via backplane (18–32 V DC), ≤ 0.5 A
Isolation: 1 kV galvanic isolation on RS-485 and Ethernet ports
Environmental:
Operating Temp: 0 °C to +70 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non-condensing
Product function
Protocol Bridging: Maps 3500-bus data tags to Modbus registers via Bently Nevada 136188-02 for TCP/RTU clients.
Data Aggregation: Buffers real-time measurements, alarms, and diagnostics for external polling.
Dual-Port Networking: Supports simultaneous Ethernet/serial host connections.
Health Monitoring: Reports link status and backplane faults via LEDs/SNMP traps.
Configurable Register Mapping: Web-UI/CLI for custom tag assignments using Bently Nevada 136188-02.
Application Areas
DCS/PLC Integration: Feeding vibration/temperature data with Bently Nevada 136188-02 into control systems.
Remote Monitoring: Connecting 3500 data to SCADA HMIs over Modbus TCP.
Legacy Systems: Bridging modern racks to Modbus RTU infrastructure.
Condition-Monitoring Dashboards: Aggregating machine-health metrics via Bently Nevada 136188-02.
OEM Skid Packages: Embedding standardized gateways in machinery using Bently Nevada 136188-02.
